EIOT Cloud Platform

The EIoT platform based on the Internet of Things data center, implements unified upstream and downstream data standards, and provides a platform with Internet of Things energy data services for Internet users. Users only need to purchase the Acrel IoT instrument and power sensor, select a gateway, and install the scan code using their mobile phones and computers to obtain the required industry data services.

Application:

Substation, Schools, Factories, Commercial Buildings, Hospitals, Smart Cities, Telecommunications Base Station, etc.

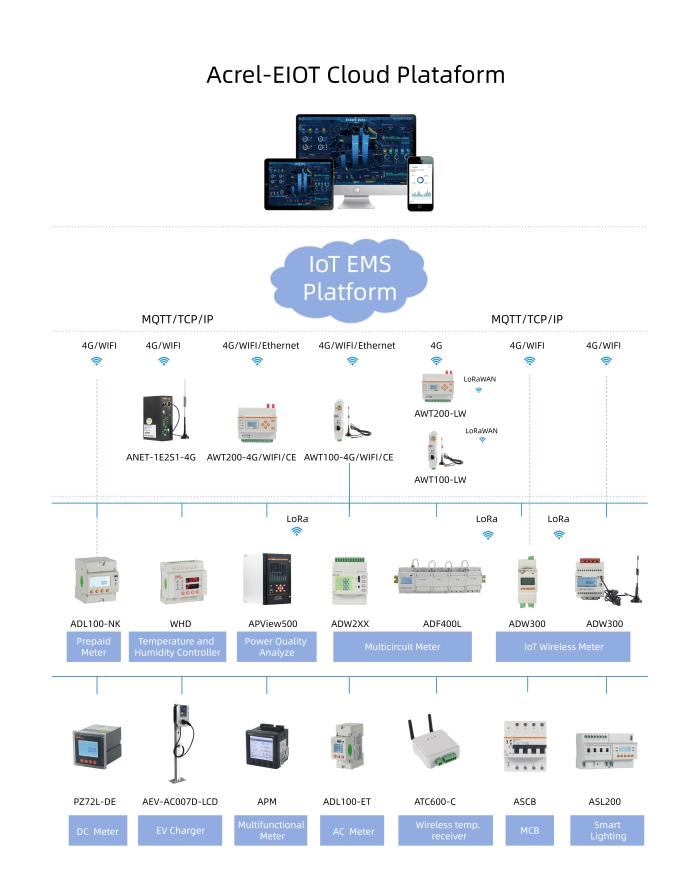

Structure:

Principal functions:

①Alarm analysis：

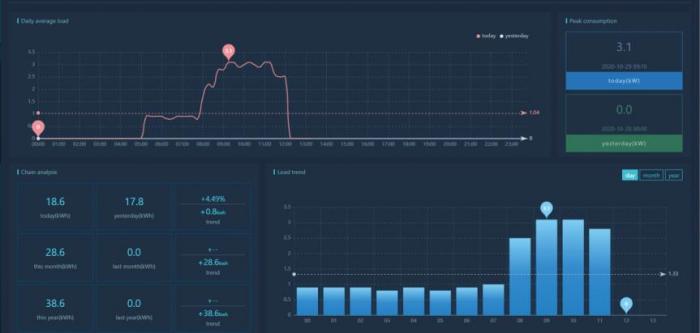

②Energy situation:

③

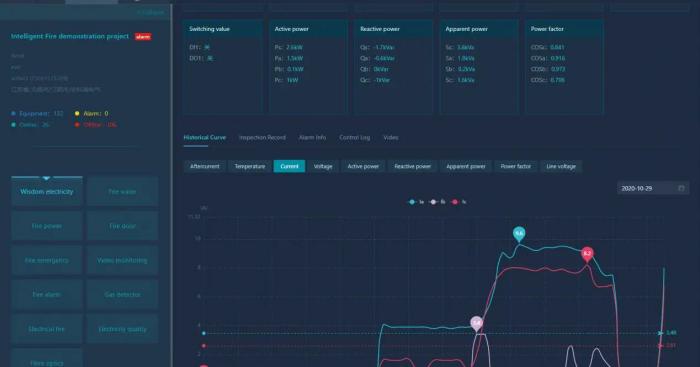

Details of electrical parameters:

④Equipment status:

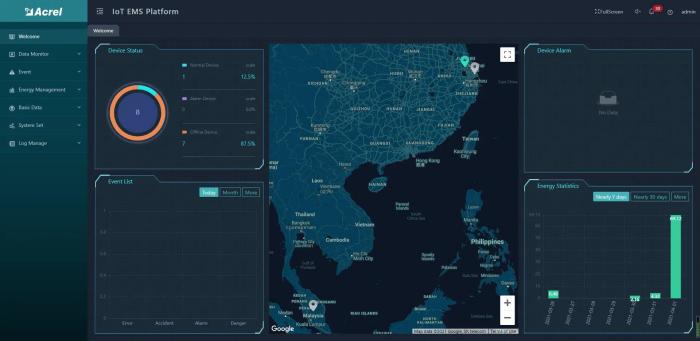

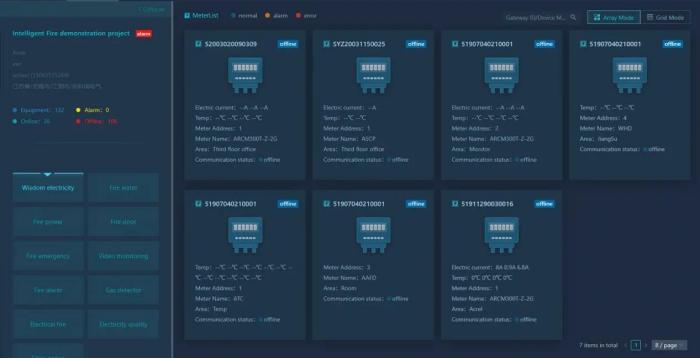

APP/Platform:

①Scan the QR code of the gateway or module, connect the platform, and you can query the real-time data of the module without any other operations.

②Or click the website: http://iot.acrel-eem.com/
Demo account:
Username: Acrel; Password: 123456

Product selection:

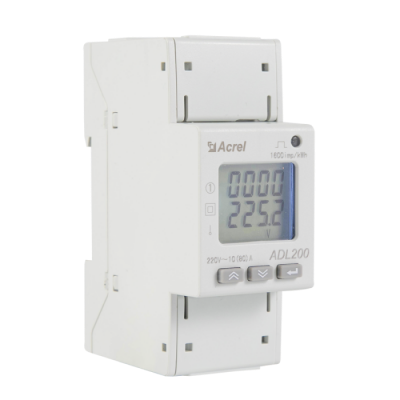

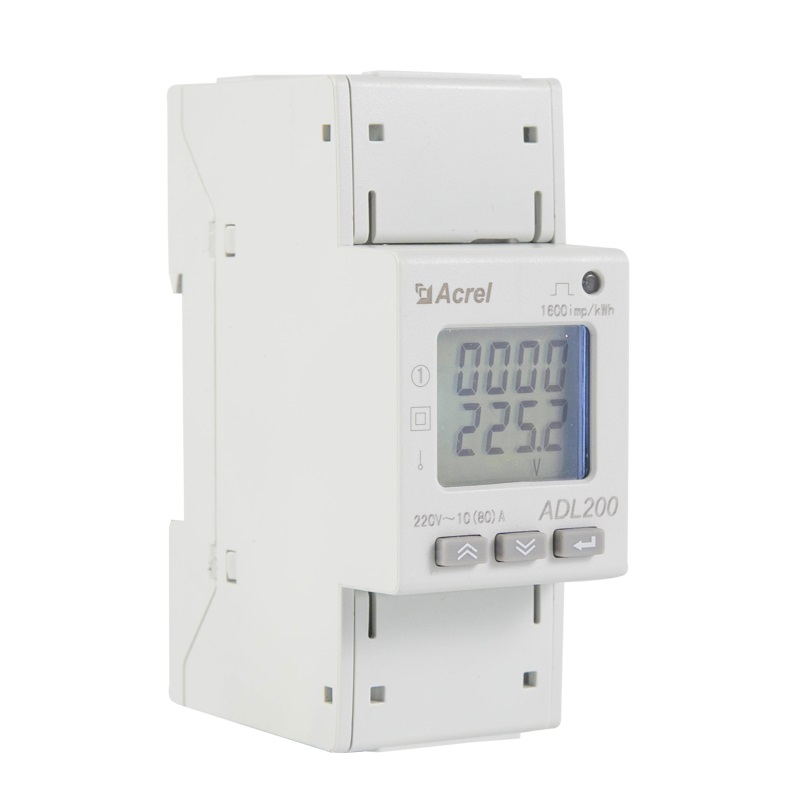

①ADL200 MID Single Phase Din Rail Energy Meter		• AC220V; • 3×10(80)A; • RS485(MODBUS-RTU); • Set parameters; • LCD display; • kWh Class 1; • DIN 35mm;

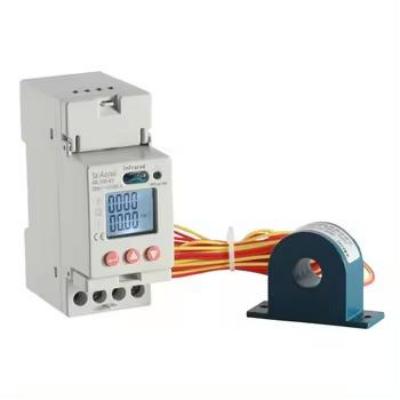

②ADL100-ET Single phase Multifunction Energy Meter		• AC 220V; • 10(60)A,20(100)A; • RS485(MODBUS-RTU); • Set parameters; • LCD display; • DIN 35mm;

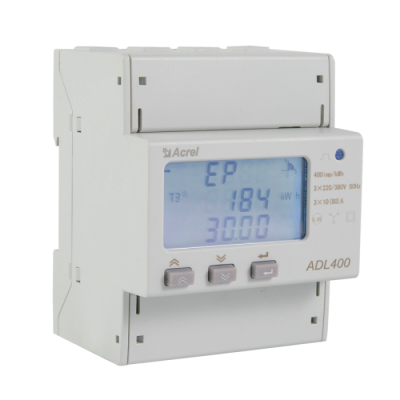

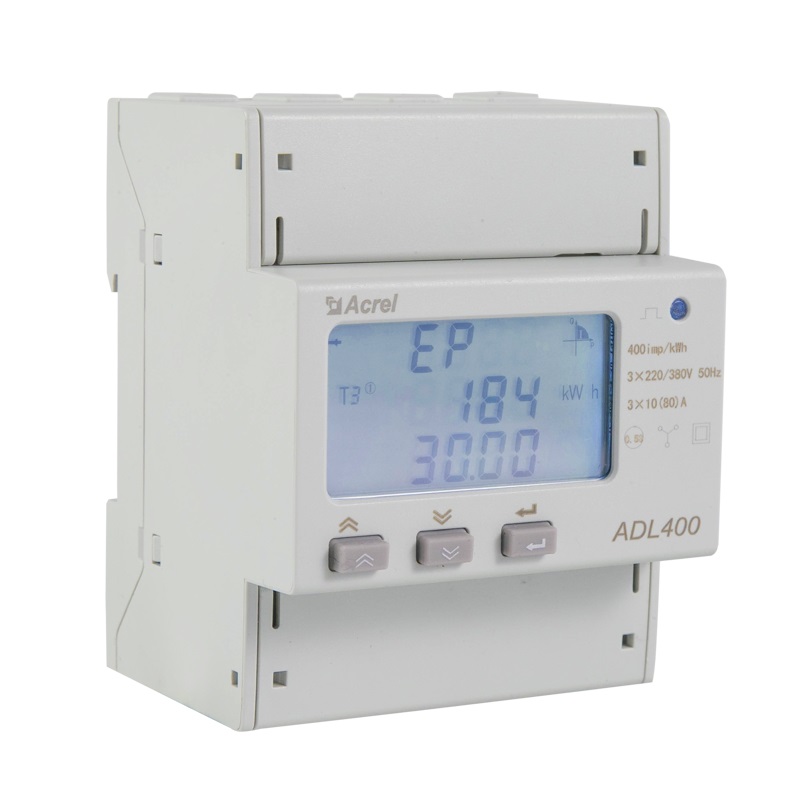

③ADL400 MID Three Phase Din Rail Energy Meter		• AC3100V, 3380V, 357.7/100V, 3220/380V; • 3×1(6)A, 3×10(80)A; • RS485(MODBUS-RTU); • Set parameters; • LCD display; • DIN 35mm;

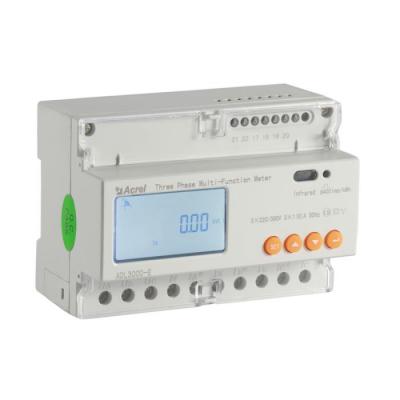

④ADL3000-E UL Three Phase Multifunction Din Rail Energy Meter		• AC 3×220/380V, 3×380V, 3×57,7/100V, 3×100V; • 3×1(6)A, 3×10(80)A; • U、I、P、Q、S、PF、kWh、kvarh; • RS485(MODBUS-RTU); • LCD display; • Frozen data; • 2-31st harmonics; • kWh Class 0.5S, kVarh Class 2kWh Class 0.5; • DIN 35 mm;

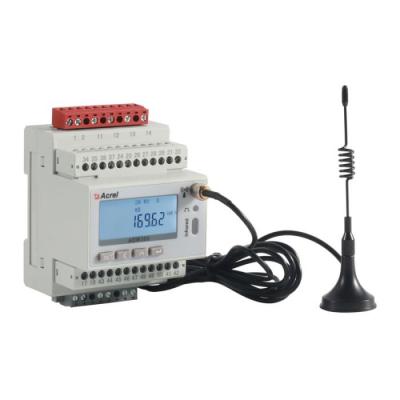

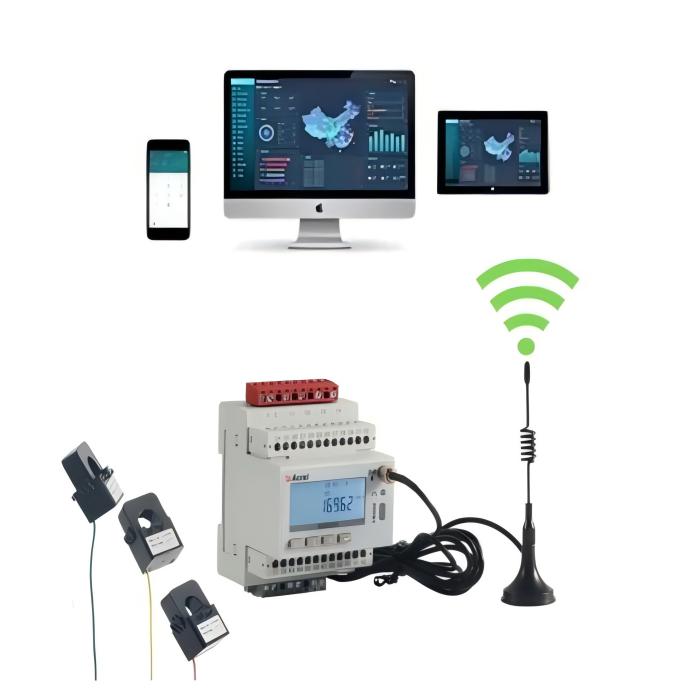

⑤ADW300 Three phase Wireless Din Rail Energy Meter		• Electrical network and diesel engine monitoring; • Power supply AC/DC 85-265V; • Up to 660V 5A direct access; • 4DI and 2DO; • RS485 communication;

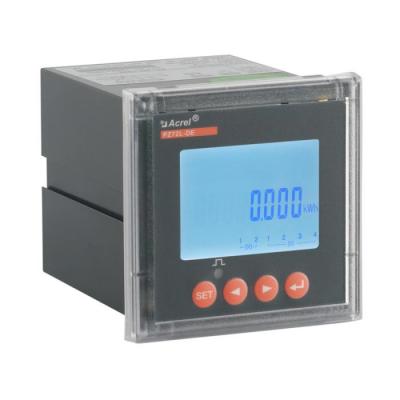

⑥PZ72(L)-DE DC Panel Energy Meter		• Measure voltage, current, power, forward and reverse power in DC system; • Local display; • RS485 (MODBUS-RTU); • Set parameters; • DI/DO, relay alarm output; • Applications: DC panels, solar power, telecommunications base stations and charging piles;

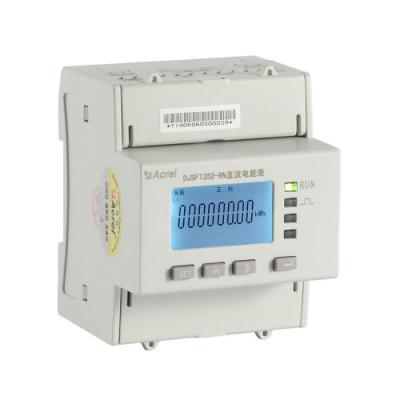

⑦DJSF1352-RN Din Rail DC Power Meter		• Din rail mounted, supports optional two-channel DC voltage, current and power measurement; • Measure DC power; • Direct connection voltage 0-1000V; • Current measurement supports 75mV shunt output, supports 0-5V Hall sensor, 0-20mA output; • RS485 communication (Modbus protocol);
