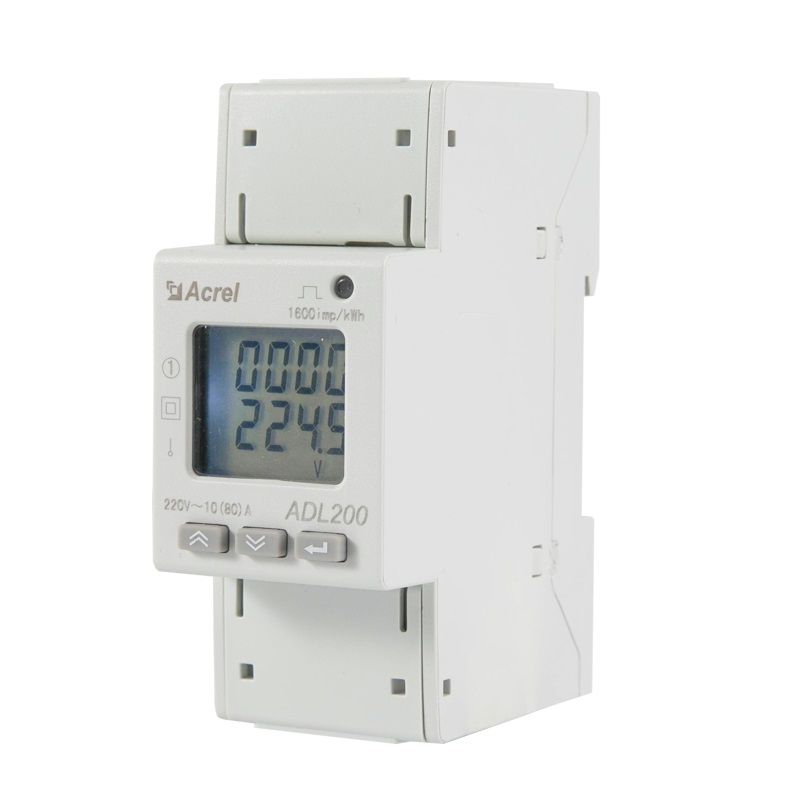

ADL200 MID Single Phase Din Rail Energy Meter
Main features：
• Rated current: 10 (80)A;
• Rated voltage: AC 220 V;
• Communication: RS485 (MODBUS-RTU);
• Display: 8 digit LCD;
• Certificate: IEC; CE; CE-MID; EAC;
- Details
- Parameters
- Documents
1. General：
ADL200 is designed for single-phase active energy measurement in low-voltage systems, at the same time it can measure electrical parameters such as voltage, current, power, etc. You can also choose RS485 communication. This meter has advantages of smaller volume, high precision, good electromagnetic compatibility, easy installation, etc. All meters meet the related technical requirements of energy meter in IEC62053-21, IEC62053-22 standards.

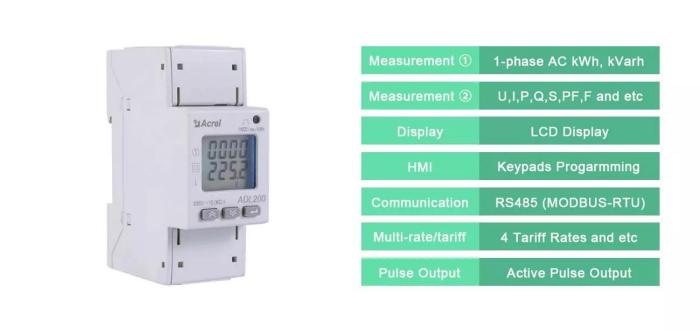

2. Functions

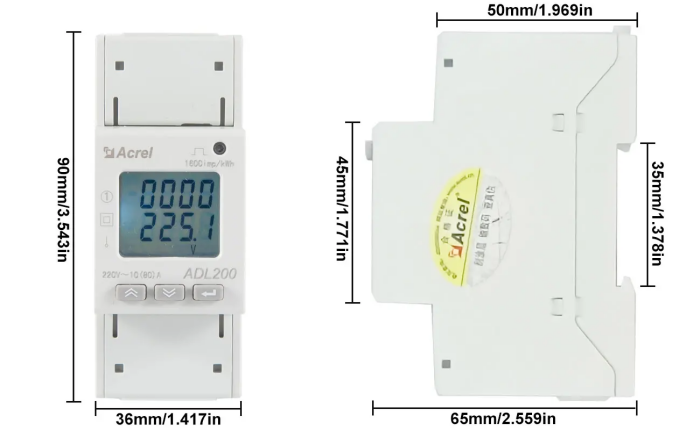

3. Dimension：

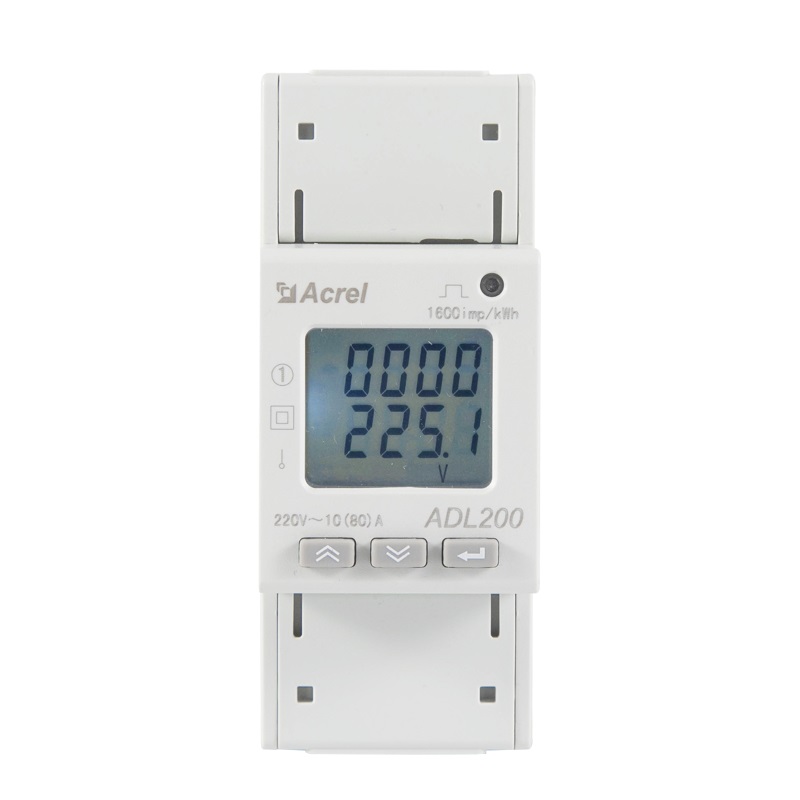

4. Front Panel:

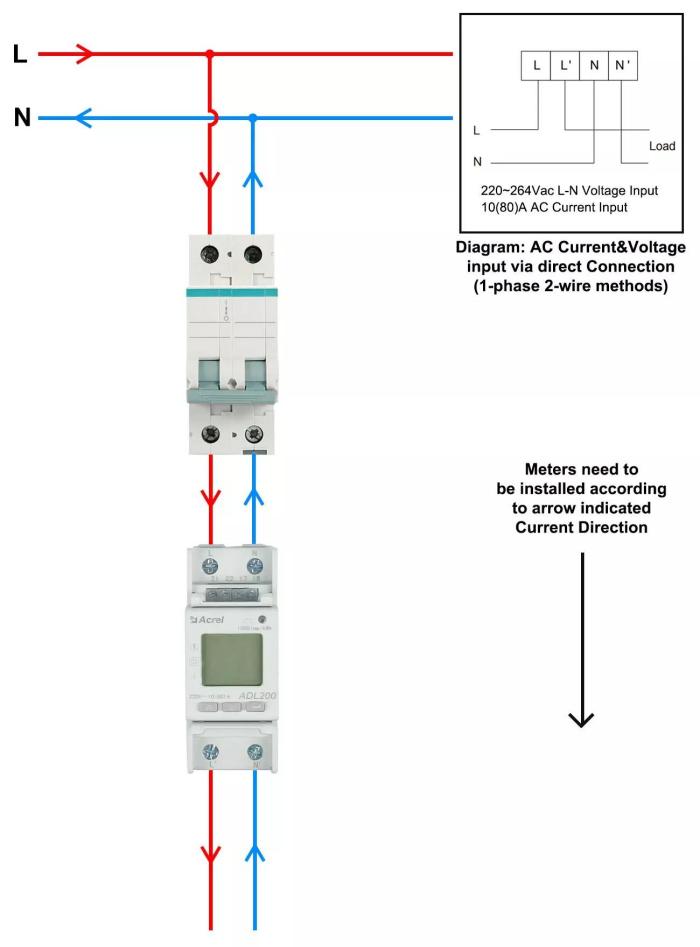

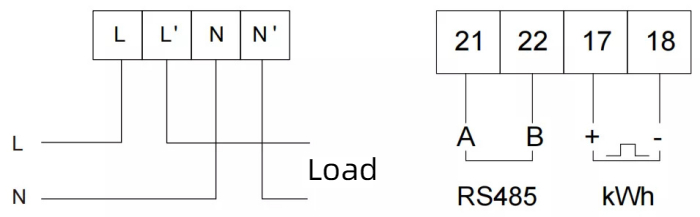

5. Wiring:

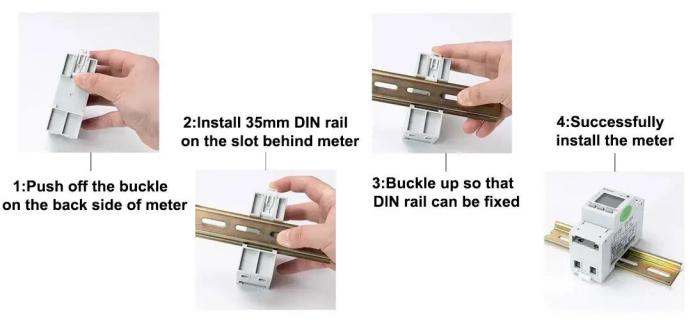

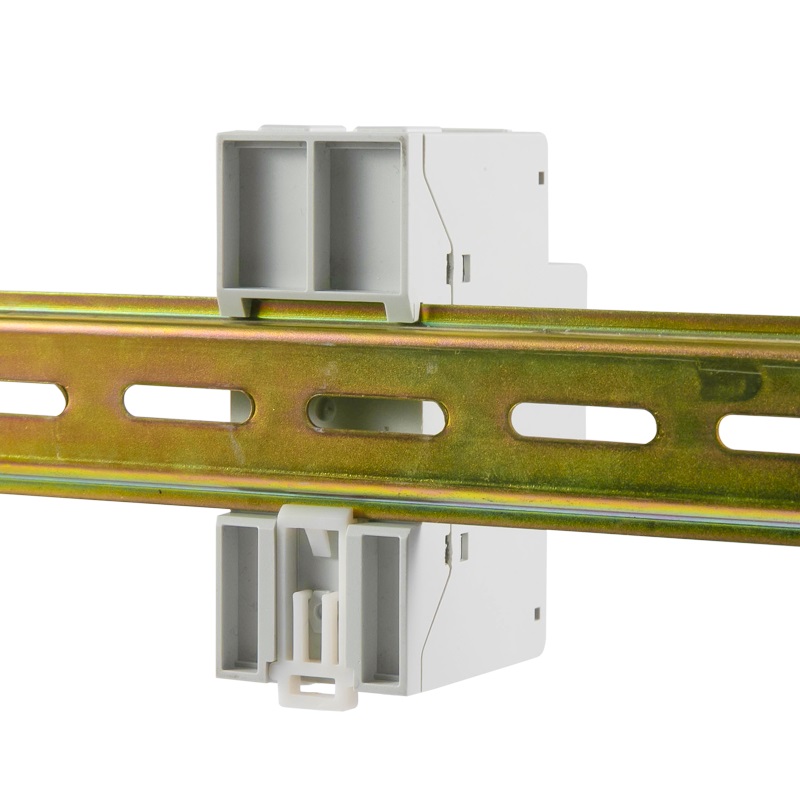

6. Installation:

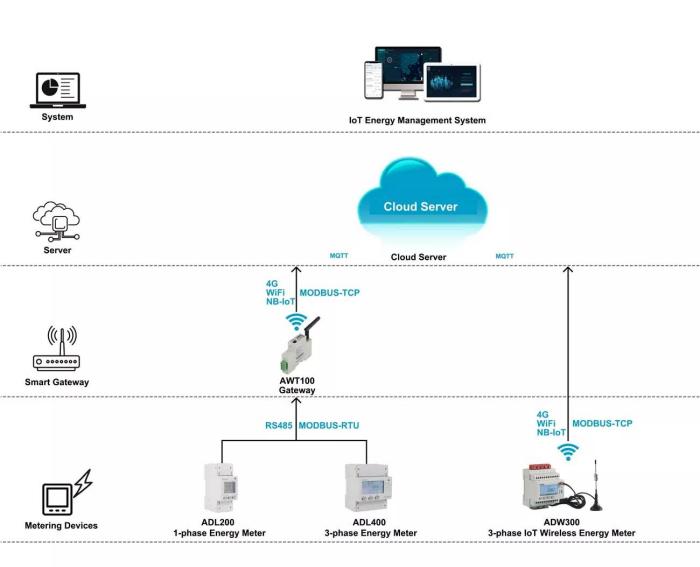

7. Network:
