Smart Power Management System for Base Stations

The intelligent base station power consumption management system installs intelligent AC and DC monitoring equipment, wireless acquisition equipment and system management platforms in 5G macro stations and indoor subsites to complete shutdown operations during non-night hours. commercial, reduce consumption energy, reduce operating costs, and improve the real-time monitoring and protection function of the power supply line status of communication equipment.

Application:

Base Stations;

Structure:

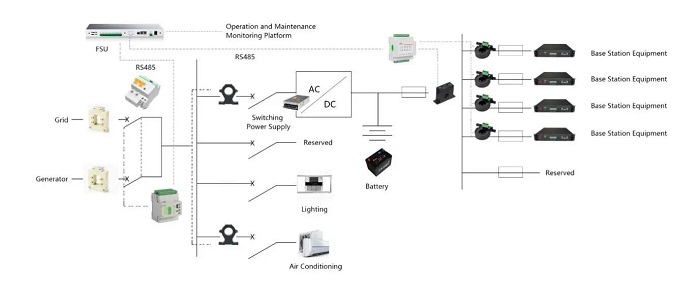

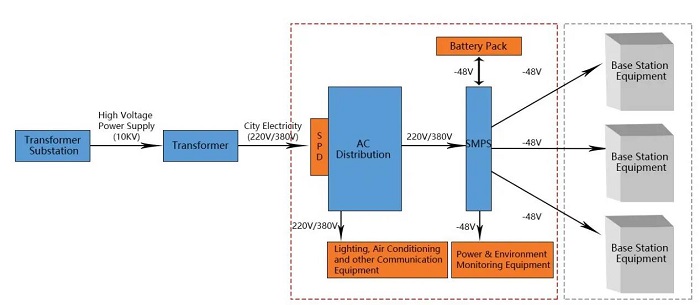

Base station power distribution monitoring system diagram:

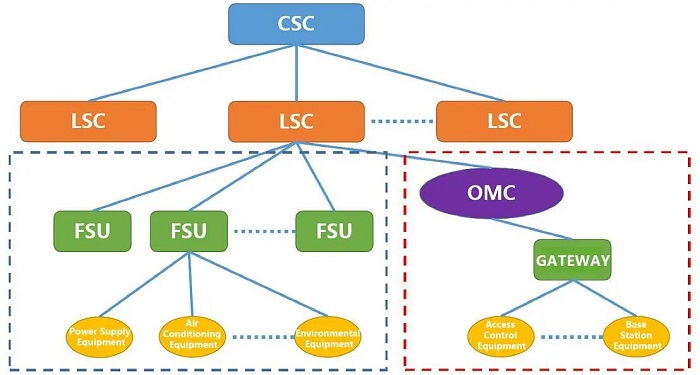

Base station power consumption monitoring topology diagram:

Product selection:

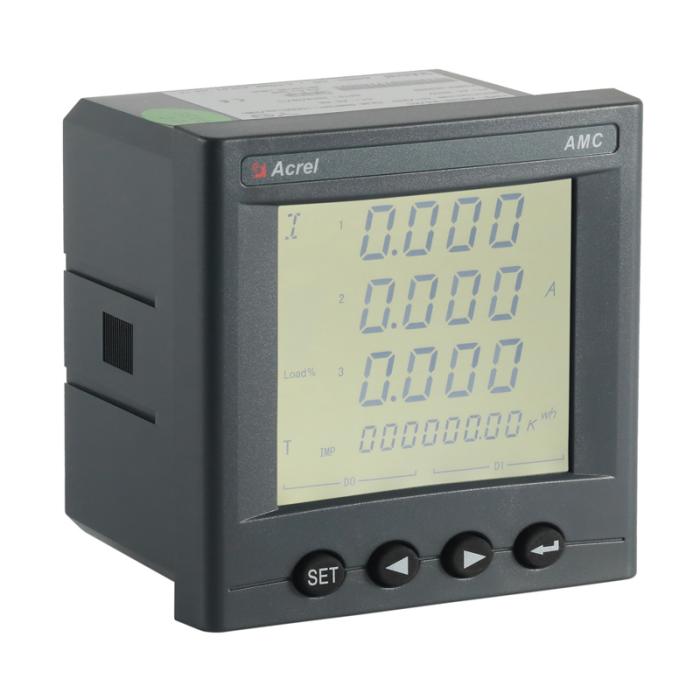

①AMC96L-E4/KC Panel Multifunction Energy Meter		• True RMS Measurements; • THD with harmonics 2-31 • Max/Min record with timestamp; • Optional Internal: 4DI&2DO or 2DI&2DO&2AO; • Standard energy pulse output;
②AMC16-DETT DC Multi-Circuit Energy Meter		• DC nominal voltage: 1 channel: -48V DC; • Accuracy: 1%In≤I≤10%In error±2.5%; I>10%Error±2%; • RS485(MODBUS-RTU); • LED display; • DIN 35mm;

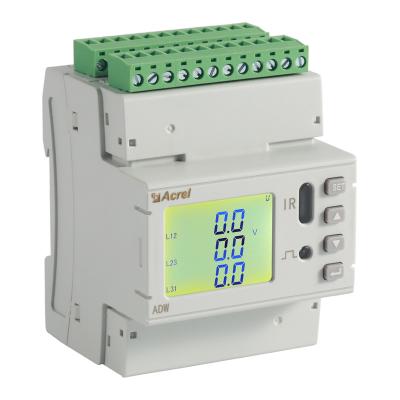

③ADW210 AC Multi-Circuit Energy Meter		ADW200 series multi-loop power meter is mainly used to measure all electrical parameters of a three-phase circuit. Colleagues can select the current input from up to four circuits.

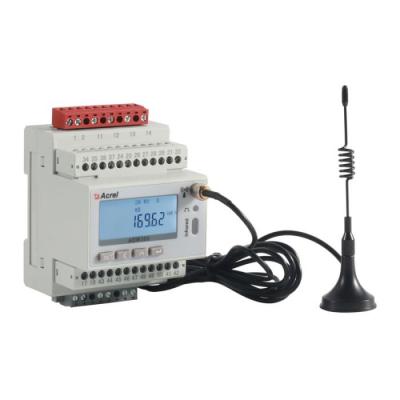

④ADW300 Three phase Wireless Din Rail Energy Meter		• Electrical network and diesel engine monitoring; • Power supply AC/DC 85-265V; • Up to 660V 5A direct access; • 4DI and 2DO; • RS485 communication;

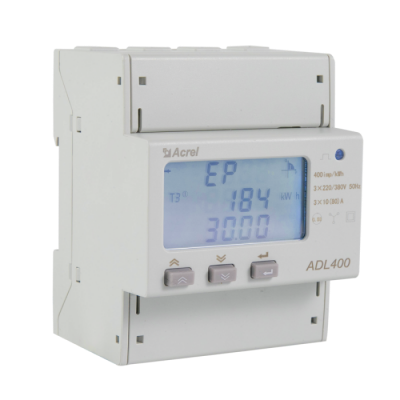

⑤ADL400 MID Three Phase Din Rail Energy Meter		•AC3100V, 3380V, 357.7/100V, 3220/380V • 3×1(6)A, 3×10(80)A • RS485(MODBUS-RTU) • Establecer parámetros • pantalla LCD • kWh Clase 0.5 • DIN 35 mm

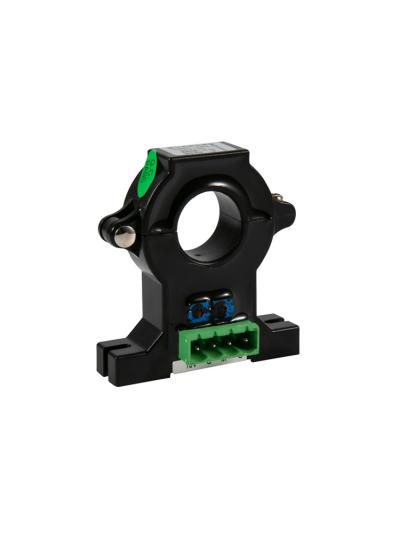

⑥AHKC-E Hall Sensor		Measurement: AC, DC, pulses and other complex currents;
