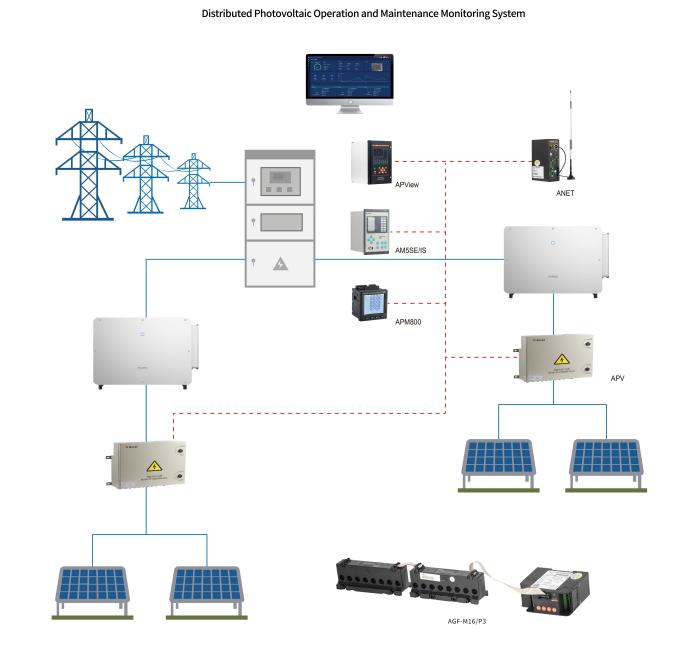

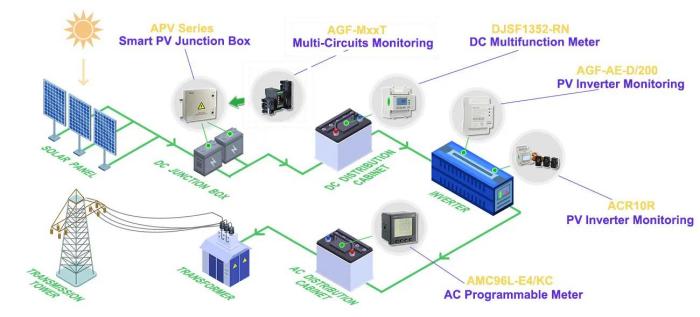

PV System Solution

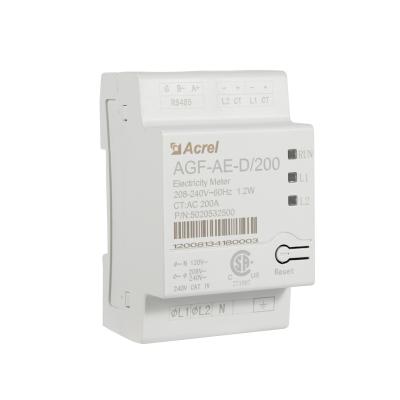

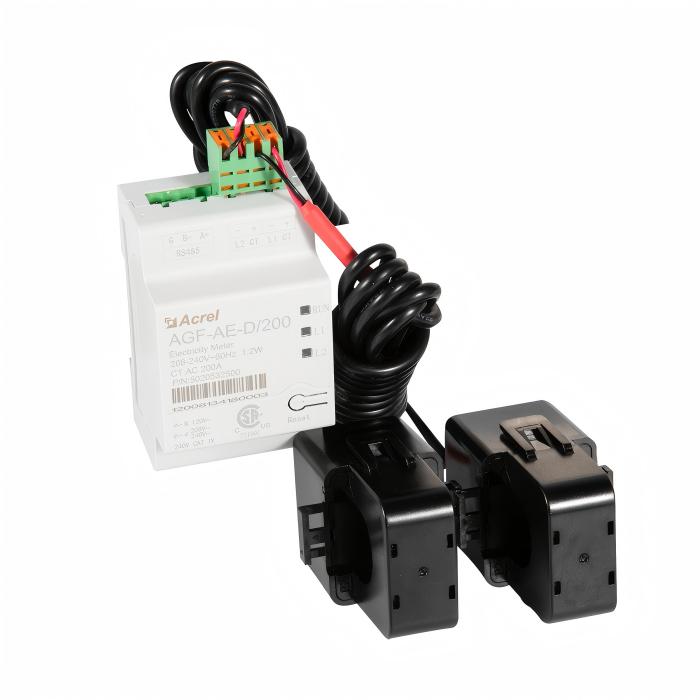

①AGF-AE/D PV Reflux Monitoring Device

• Single-phase three-wire;
• Rated voltage: AC 120V/208V, 240V (88%~110%);
• Rated current: AC 100A, 200A;
• Application: investors in Australia, Europe, North America and other areas;
• DIN 35mm;

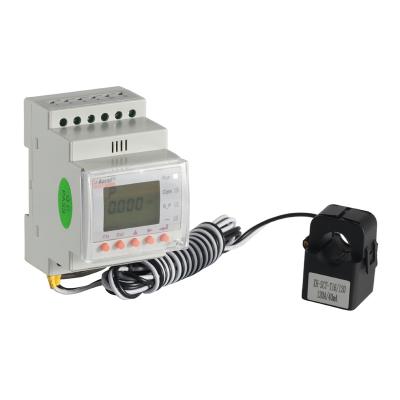

②ACR10R-D10TE4 PV Reflux Detection Device

• Rated voltage: AC 100V or 400V;
• Rated current: AC80A;
• RS485 (MODBUS-RTU);
• Certificate:CE;

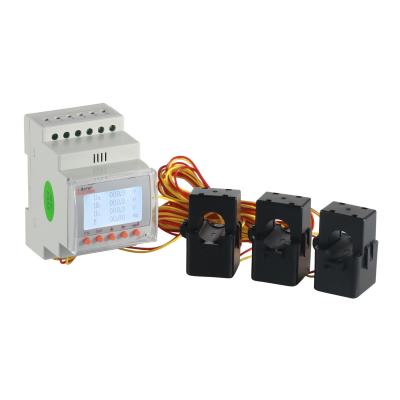

③ACR10R-D10TE PV Reflux Detection Device

• Rated voltage: 3X220/380V;
• Rated current: 60A;
• Communication: RS485 Modbus-RTU;
• Certificate:CE;

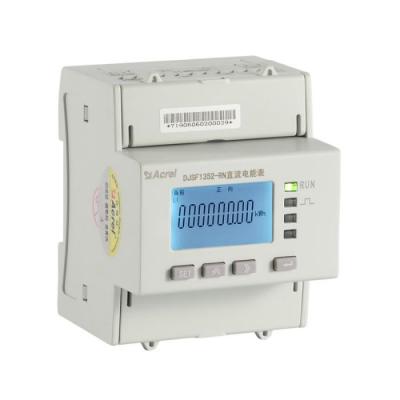

④DJSF1352-RN DC Din Rail Energy Meter

• Din rail mounted, supports optional two-channel DC voltage, current and power measurement;
• Measure DC power;
• Direct connection voltage 0-1000V;
• Current measurement supports 75mV shunt output, supports 0-5V Hall sensor, 0-20mA output;
• RS485 communication (Modbus protocol);

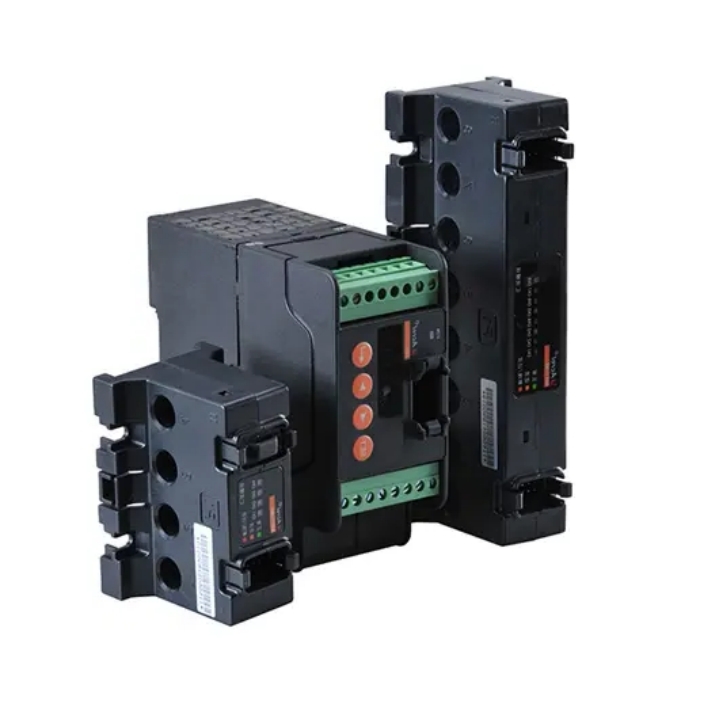

⑤AGF-MXXT PV Confluence Collection Device

• Accuracy: 0.5;
• Rated current: DC 0-20A
• Voltage: DC 1000V, DC 1500V;
• Communication: RS485 Modbus-RTU;

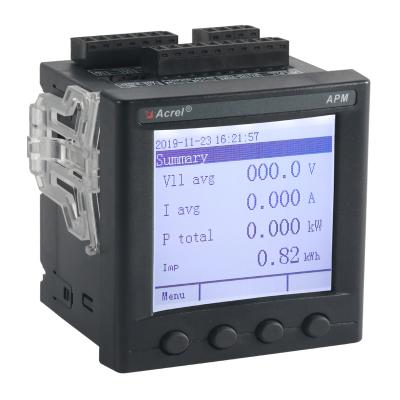

⑥APM Power Quality Monitoring Device

• Network: three-phase three-wire, three-phase four-wire
• Functions: full power measurement, power statistics, power quality analysis, wave recording function, event recording function
• Accuracy: 0.5S class

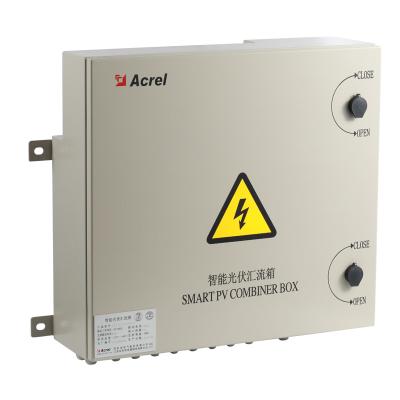

⑦APV Multi-loop Bus Box

• 4/8/10/12/16-loop photovoltaic confluence monitoring

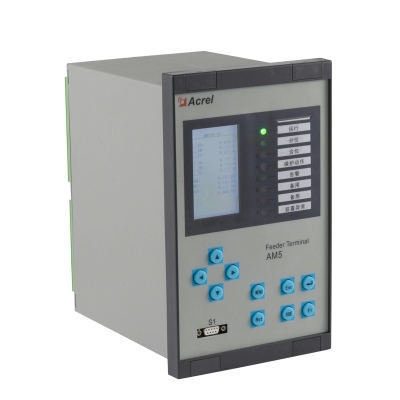

⑧AM5SE-IS Anti-island Protection Device

• 3-stage overcurrent protection, low voltage trip, zero sequence overvoltage protection (trip/alarm), reverse power protection, frequency protection (low frequency load reduction/high frequency protection), post-acceleration overcurrent protection, control loop disconnection alarm, FC loop with overcurrent blocking function, CT disconnection alarm

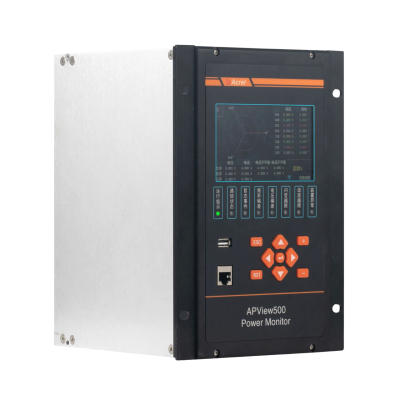

⑨APView500 Power Quality Online Monitoring Device

• 16 AC voltage /current channels;
• 16 programmable passive relay outputs;
• 22 active switching input channels;
• 2 RS485 interfaces;
• 4 Ethernet interfaces;
• 1 GPS timing interface, supporting IRIG-B timing Way;
• 1 channel RS232 interface;
• 1 USB interface;
