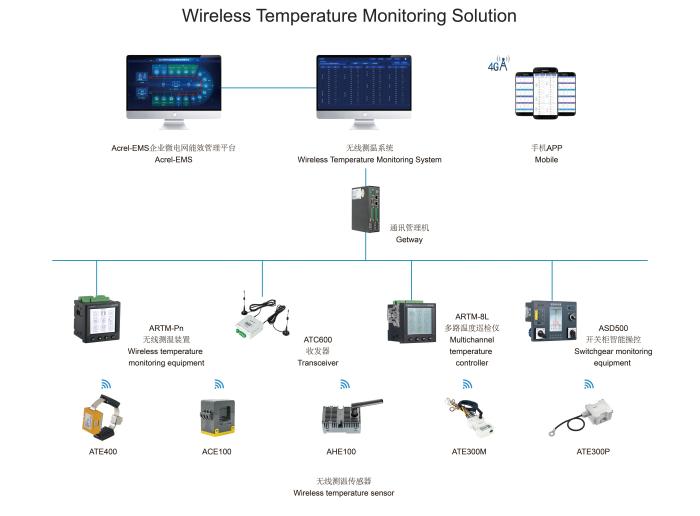

Wireless Temperature Monitoring Solution

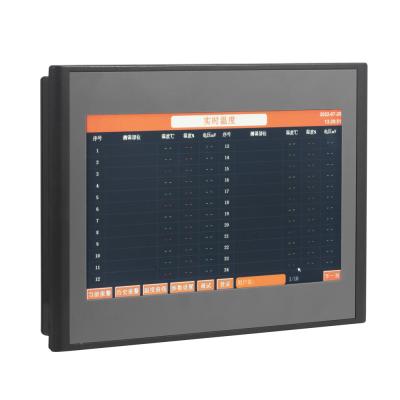

①ATP007kt/ATP010kt HMI

• 7 or 10 inch touch screen;
• Real-time monitoring and display of voltage, current, power, energy, power quality, switch status, wave curve, etc. of the bus bar;
• Monitoring device alarm, communication and other parameters can be set on the screen;
• 2 RS485 and 1 Ethernet, and data can be uploaded via RS485 or RJ45;

• Small size;
• Wireless transmission;
• Wireless transmission distance, 150 meters;
• Phase sampling rate, 15 s;
• Powered by CT, starting current more than 5A;
• Wide temperature measurement range, -40℃~125℃;

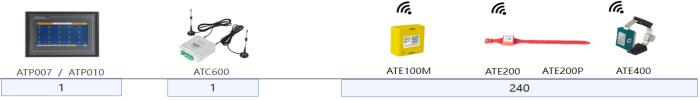

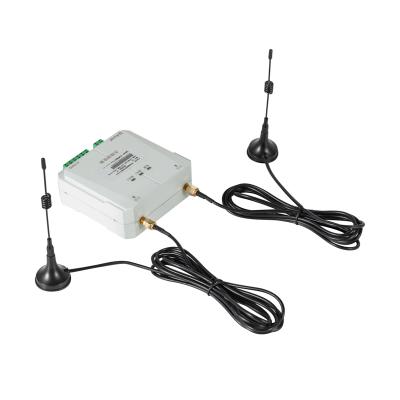

③ATC600-C Wireless Data Transceiver

• Wireless temperature measurement;
• Measuring 240 points;
• 1 RS485 serial communication, Modbus-RTU;
• 2 Alarm relays;
• The power supply adapts with AC/DC220V, AC/DC110V;

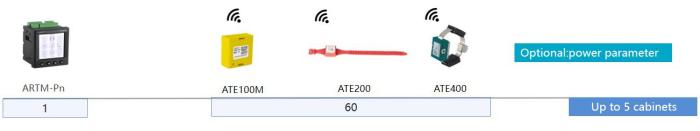

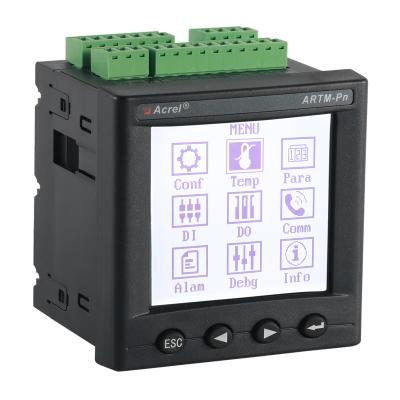

④ARTM-PN Local Display Device

• RS485 communication interface;
• Supports Modbus RTU protocol;
• Relay alarm output and digital input function.
• Set ratio, alarm and communication via meter panel keys according to different requirements;
• Switch event log (Modbus protocol), event programming and configuration logs, instant and timed data freezing function, voltage and current maximum and minimum value recording function;

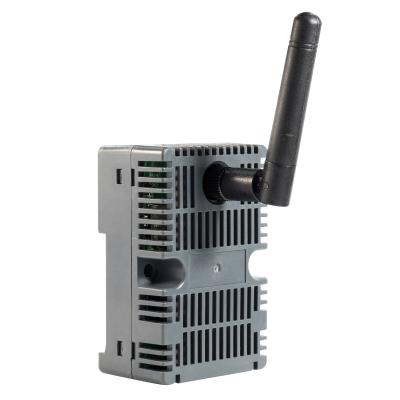

⑤AHE100 Wireless Temperature and Humidity Sensor

• Wireless transmission, 470Mhz/433Mhz;
• Wireless transmission distance, 150 meters;
• Transmission frequency: 5min
• Battery operated, more than 3 years;
• Temperature range: -30℃ ~ 85℃; Accuracy: ±1℃
• Humidity range: 0-100%RH; Accuracy: ±3%RH
