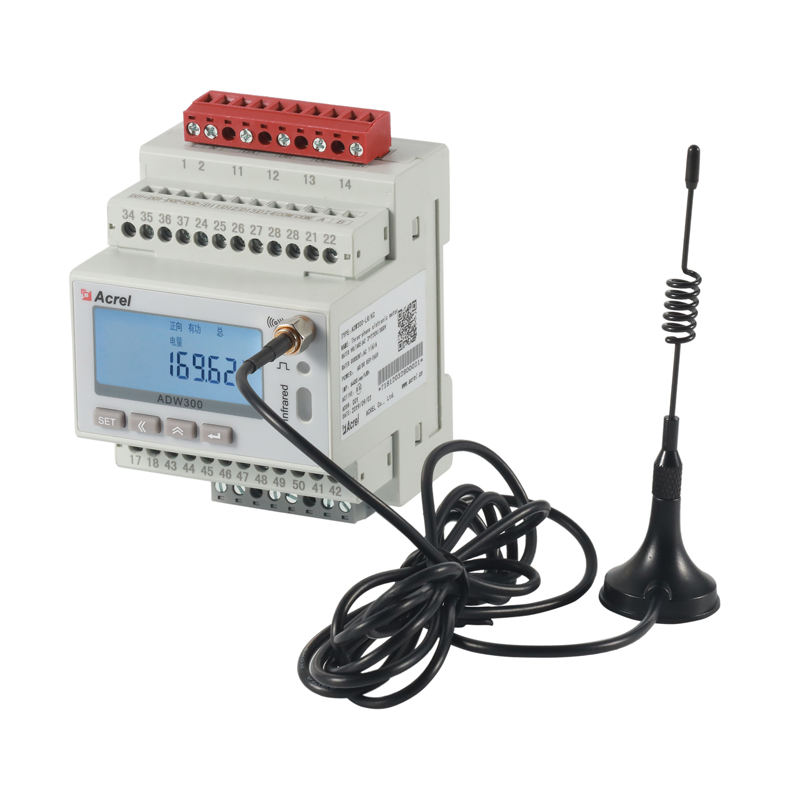

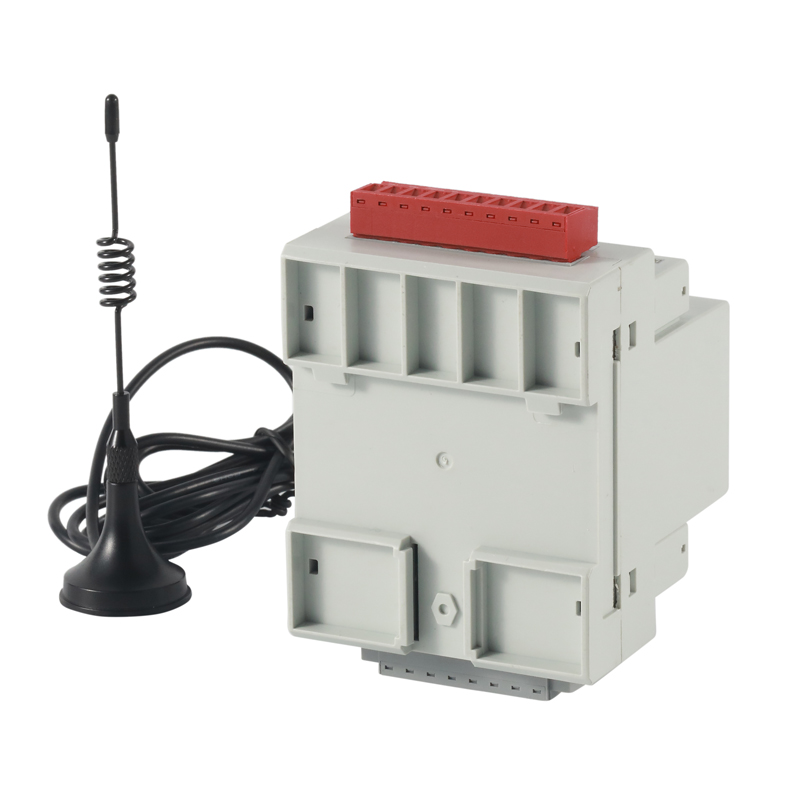

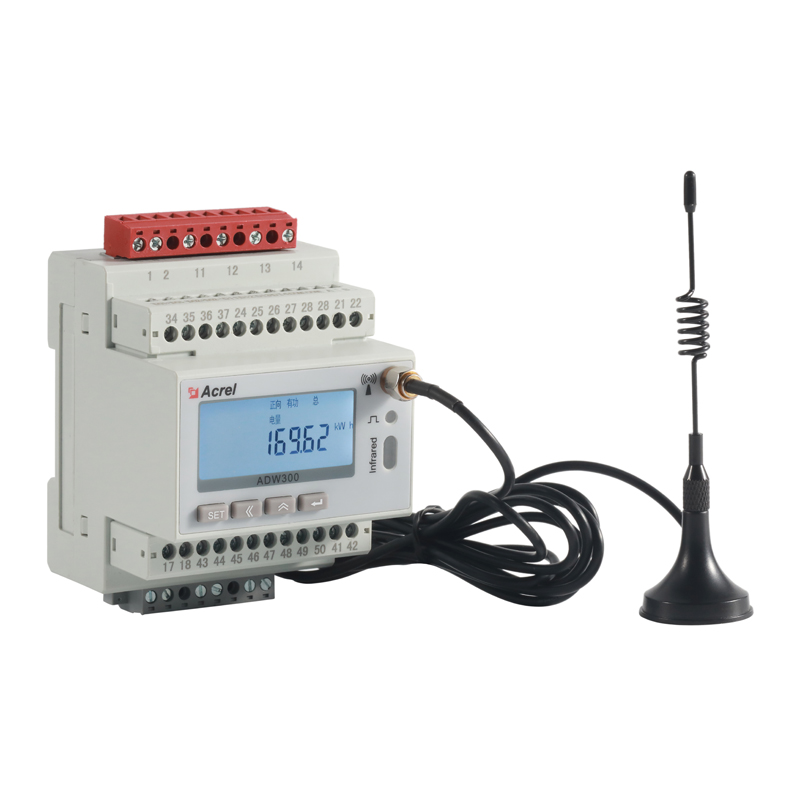

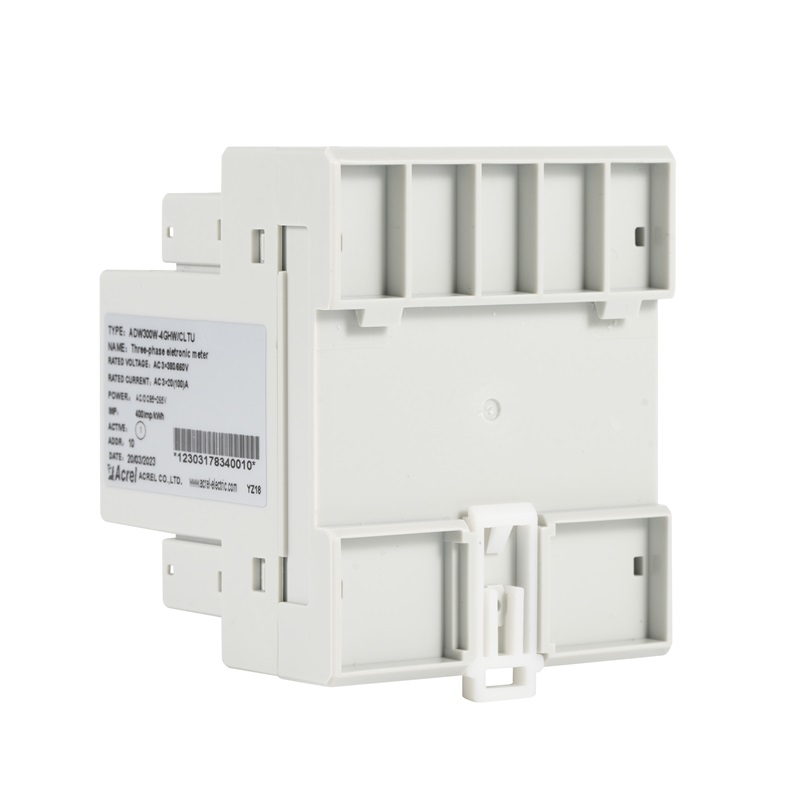

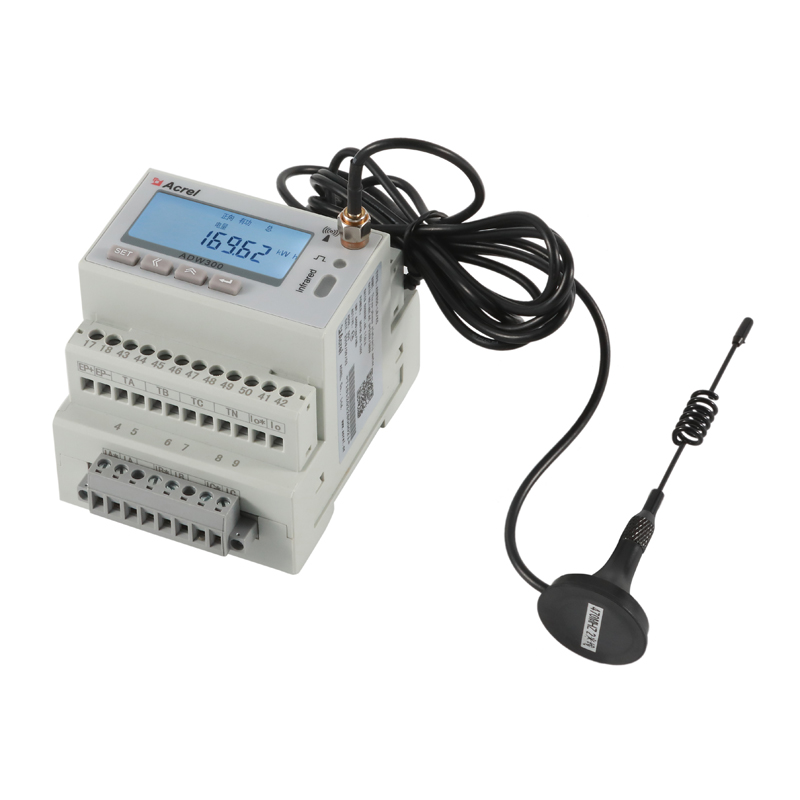

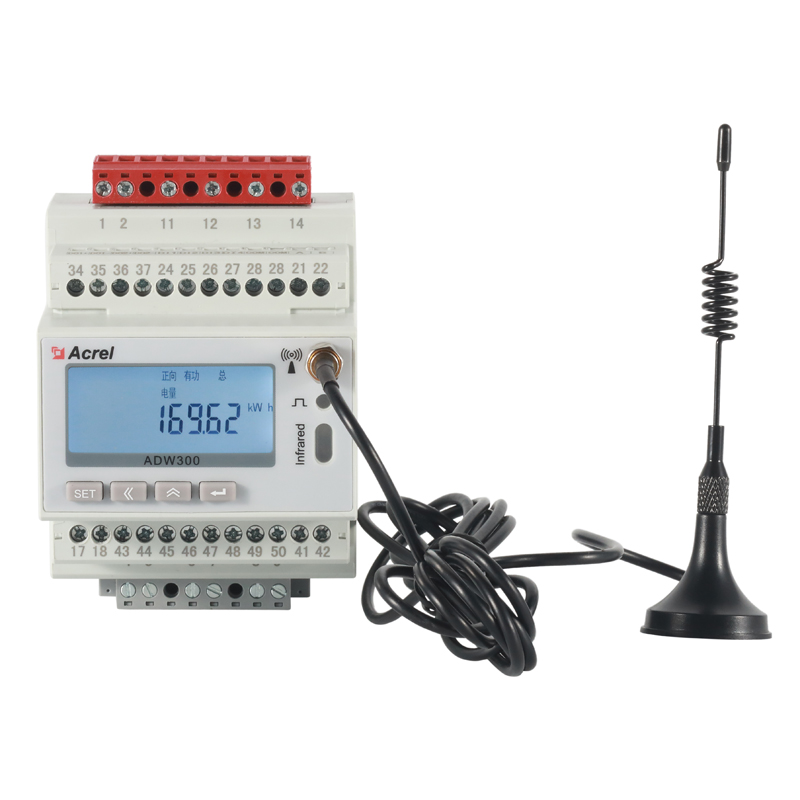

ADW300 Three Phase Wireless Energy Meter
Main features：
• Communication methods: RS485/4G/WiFi/Lora/LoraWAN/NB-IoT
• Communication protocol: MQTT, MODBUS-RTU, MODBUS-TCP
• Rated voltage: up to 3x660~792Vac L-L
• Application scenario: Building, Factory, Smart Networks, DB Room, etc.
• Standard and Certificate: CE; IEC; LVD
- Details
- Parameters
- Documents
1. General：
ADW300 is mainly used to measure the three-phase active power of low-voltage grid, which has the advantages of small volume, high precision and rich functions; and has many optional communication modes, which can support wireless communication modes such as RS485, Lora, 2G, NB, 4G and LoraWAN communication; and increases the current sampling mode of the external transformer, to facilitate users to install and use in different situations. It can be flexibly installed in the distribution box to meet the requirements of subelectric power measurement, operation and maintenance supervision or power monitoring for different areas and different loads.

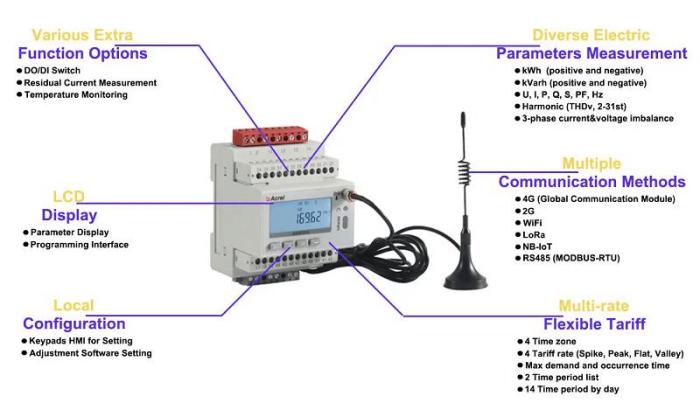

2. Functions

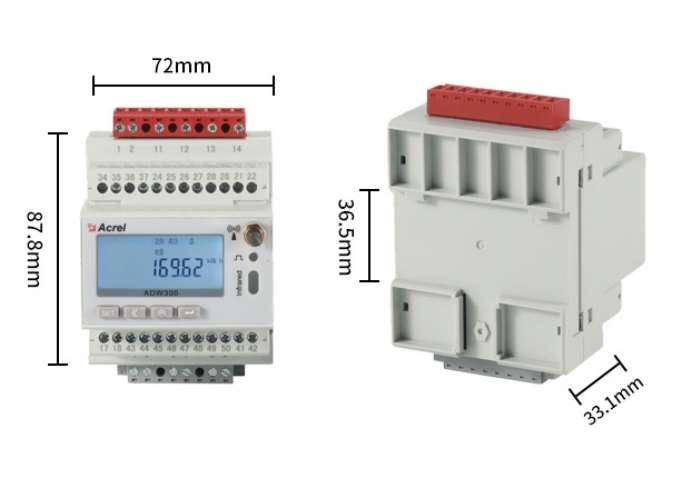

3.Dimension：

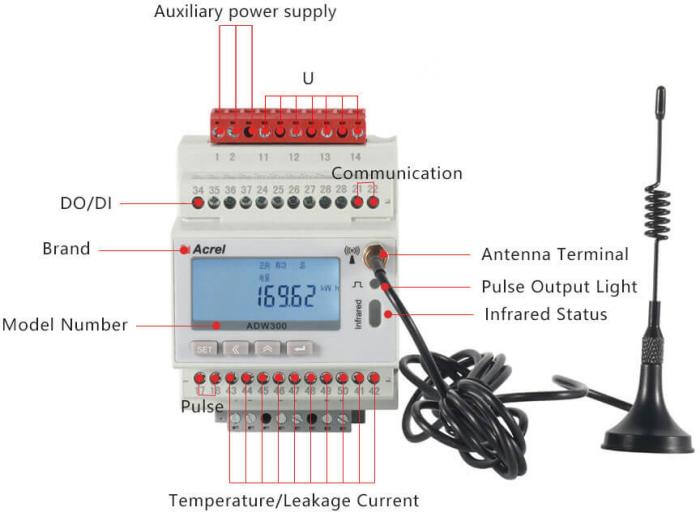

4.Front Panel:

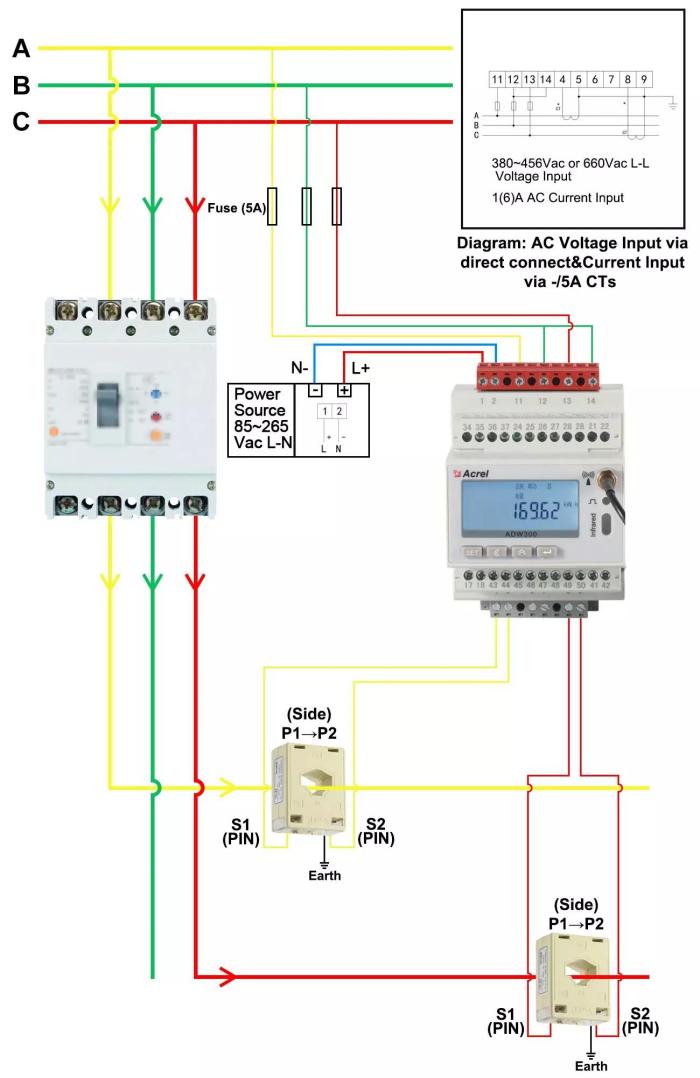

5. Wiring:
|

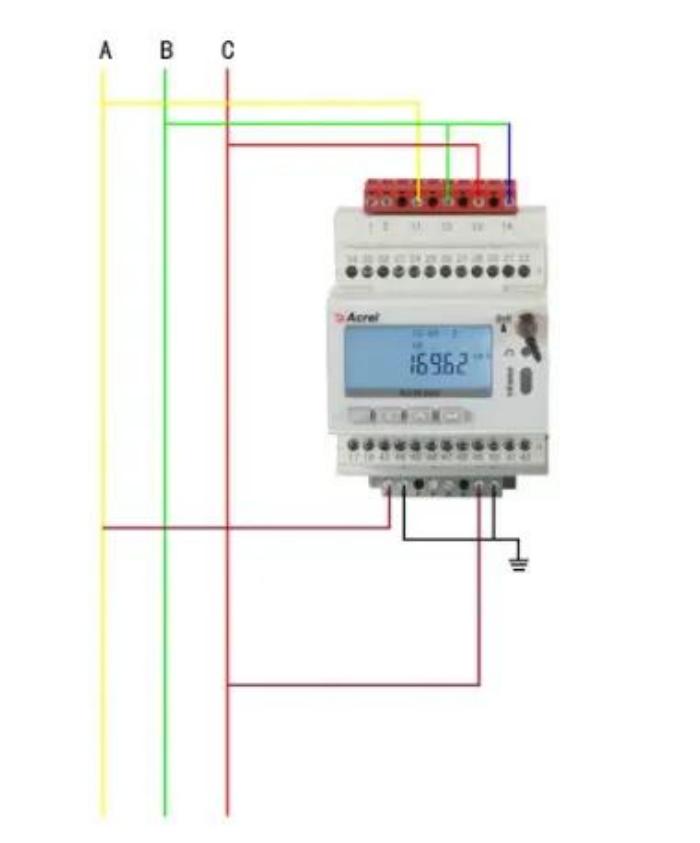

3P3W |

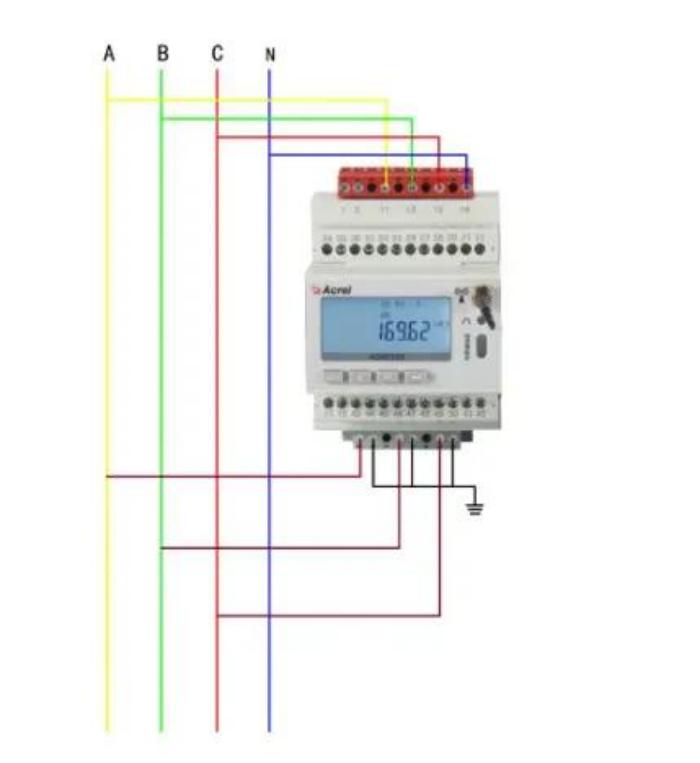

3P4W |
 |
 |
|
3P3W with CTS |

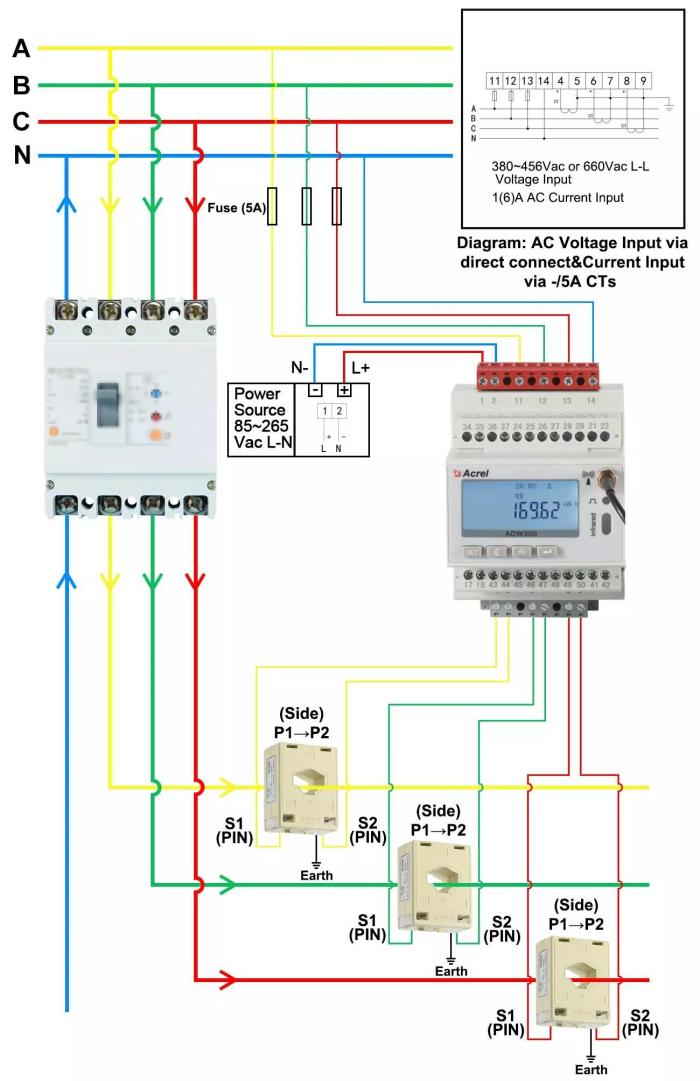

3P4W with CTS |
 |
 |

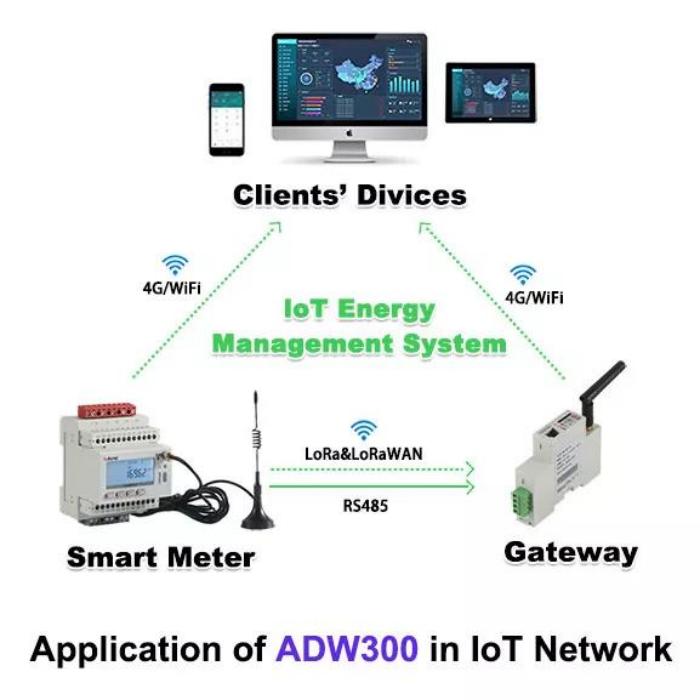

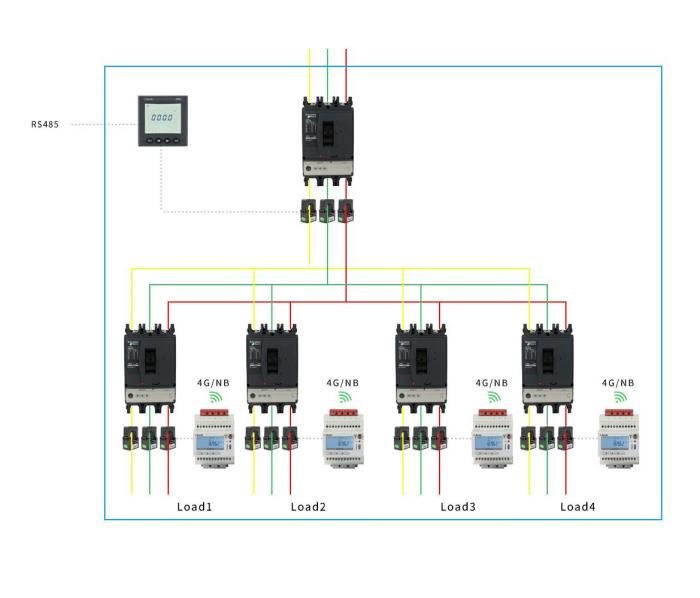

6. Network:

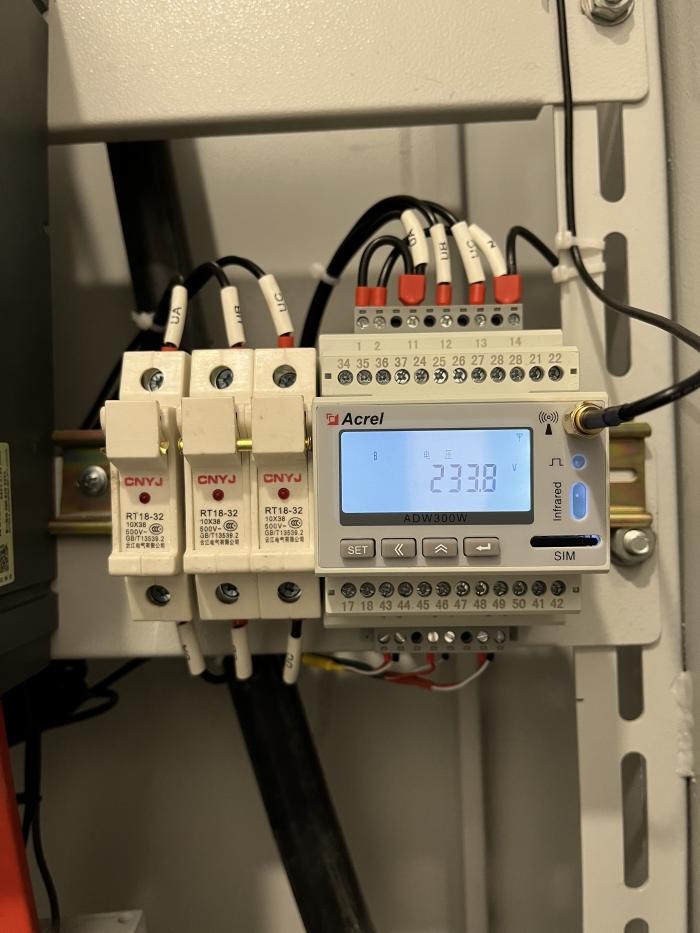

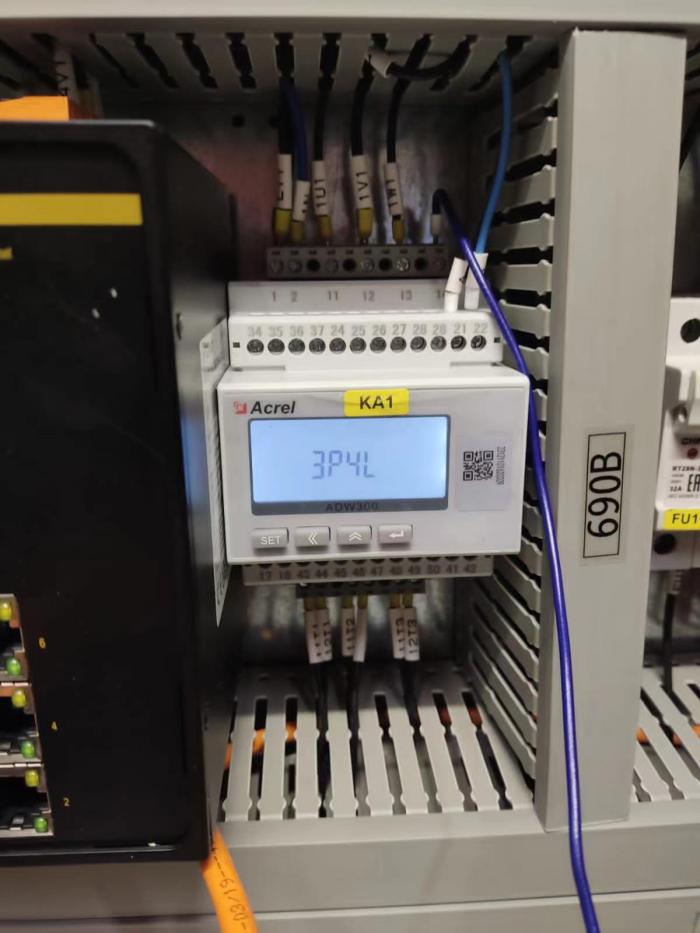

7.Photo on site:
|
|
