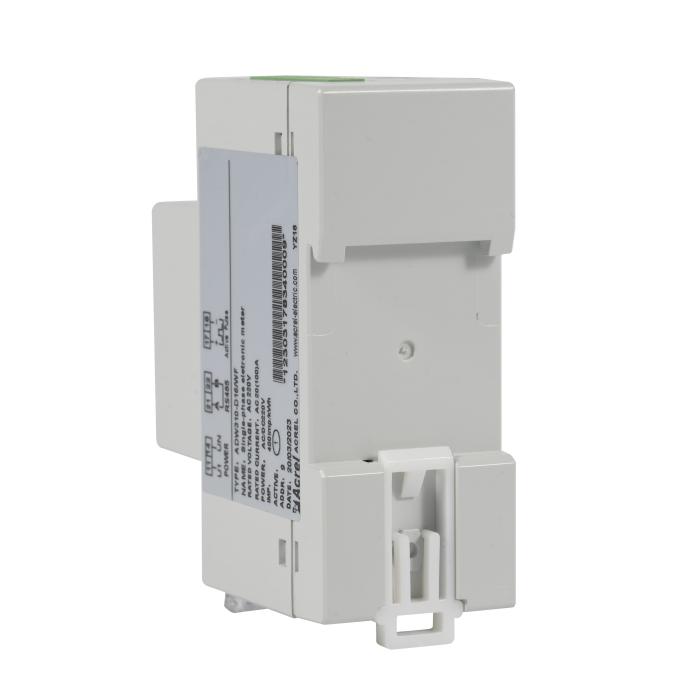

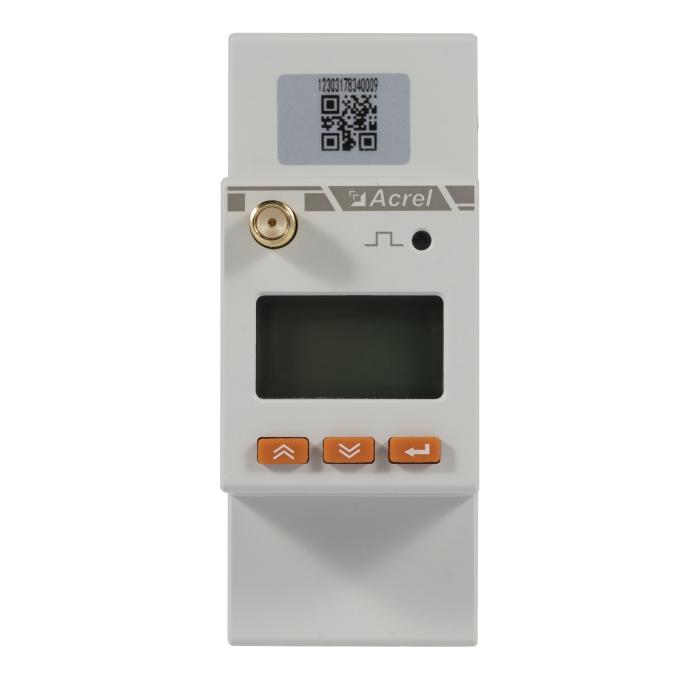

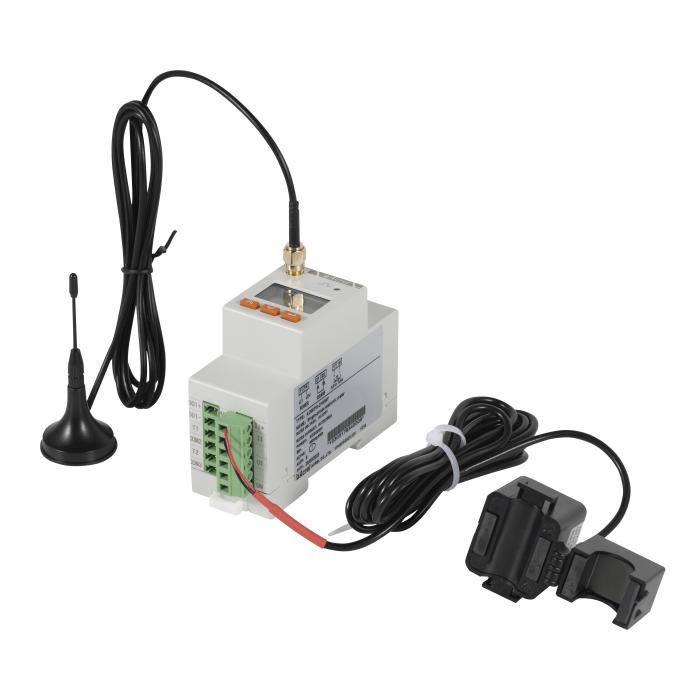

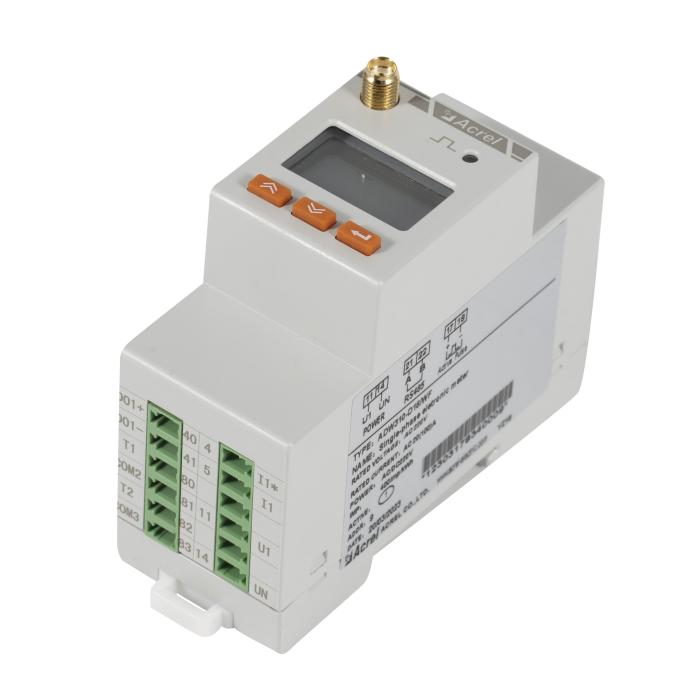

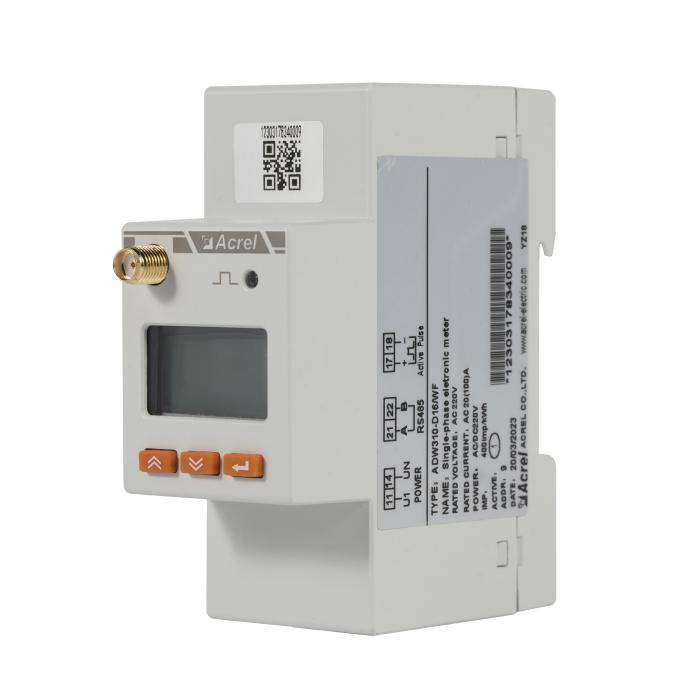

ADW310 Single Phase Wireless Energy Meter
Main features：
• Communication methods: RS485/4G/WiFi/Lora/LoraWAN
• Communication protocol: MQTT
• Rated voltage: 220V AC
• Rated current: 20(100)A AC (via matched CT)
• I/O function: 1-way DI and 1-way DO
• Temperature: 2-way cable temperature measurement
• Standard and Certificate: CE;
- Details
- Parameters
- Documents
1.General：
ADW310 wireless energy meter is mainly used to measure the active energy of a low voltage network. It has the advantages of small size, high precision, rich functions, etc., and has many optional communication methods. It can support RS485 communication, Lora, 4G, LoraWAN, WiFi and other wireless communication methods. The current sampling mode of the transformer is convenient for users to install and use in different occasions. It can be flexibly installed in the distribution cabinet to meet the needs of energy metering, operation and maintenance supervision or energy monitoring for different areas and different loads.

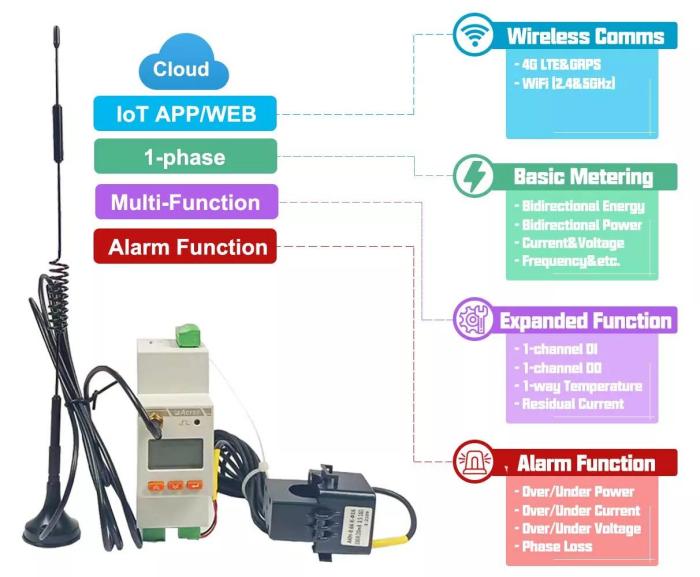

2. Functione:

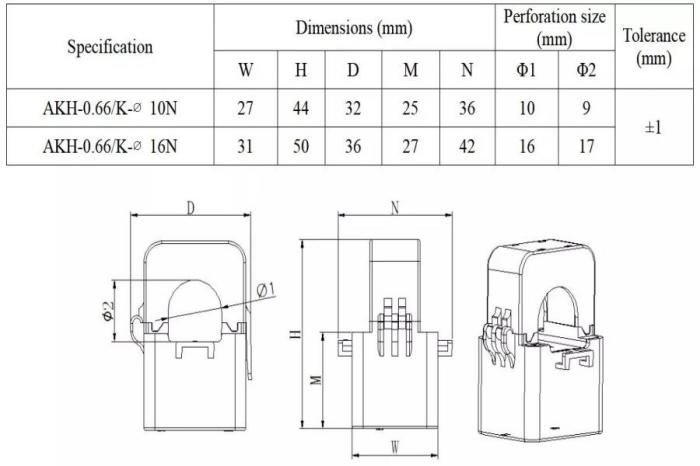

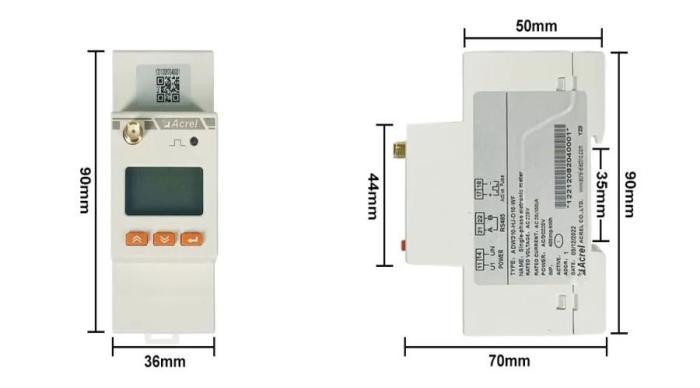

3. Dimension：

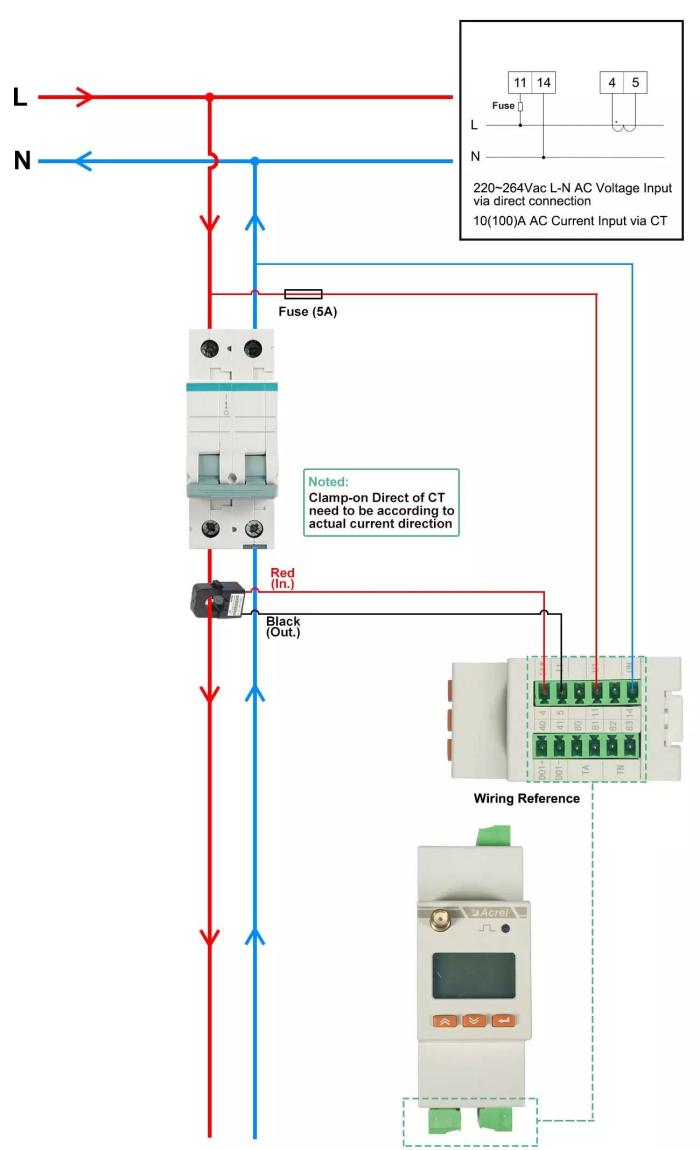

4. Wiring:

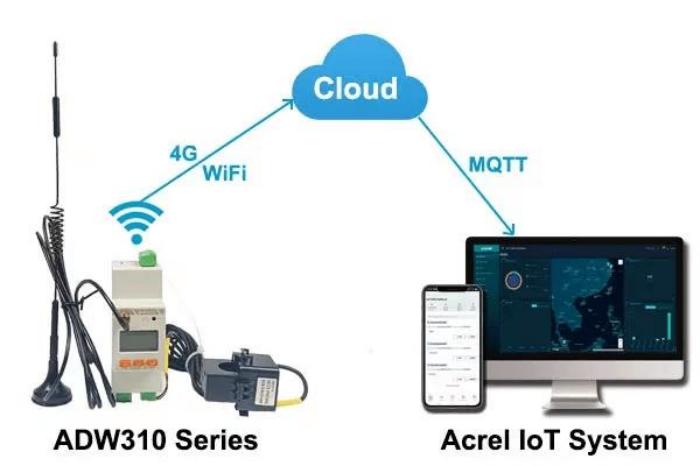

5. Network:
