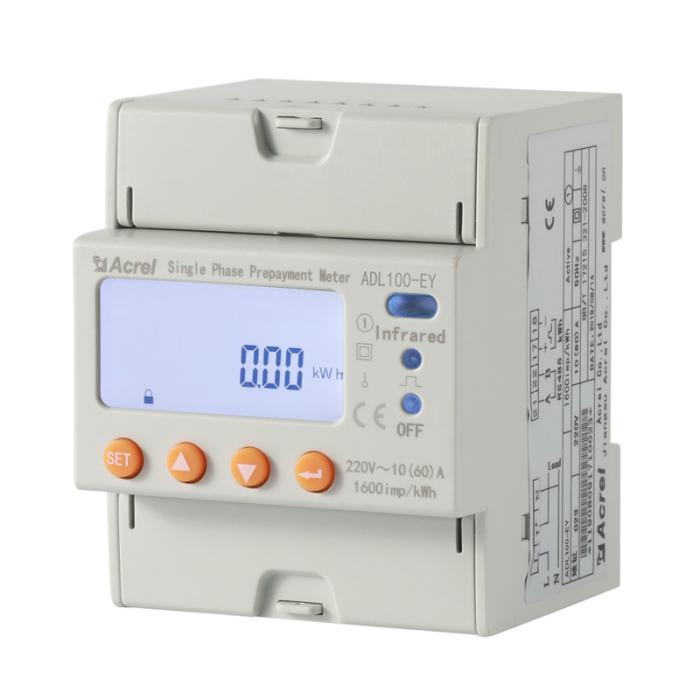

ADL100-EY Prepaid&Postpaid Single Phase Energy Meter
Main features：
• Application: shopping malls, commercial buildings, schools, staff dormitories, etc.;
• Nominal voltage: 220~264Vac L-N and 45~65Hz;
• Rated current: 10(60)A AC (via direct connection);
• Communication: RS485 (MODBUS-RTU); Infrared;
• Automatic control: Built-in latch relay for on/off control;
• Multiple rate: 4 rates, etc.;
• Standard and certificate: CE;
- Details
- Parameters
- Documents
1. General：
The ADL100-EY single-phase and ADL300-EY three-phase introductory control prepaid meters are used to calculate single-phase and three-phase active energy respectively at the frequency of 50 Hz. The meter has functions of prepayment, load control and RS485 communication, etc. It meets the related technical requirements of electronic power meter in IEC62053-21, IEC62053-22 standards. And they can use in shopping malls, commercial buildings, schools, staff dormitories, etc.

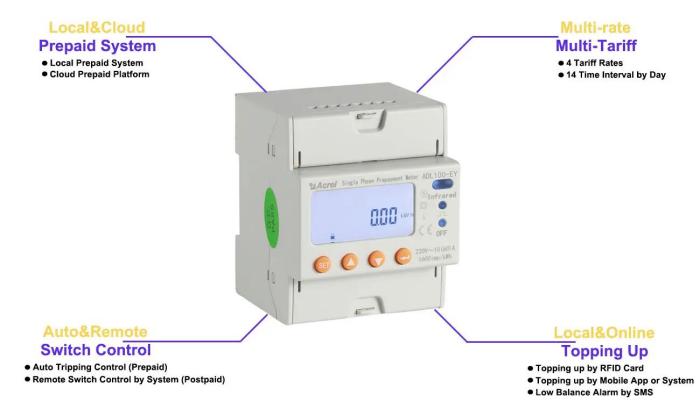

2. Functions:

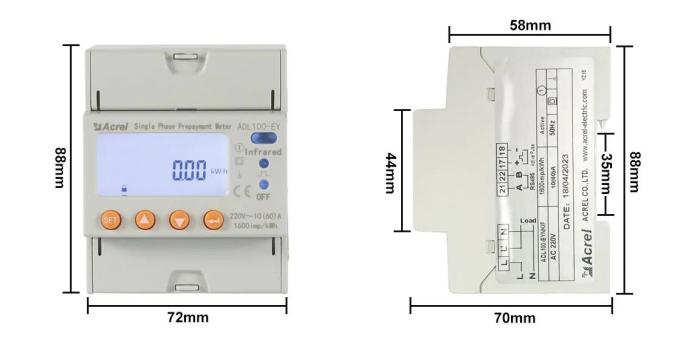

3. Dimension：

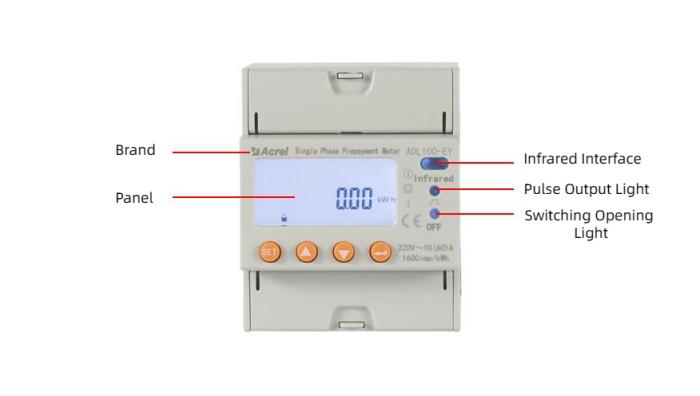

4. Front Panel:

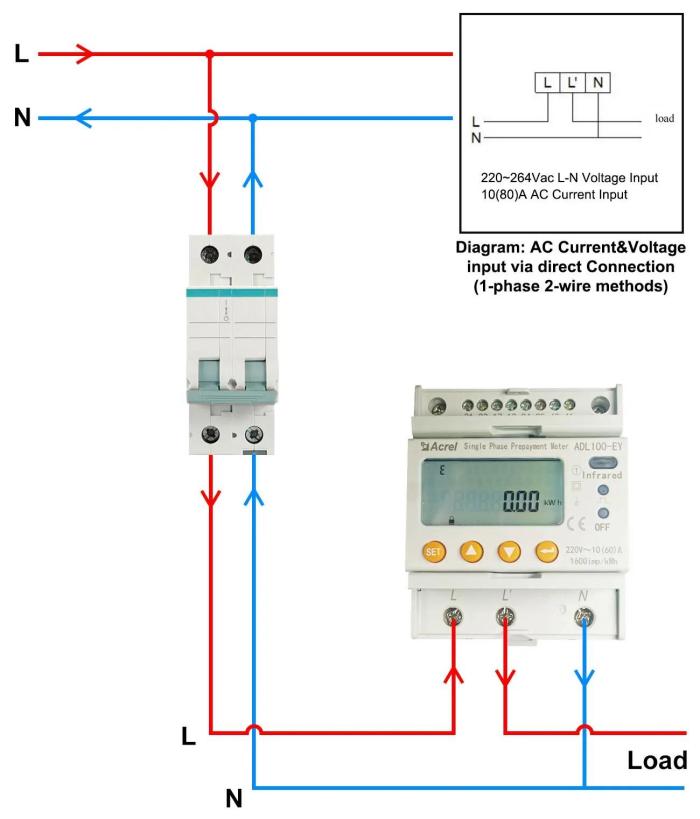

5. Wiring:

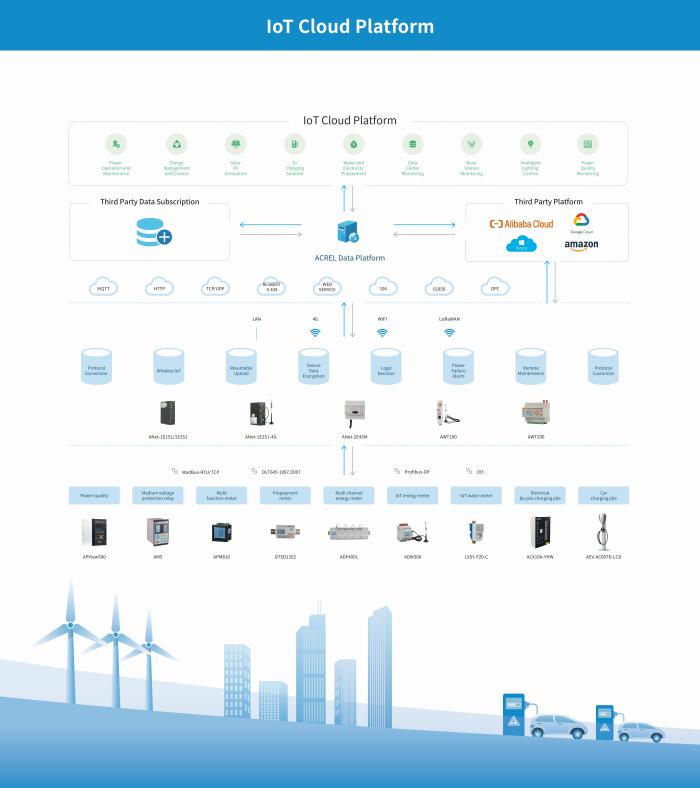

6. Network:

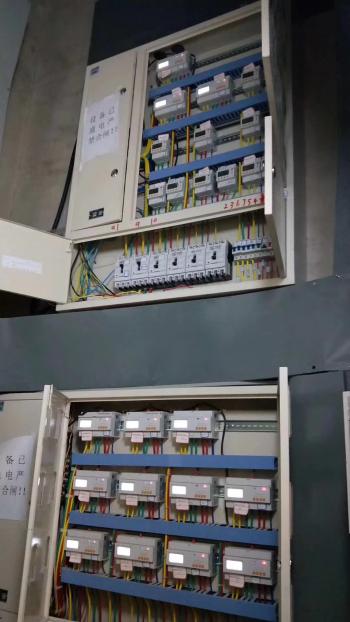

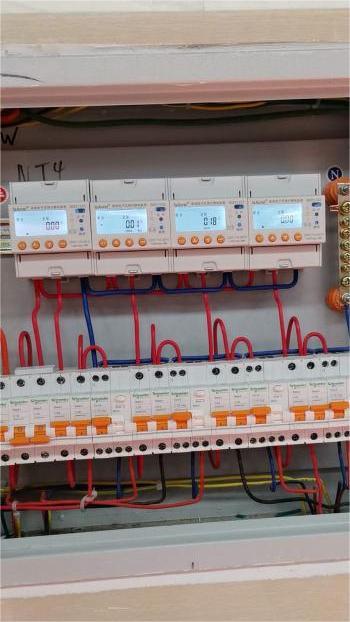

7. Photo on site:
