ADL200-NK/WF WiFi Prepaid Single Phase Energy Meter

< >

Main Features:

• Rated voltage: 110-240V AC;

• Rated current: 60A;

• Communication: WiFi and RS485 (MODBUS-RTU);

• Accuracy: 1.0;

Get A Quote

Details
Parameters
Documents

1.General：

ADL200-NK is a single phase prepaid watt-hour meter. It offers functions such as prepayment control, load control, time control, and Wi-Fi and RS485 communication. It is an ideal meter for reforming traditional energy consumption systems and improving energy consumption management.

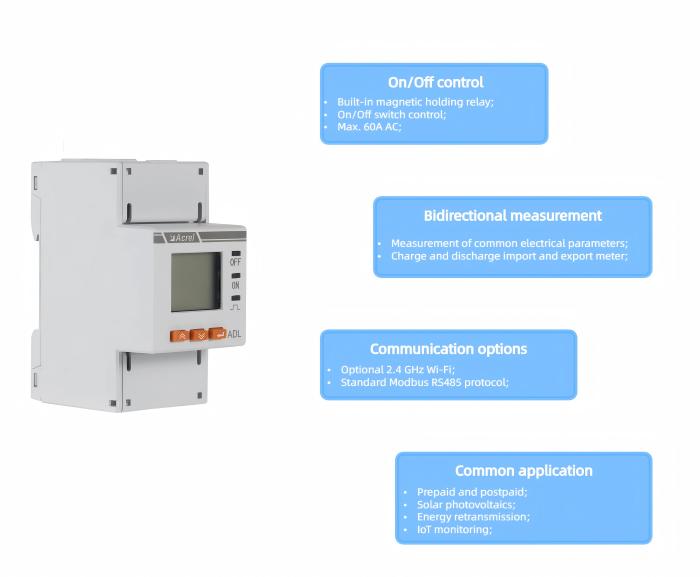

2. Functions:

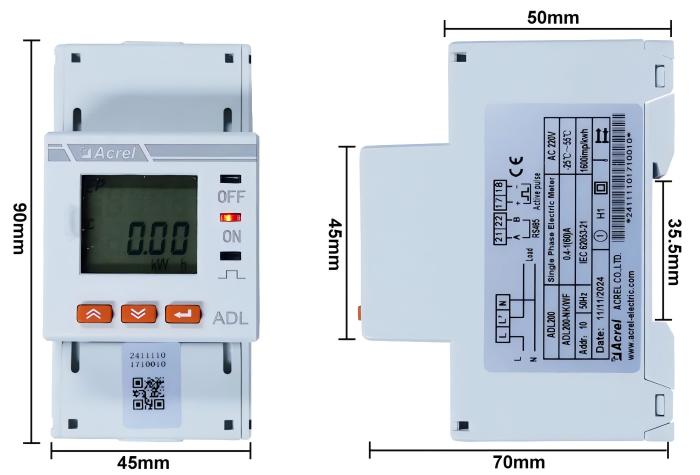

3. Dimension:

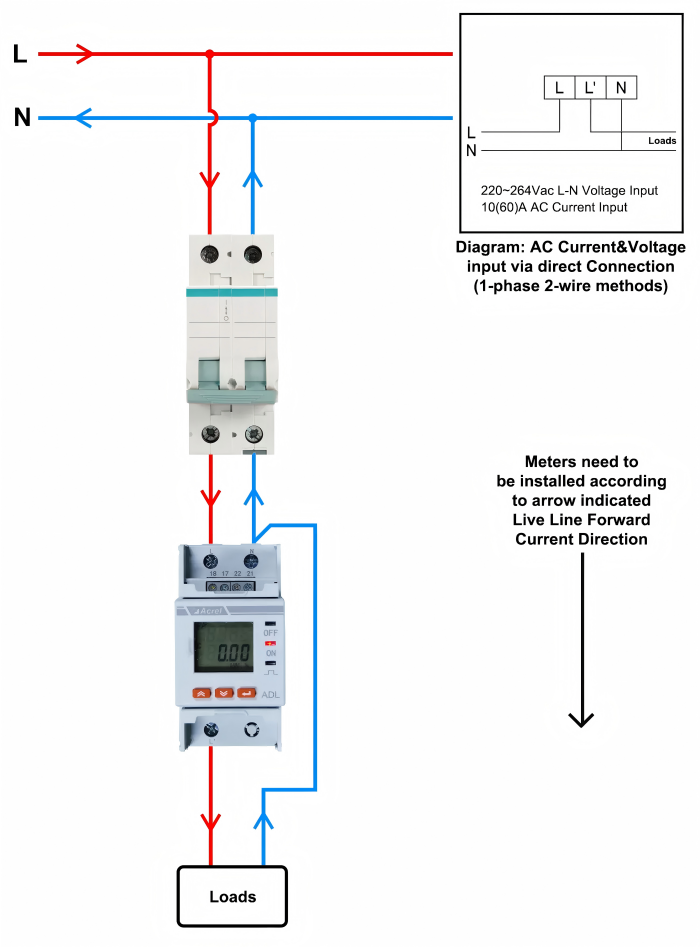

4. Wiring:

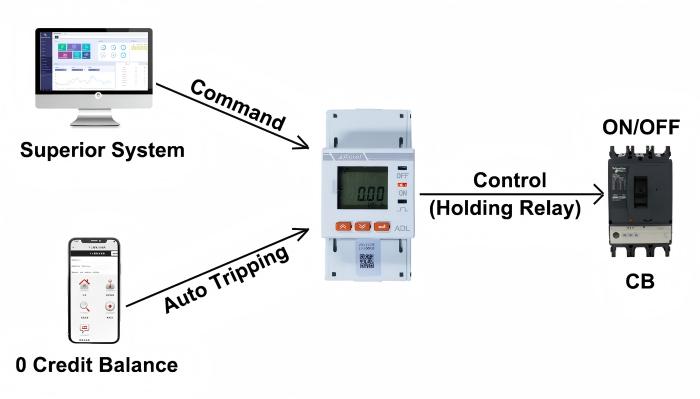

5. Network:

Model			ADL200-NK
Measurement	Voltage	Rated voltage	220V
		Energy consumption	<10VA(Single phase)
		Impedance	>2MΩ
		Accuracy class	Error±0.2%
	Current	Input current	10(60)A

		Energy consumption	<4VA(Single-phaserated current)
		Accuracy class	Error±0.2%
	Power		Active, reactive, apparent power, error ±0.5%
	Network frequency		45～65Hz, Error±0.2%
Metering	Electricity		Active energy level 1
			Reactive energy level 2
	Clock		≤0.5s/d
Digital signal	Power pulse output		1Active optocoupler output
Pulse	Pulse width		80±20ms
	Pulse constant		1600imp/kWh
Communication	Interface and communication protocols		RS485 Port: Modbus-RTU protocol
	Communication address range		Modbus RTU: 1 ~ 247
	Baud rate		Support 1200bps ~ 19200bps
Environment	Operating temperature		-25℃ ~ +55℃
	Storage temperature		-40℃ ~ +70℃
	Relative humidity		≤95℅ (no condensation)
	Altitude		<2000m
