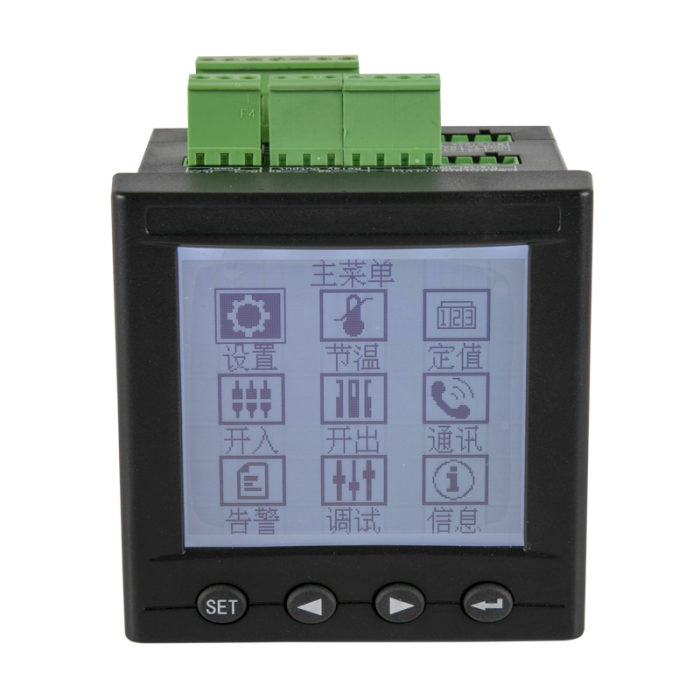

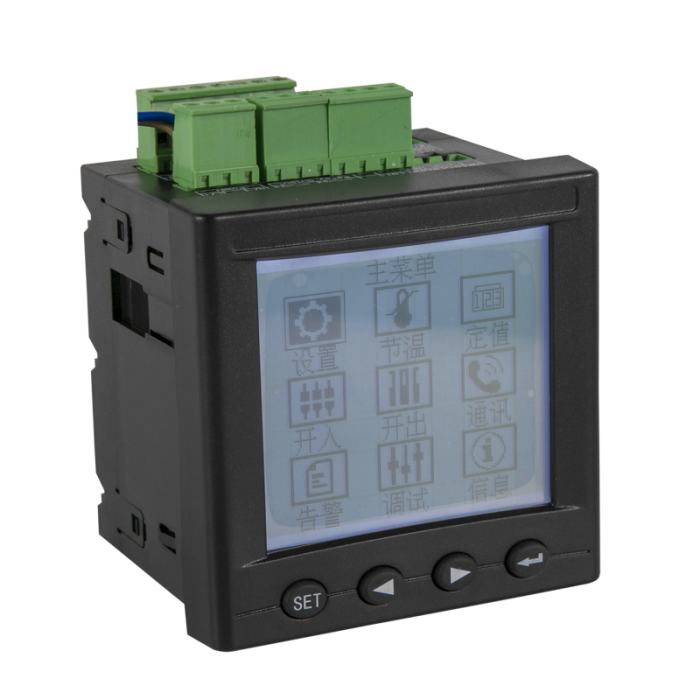

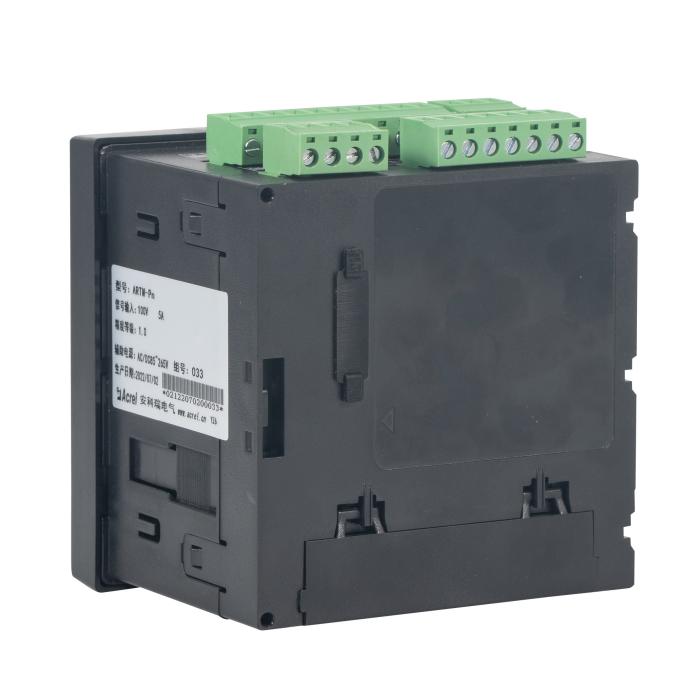

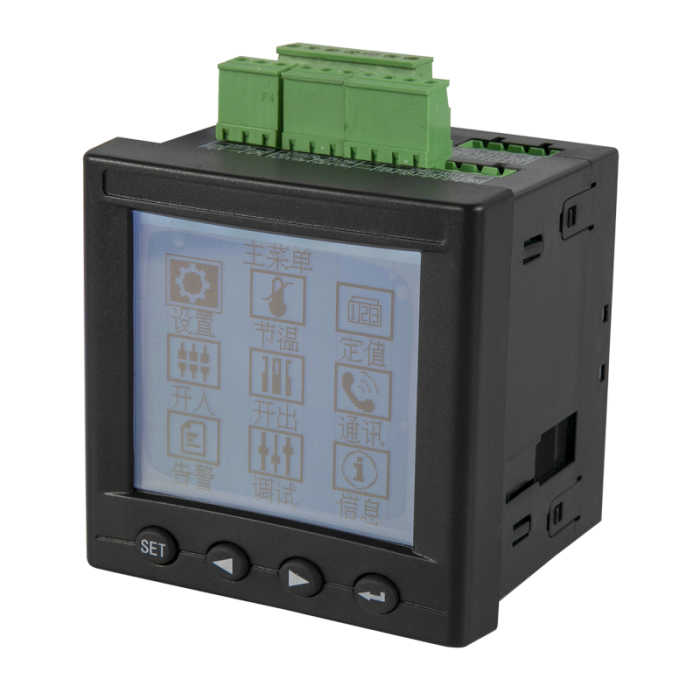

ARTM-Pn Local Temperature Data Display Device
Main features：
• Receive and display temperature data: from up to 60 ATE temperature sensors;
• Communication: RS485, Modbus-RTU;
• Communication distance: 150m in open area and 15m in building;
• Power supply: AC 85~265V, DC 100~300V
• Installation: Panel Mounted (Cutting Dimension: 92*92mm);
- Details
- Parameters
- Documents
1.General：
ARTM-Pn wireless temperature measurement equipment can be used in 3-35kV indoor distribution cabinets, including central cabinets, handcart cabinets, fixed cabinets, ring network cabinets and other distribution cabinets. It is also suitable for 0.4 kV low voltage cabinets. including fixed cabinets, drawers, etc. Wireless temperature sensors can be installed at any heating point in the cabinet, using wireless data transmission technology for real-time transmission of monitored temperature data and displaying such data on ARTM-Pn locally. Additionally, it can be networked via RS485 port for remote intelligent monitoring.
2. Functions:

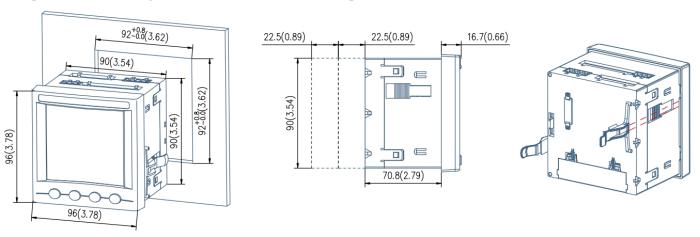

3. Dimension：

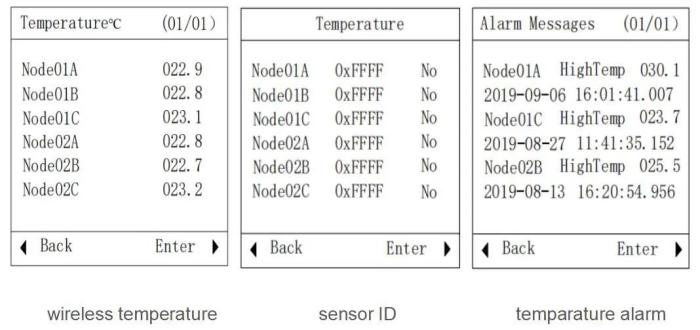

4. Display Sample:

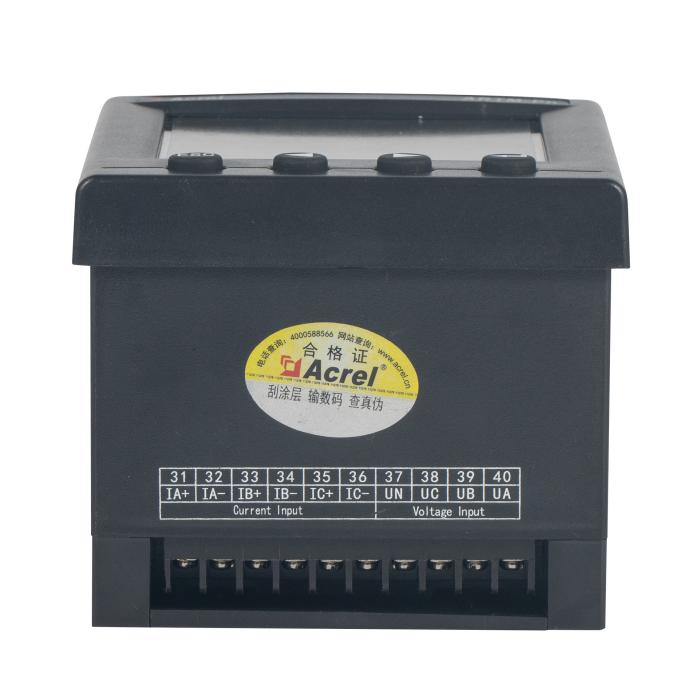

5. Wiring:

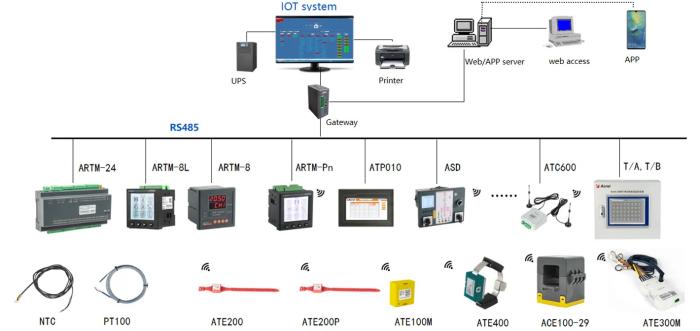

6. Network:
