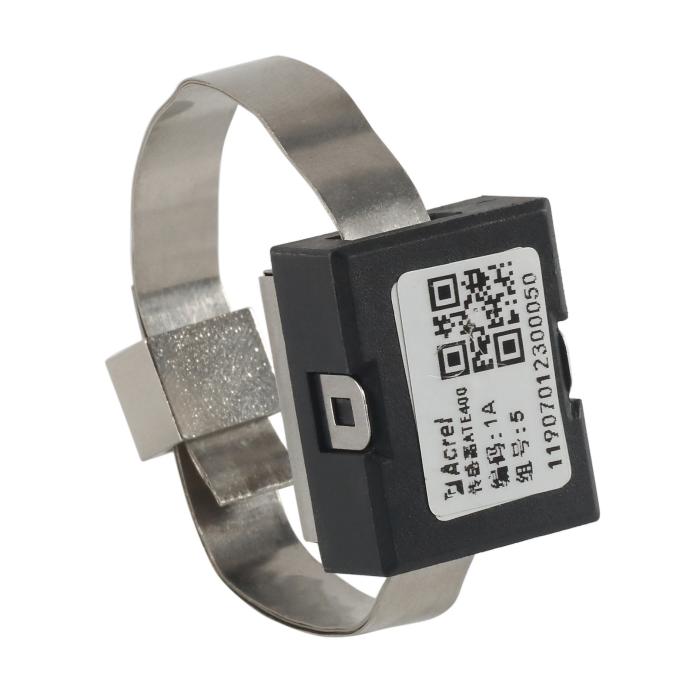

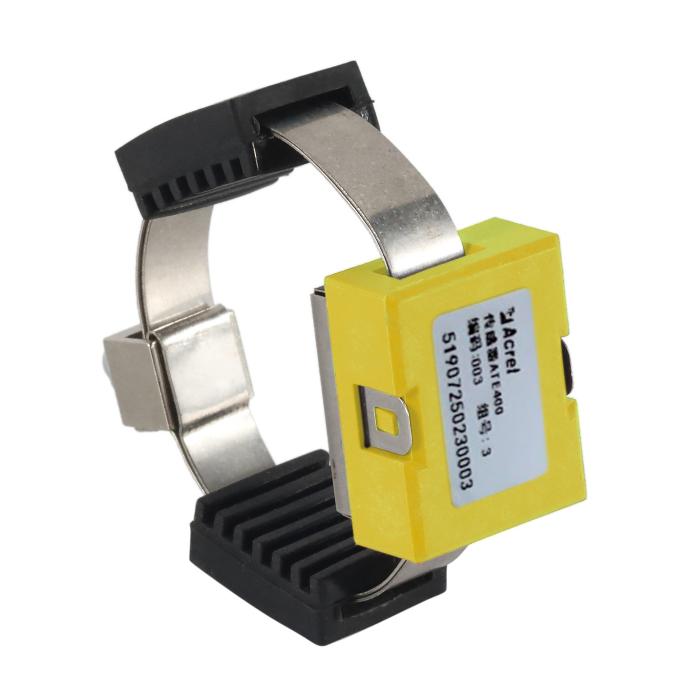

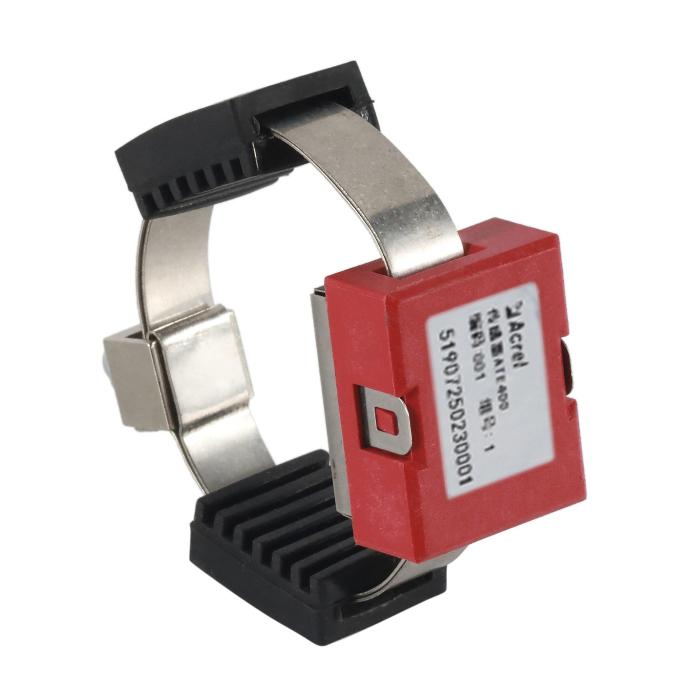

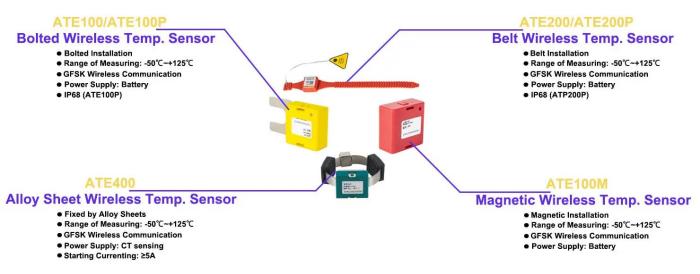

ATE400 Wireless Temperature Sensor for 3-35kV Switchgears
Main features：
• Measuring range: -50℃ ~ +125℃;
• Communication: GFSK wireless communication;
• Application: Switchgear, busbar, collector duct, electrical contact, cable joint, rain main unit, etc.;
• Installation: screwed, magnetic, strap-on, with fixed alloy sheet;
• Protection level: IP68 (optional);
• Power supply: Battery or CT detection power;
• Standard and certificate: CE;
- Details
- Parameters
- Documents
1. General：
ATE series wireless temperature measurement sensor is suitable for 3-35kV indoor switchboards, and also for 0.4kV low-voltage switchboards, such as fixed and drawer switchboards. ATE sensors can be installed at any heating point in the panels, the device uses wireless data transmission technology for real-time transmission of monitored temperature data. Additionally, it can be transmitted to a display device or remote intelligent monitoring system.
2. Functions:

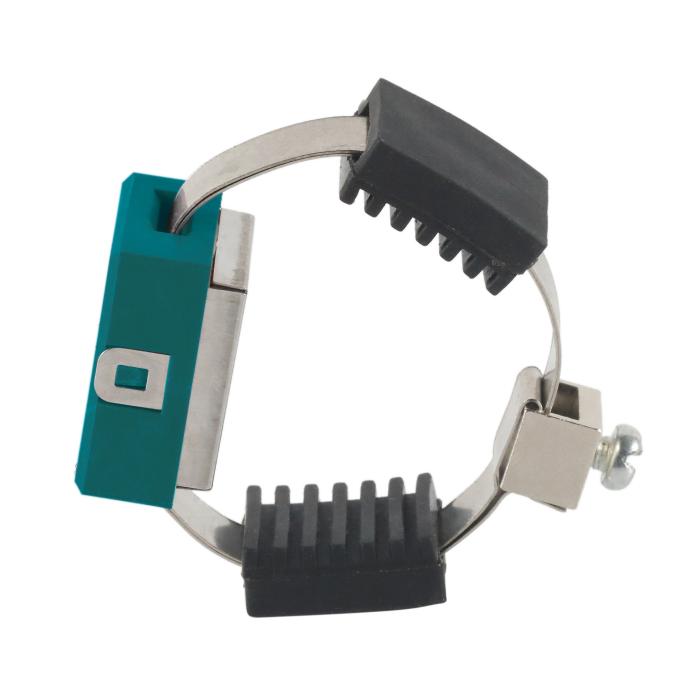

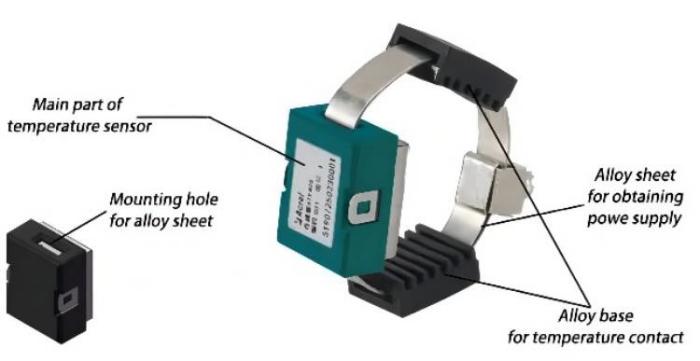

3. Structure:

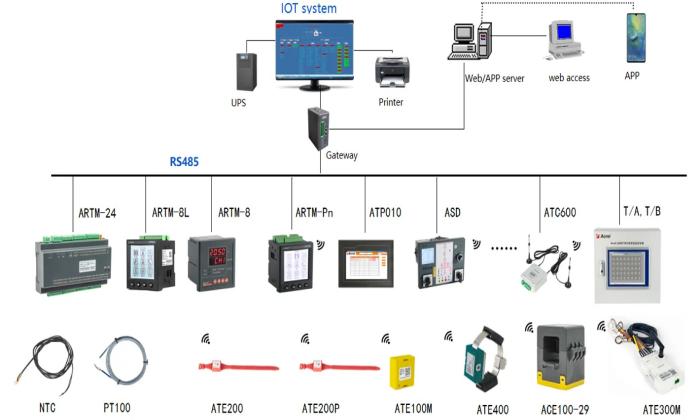

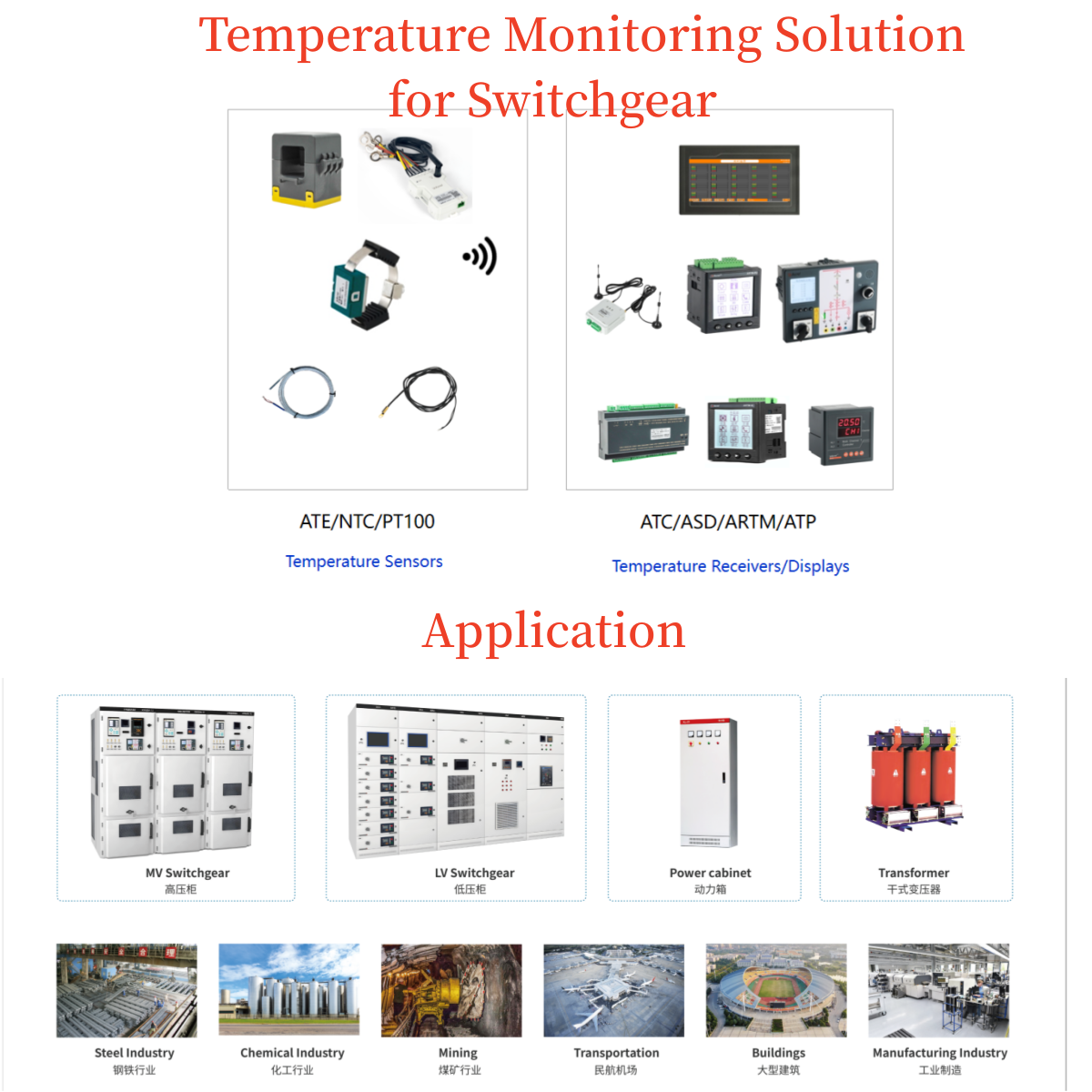

4. Network:

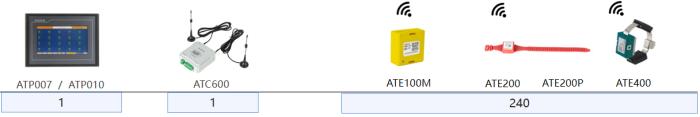

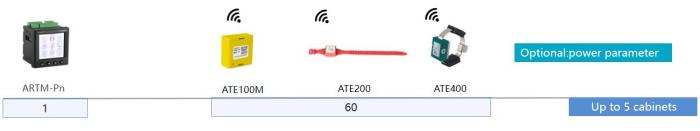

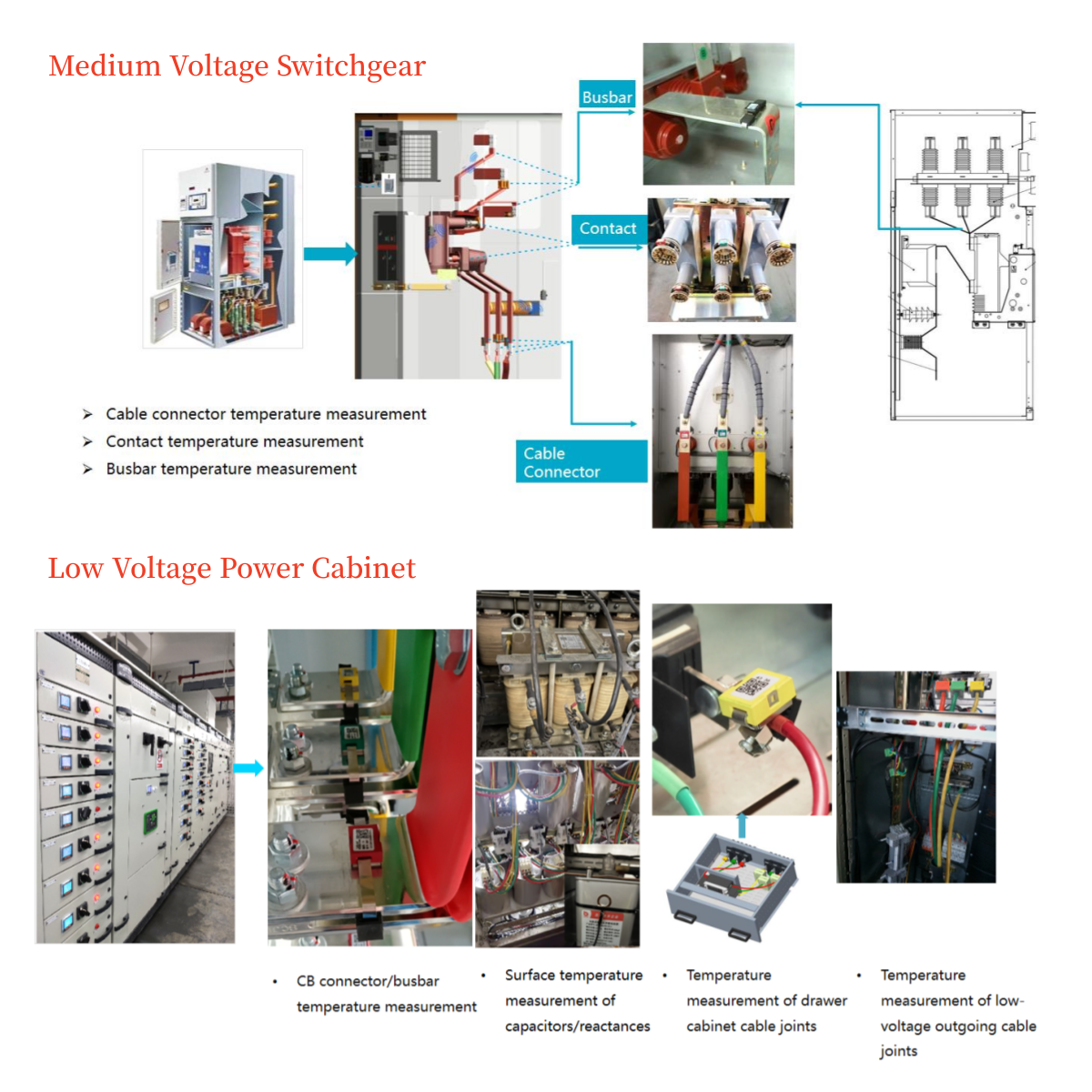

Wireless temperature measurement of electrical contacts in high and low voltage cabinets:

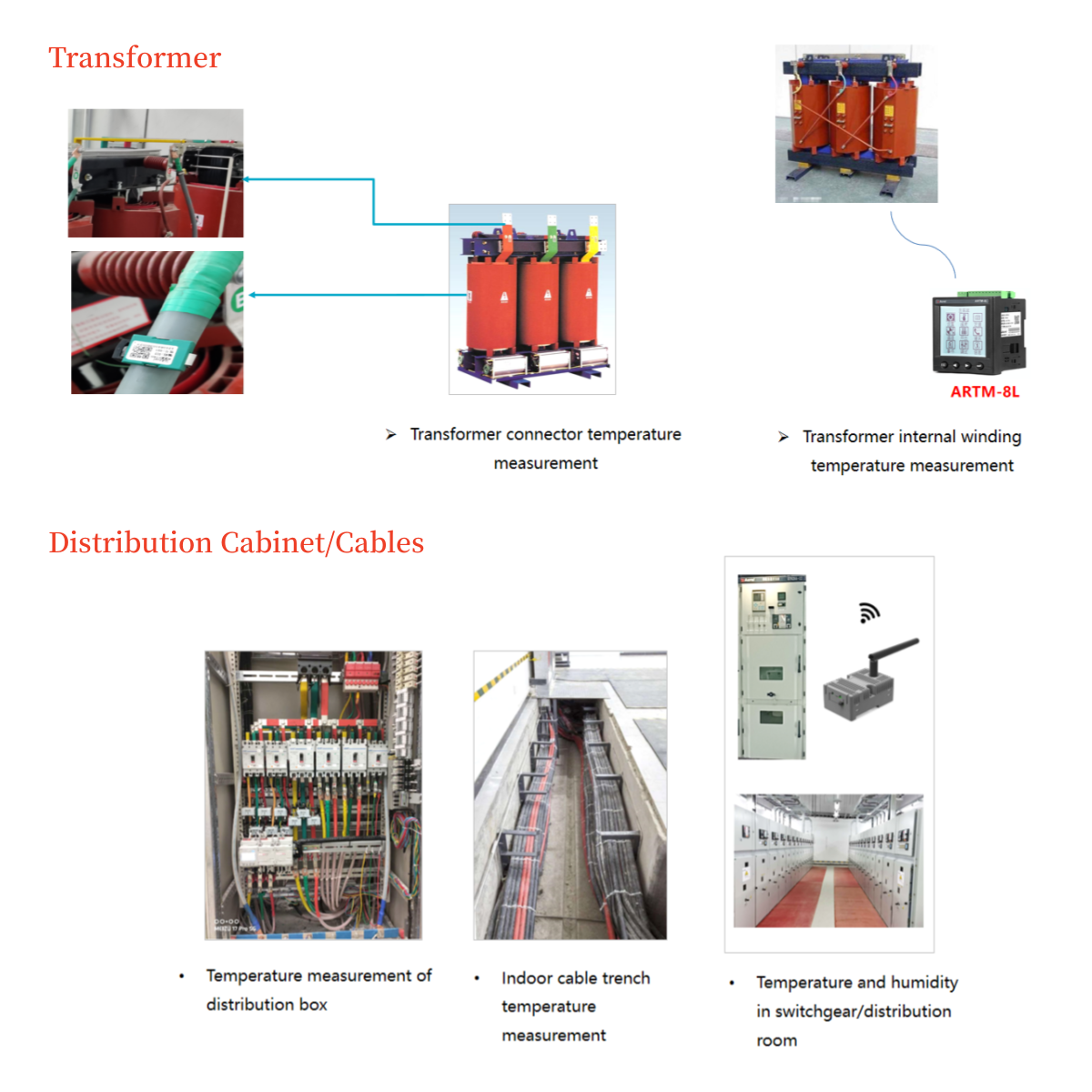

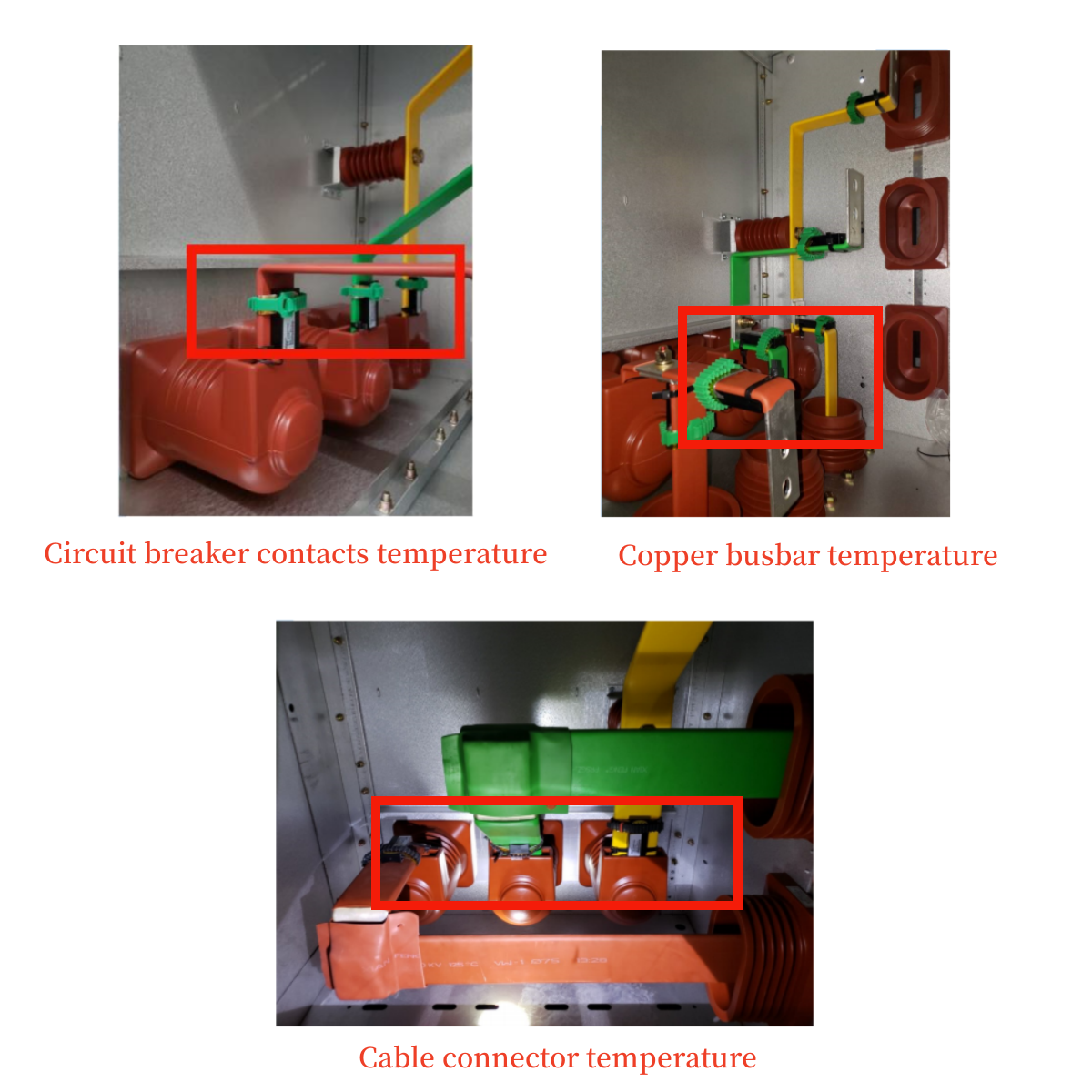

5. Applications:
