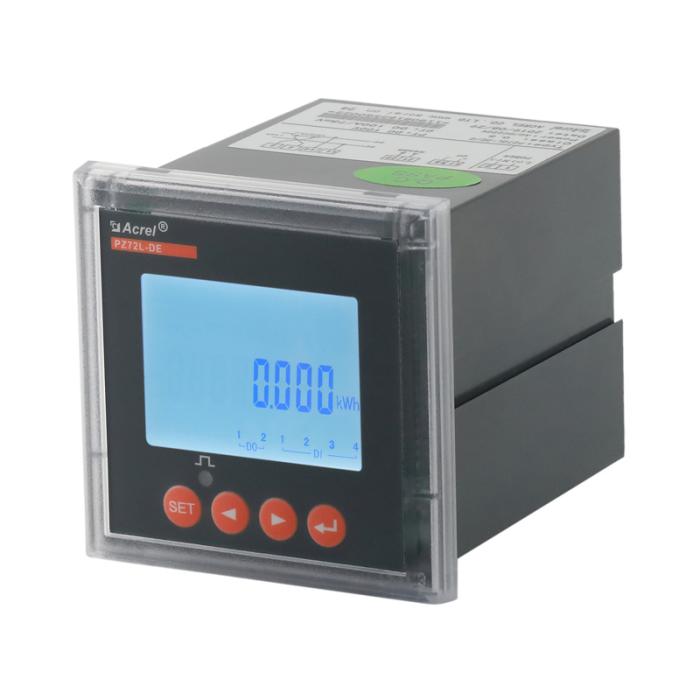

PZ72L-DE DC Panel Energy Meter

< >

Main features：

• Rated voltage: 1000V DC;

• Rated current: 10A DC(direct connection); 0/4~20mA DC(via Hall sensor); 75mV(via shunts)

• Communication: RS485(MODBUS-RTU);

• Optional functions: DI/DO; Relay alarm output;

• Applications: DC panels, solar photovoltaics, telecommunications base stations and charging posts, etc.;

• Power supply: 85~265V AC/DC; 20~60V DC;

• Standard and certificate: CE;

Get A Quote

Details
Parameters
Documents

1.General：

PZ series smart DC energy meter is designed for DC panels, solar power supplies, telecommunications base stations, charging piles and other applications. This series of instruments can measure voltage, current, power, forward and reverse energy in DC system. It can not only be used for local display, but also can be connected with industrial control equipment and computers to form a measurement and control system. At the same time, it has a variety of peripheral interface functions for users to choose from: with RS485 communication interface, using Modbus-RTU protocol; It can be equipped with relay alarm output and switch input/output. According to different requirements, the transformation ratio and communication are configured and controlled through the buttons on the instrument panel.

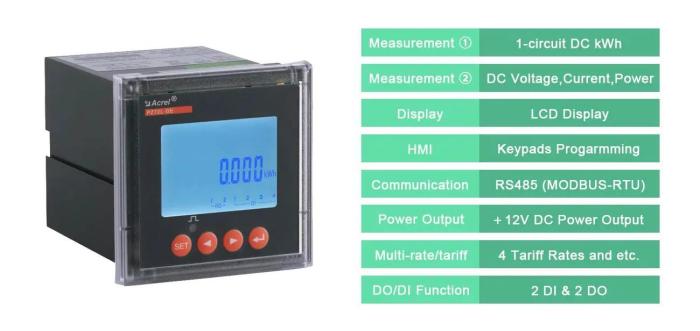

2. Functions:

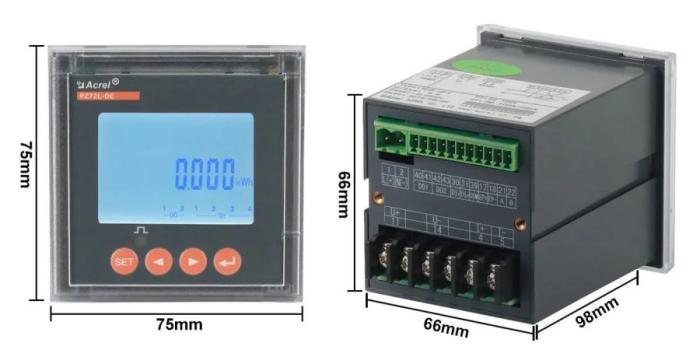

3. Dimension：

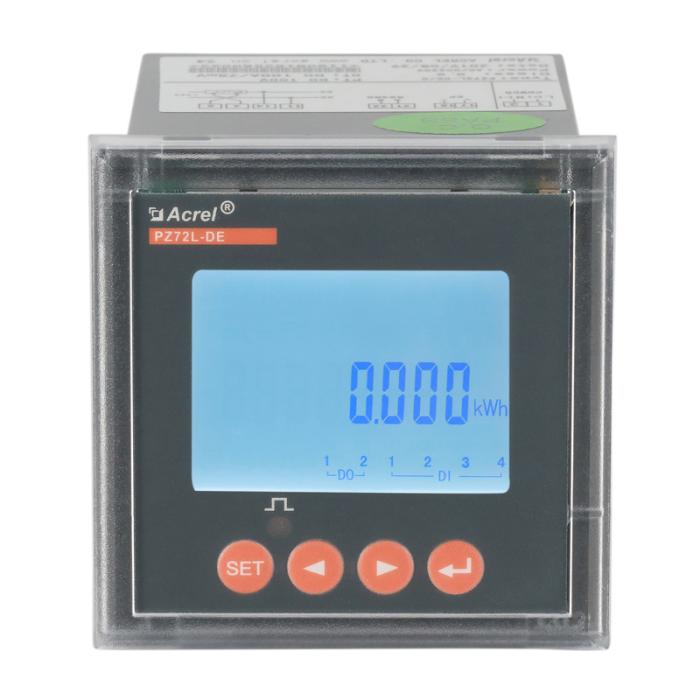

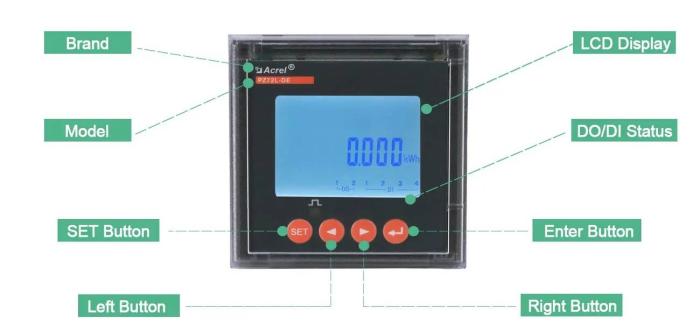

4. Front Panel:

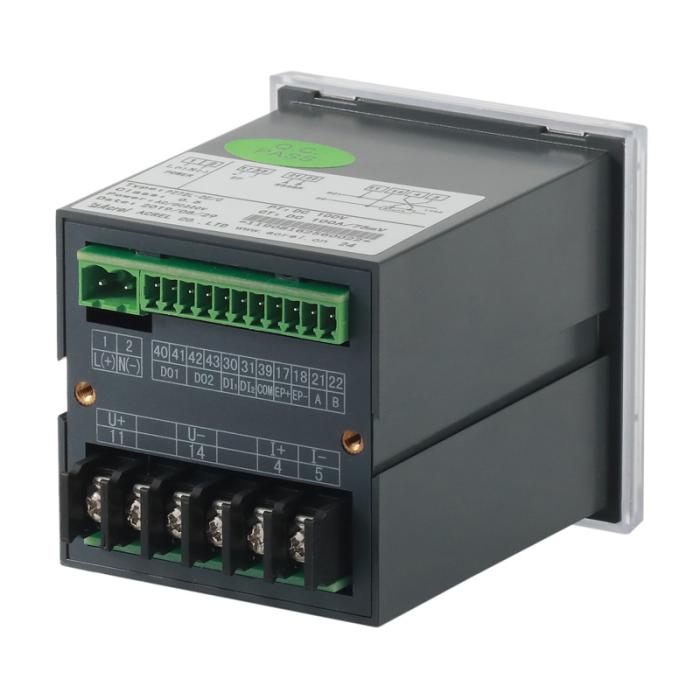

5. Wiring:

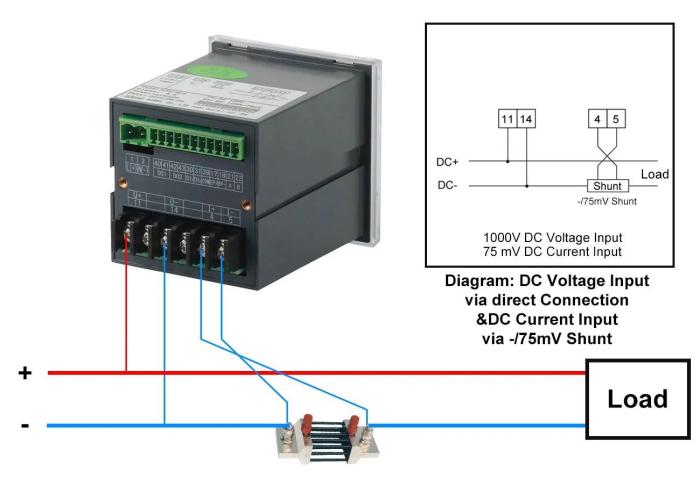

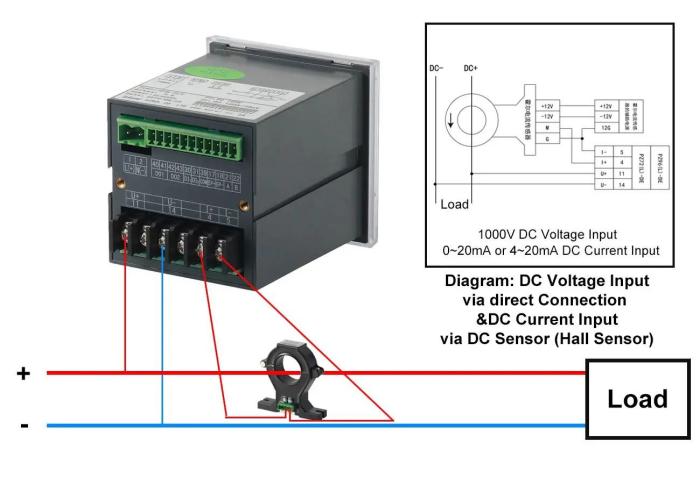

With shunt:	With Hall sensor:

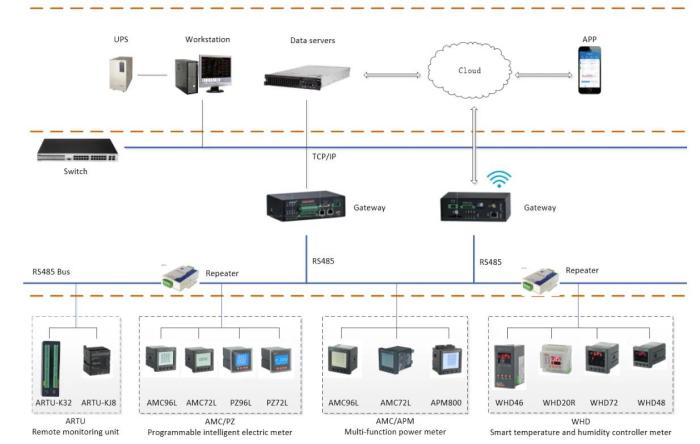

6. Network:

Technical parameter		Index
Signal	DC voltage	Input range		0~ 5V, 0~ 100V, 0~ 500V, 0~ 1000V, 0~ 1500V(only PZ96(L))
		Input impedance		≥6kΩ/V
	DC current	Input range		0~9999A(External shunt or Hall element, programmable range)
		Shunt		The support output are 50mV and 75mV
		Hall sensor		The support output are 0 ~ 20mA, 0 ~ 5V
		Consumption		≤1mW
	Overload	1.2 times continuous normal operation, 2 times continuous 1 second
Accuracy class		0.5 class
Pulse constant		Voltage and current specifications：750V,300A,default pulse constant 100imp/kWh
		Voltage and current specifications：1000V,300A,default pulse constant:100imp/kWh
		Voltage and current specifications：1000V,200A,default pulse constant 100imp/kWh
Functions	Measurement	Measure DC voltage U, current I and power P
	Metering	Measure current combined energy, forward energy and reverse energy.
	Time sharing function	Each year can be divided into 4 time zones. Each time zone table can be set with 12 daily time periods and 4 rates (F1, F2, F3, F4 are SHARP,PEAK,SHOULDER and OFF-PEAK). The minimum interval of time periods is 15 minutes. Time periods can be set across zero(LCD Meter only)
	Historical data statistics function	Count historical energy of last 12 months (energy of each rate)(LCD Meter only)
	Switch input/outputfunction	PZ72 has two switch output and two switch input. PZ96 has two switch output and four switch input. The switch output is relay output, which can realize remote control and alarm output. The switch input can not only collect and display the local switch status information, but also realize the remote transmission function through the RS485 of the instrument, namely the remote signaling function
	Display	LCD（backlight delay time adjustable）or LED
	Communication	RS485 interface; half duplex, photoelectric isolation; Modbus-RTU protocol; baud rate 1200, 2400, 4800, 9600, 19200, 38400bps optional, modulation infrared fixed 1200bps.
	Switch input/output	DI	Dry contact input, built-in power supply, photoelectric isolation
		DO	Two relay output, normally open contact, capacity 2A/30VDC or 2A/250VAC
Operatingvoltage	Voltage range	85~265VA,50/60Hz; 20~60VDC; 12VDC; 100~350VDC(declare in order)
	Consumption	≤2W
Insulation resistance		≥100MΩ
Withstand voltage		3KV/1min between power supply terminal group and signal input/output terminal group(RMS)
Environment	Temperature	Operating temperature：-40℃ ~60℃; Storage temperature：-40℃ ~70℃
	Humidity	≤93%RH,no condensation,no corrosive gas
	Altitude	≤ 2500m
