AGF-MXXT DC Multiple Circuits Monitoring Device for Photovoltaic Combiner Box

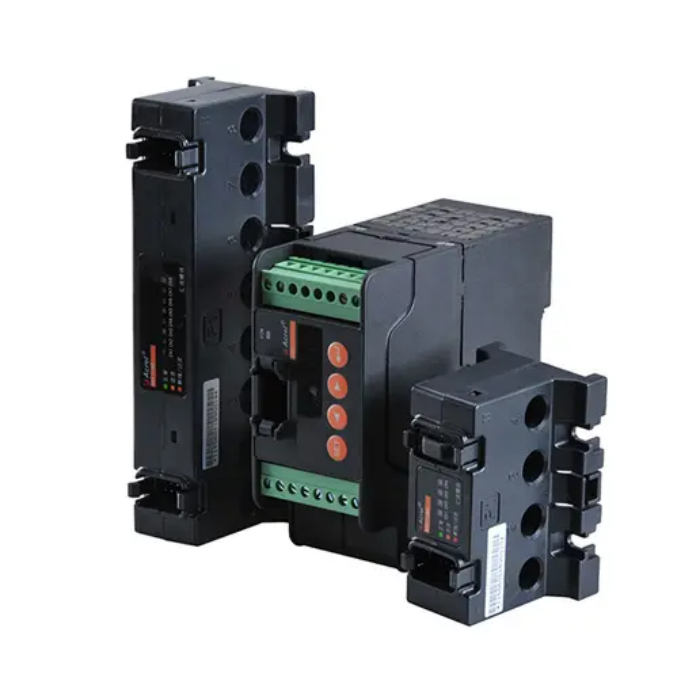

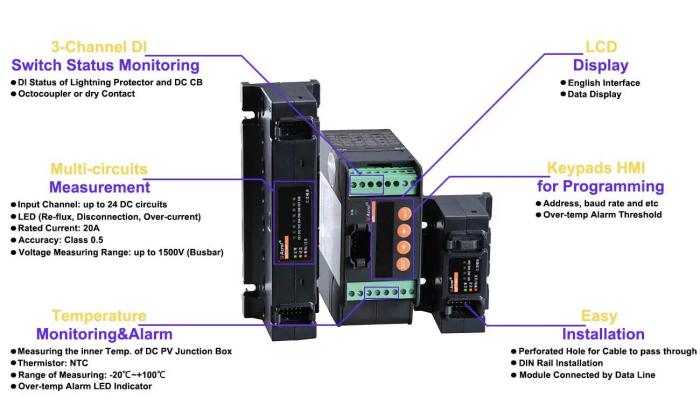

Main features：
● Measurement: DC Current of up to 24 Circuits (with Hall Sensors); Voltage measurement range for busbar is up to 1.5kV DC
● Communication: RS485(MODBUS-RTU)
● Application: Combined with a photovoltaic combiner box for DC multi-circuit monitoring
● Temperature monitoring: internal temperature of the photovoltaic combiner box
● DI Function: 3-channel digital input
● Power supply: 1000V DC or 1500 VDC
● Standard and certificate: CE; LVD; EMC;
- Details
- Parameters
- Documents
1.General：

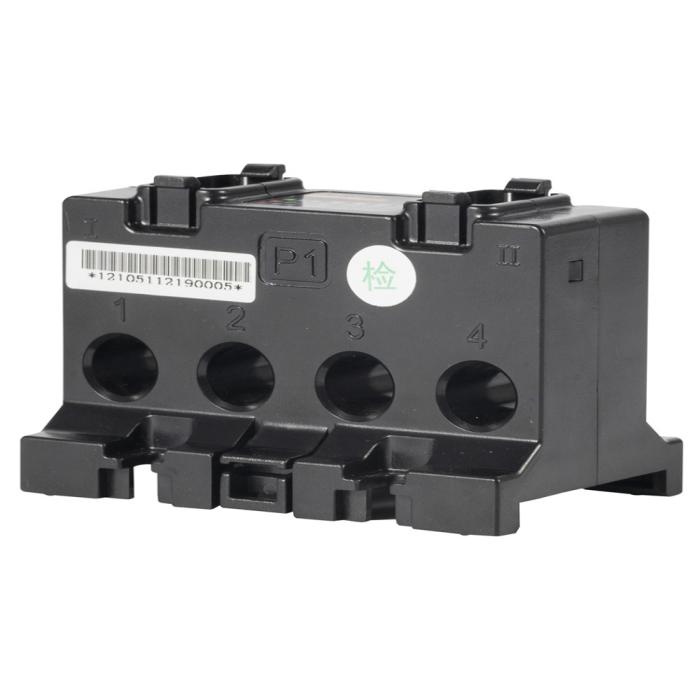

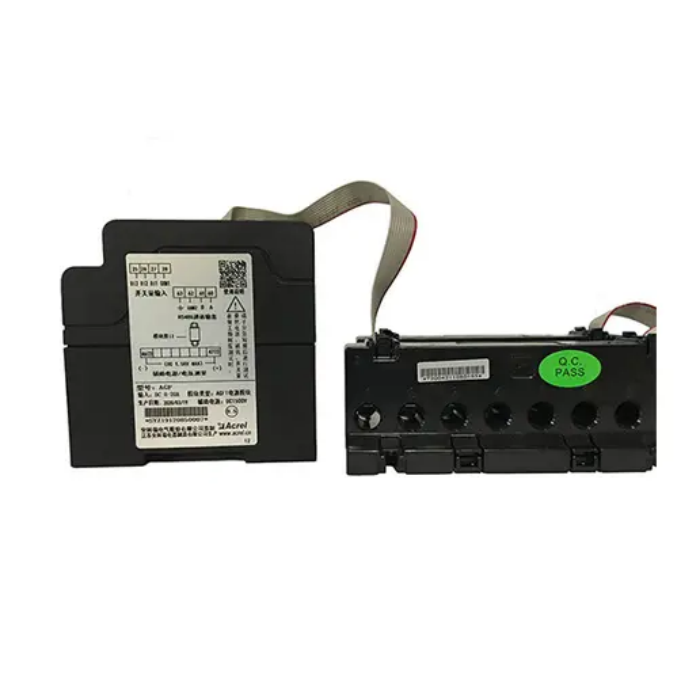

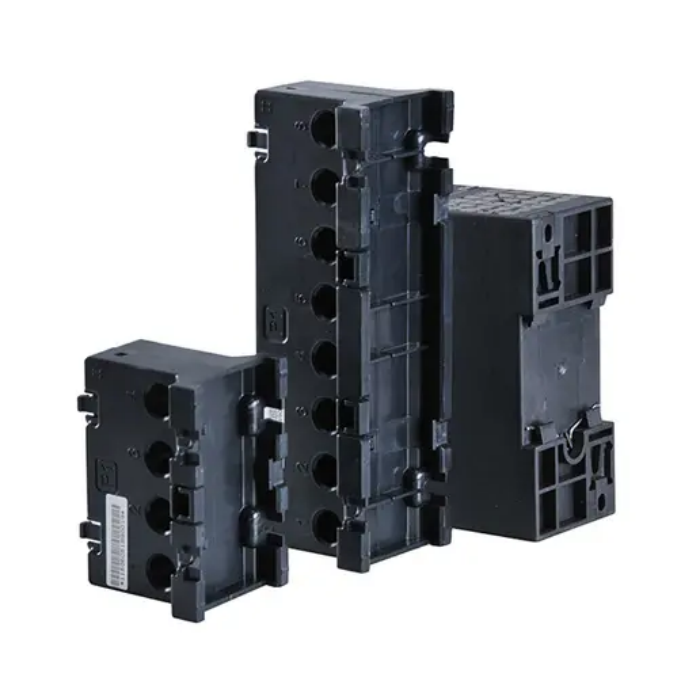

AGF-MXXT photovoltaic confluence acquisition perforated device is specially designed for smart photovoltaic combiner boxes. It is used to monitor the operating status of panels in photovoltaic arrays, string current measurement, detect the status of lightning devices in combiner box and status of DC circuit breaker. The device is equipped with RS485 (Modbus) communication port to transmit all data to the master device.
2. Functions:

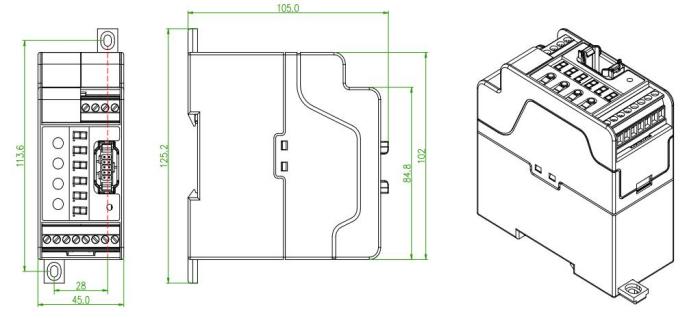

3. Dimension：

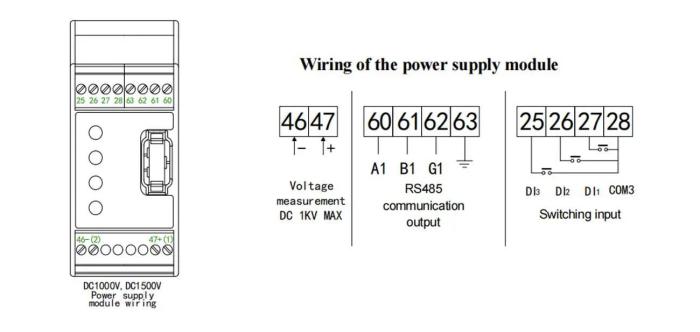

4. Terminals:
5. Installation:

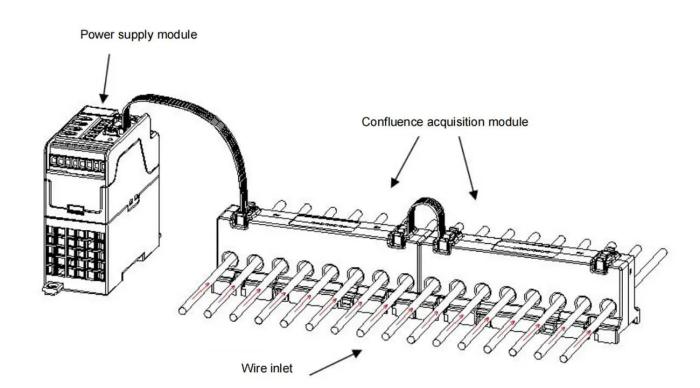

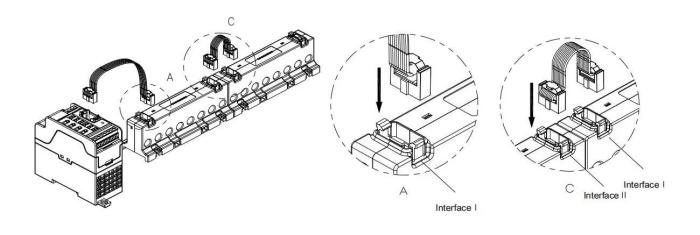

Cable wiring through perforation:
Module connected by data line:

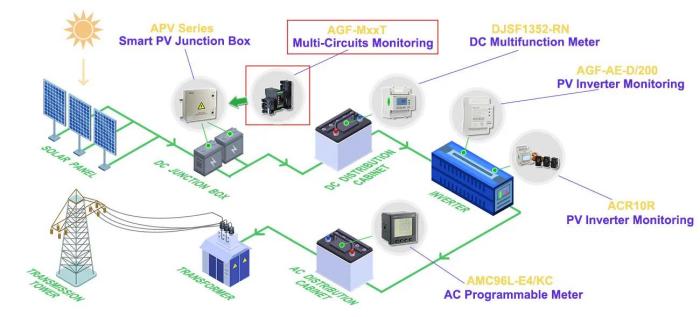

6. Network:

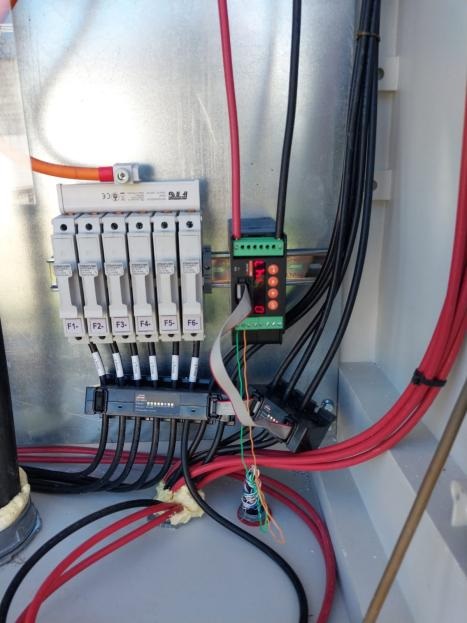

7. Photo on site:
