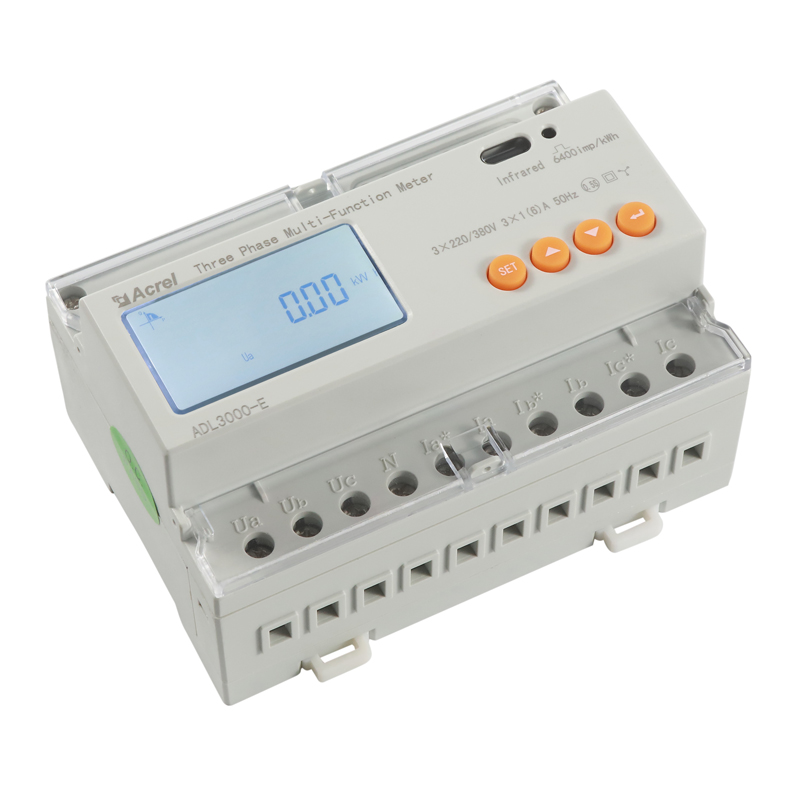

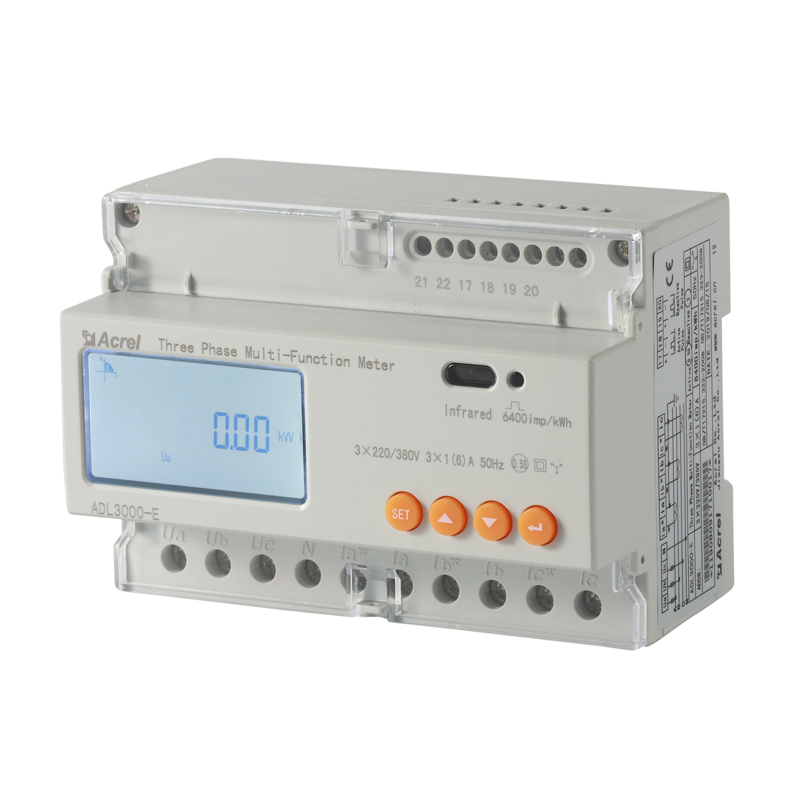

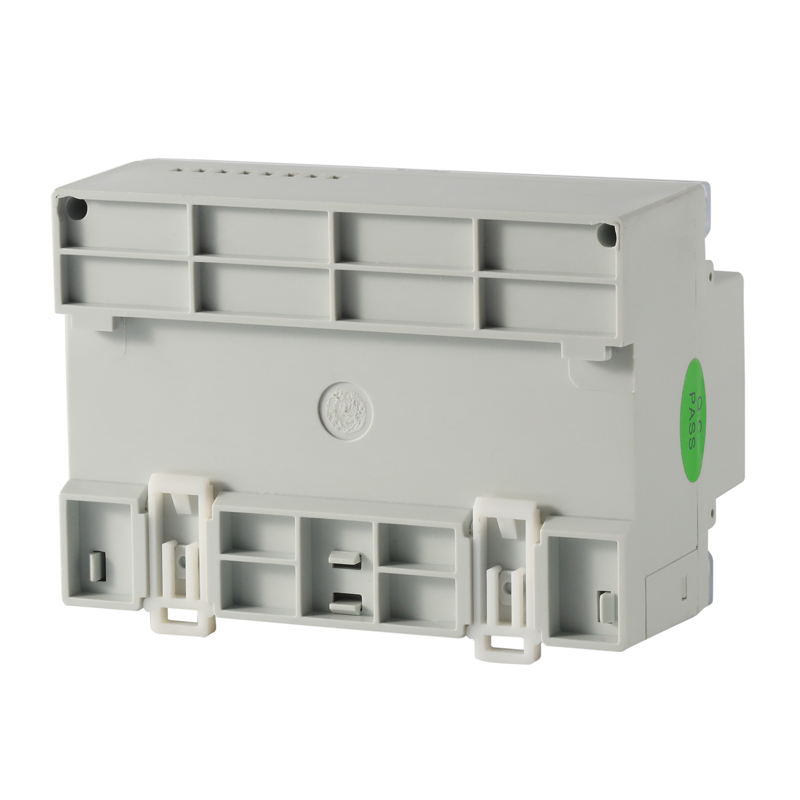

ADL3000-E UL Three Phase Din Rail Multifunctional Energy Meter

< >

Main features：

• Rated voltage: 3x220/380V, 3x57.7/100V (3P4W); 3x380V, 3x100V (3P3W);

• Rated current: 3x10(80)A; 3x1(6)A；

• Accuracy: kWh Class 0.5S, kVarh Class 2;

• Communication: RS485 (MODBUS-RTU) and Infrared;

• Multiple rate: 4 rates;

• Harmonic: 2~31st harmonic and total;

• Additional function: Cable temperature measurement, DI/DO;

• Standard and certificate: UL; IEC; CE; EAC;

Get A Quote

Details
Parameters
Documents

1. General：

ADL3000-E is a smart meter designed for power supply systems, industrial and mining companies, and public utilities to calculate electricity consumption and manage electrical demand. It features high precision, small size and simple installation. It integrates measurement of common power parameters, electrical energy measurement and evaluation management. Provides various types of electricity data statistics for the last 48 months. It has detection of content of total harmonics and subharmonics from 2nd to 31st Content. It realizes remote communication and remote control with switching input and relay output, and has alarm output. It is equipped with an RS485 communication port and adapted to MODBUS-RTU. DTSD1352 can be used in all types of control systems, SCADA systems and energy management systems.

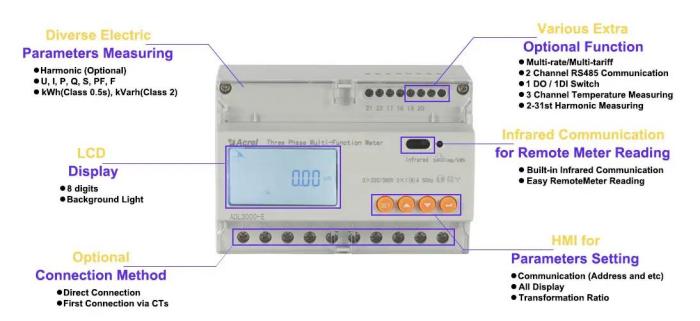

2. Functions:

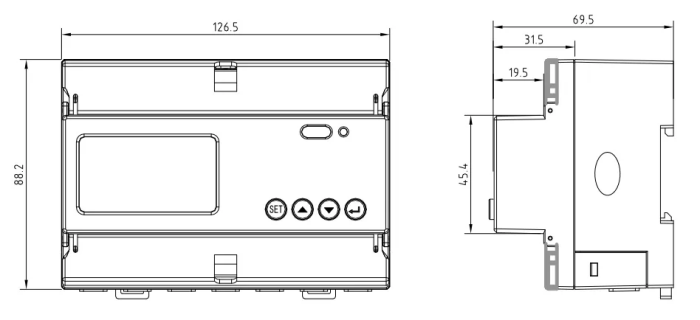

3. Dimension：

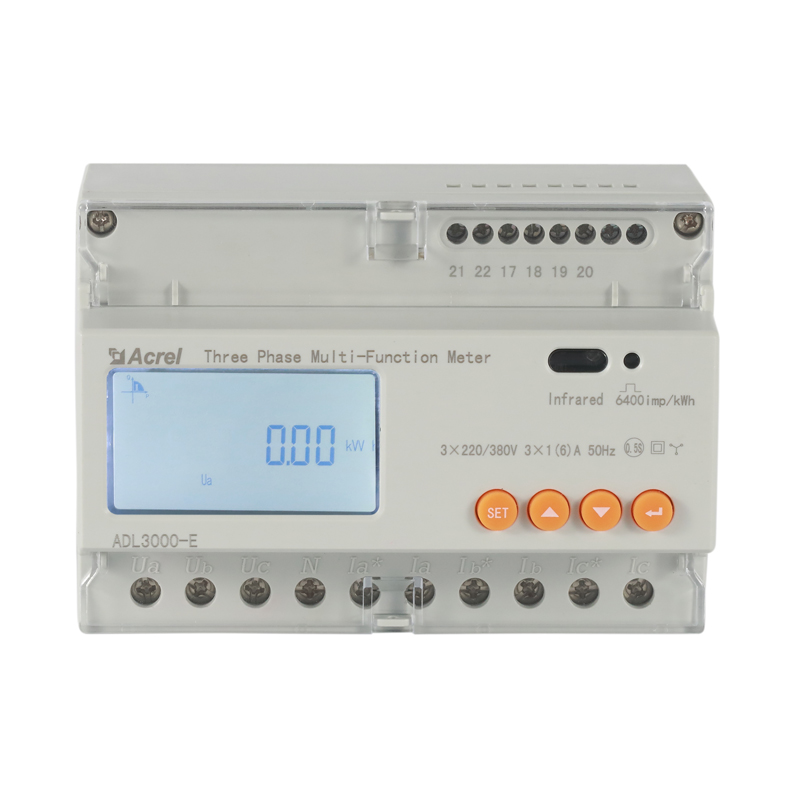

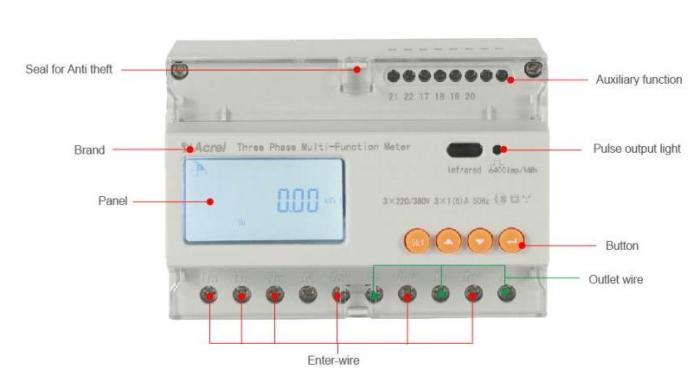

4. Front Panel:

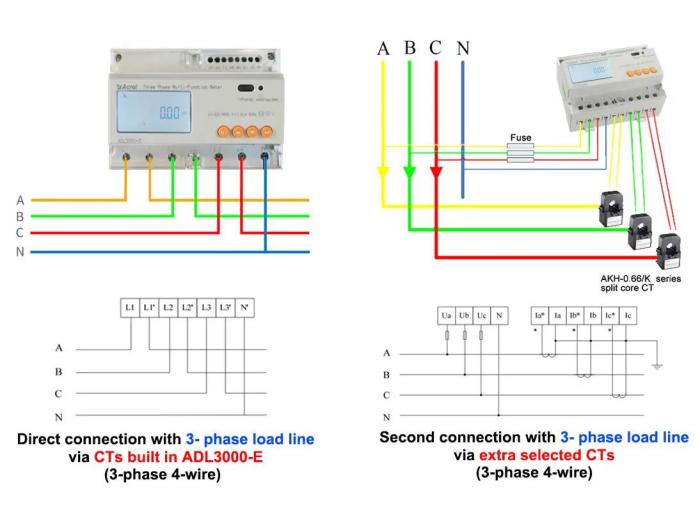

5. Wiring:

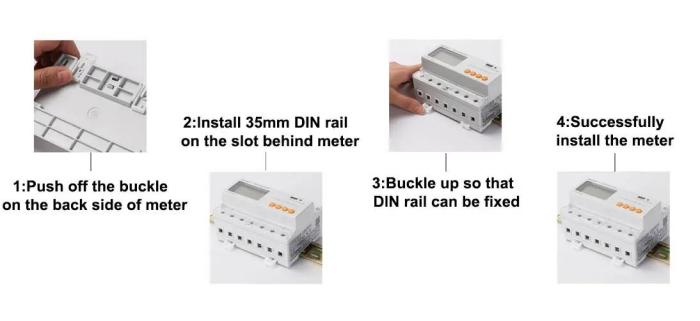

6. Installation:

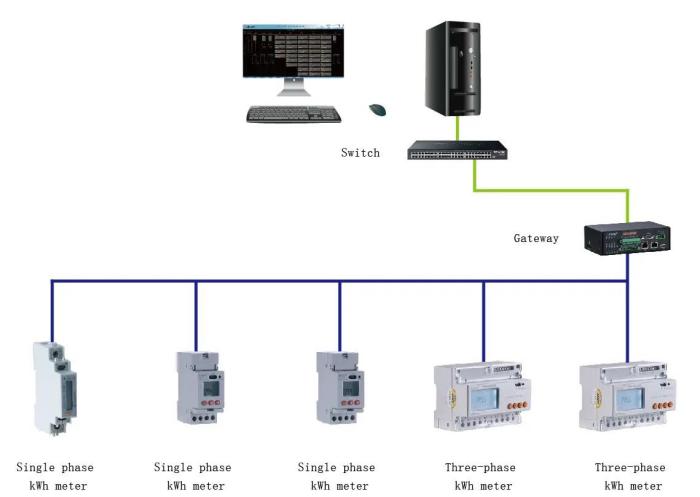

7. Network:

Specifiction		Three-phase 3 wires / 4 wires
Voltage	Reference voltage	3×100V, 3×380, 3×57.7/100V, 3×220/380V
	Consumption	<10VA (Each Phase)
	Impedance	>2MΩ
	Accuracy class	Error±0.2%
Currrent	Current input	3×1(6)A, 3×1(6)A(external transformer), 3×10(80)A, 3×10(100)A(external transformer)
	Consumption	<1VA (single-phase rated current)
	Accuracy class	Error±0.2%
Power		Active, reactive, apparent power, error±0.5℅
Frequency		45～65Hz，Error±0.2%
Temperature		-40°C～99°C
Energy		Active energy (accuracy class: 0.5, 1), reactive energy (accuracy class 2)
Clock		≤0.5s/d
Power pulse output		1 active optocoupler output, 1 reactive optocoupler output
Switch output		1 switch output, maximum allowable voltage: DC/AC 220V
Switch input		1 optocoupler input, maximum allowable voltage: DC/AC 220V
Pulse width		80±20ms
Pulse constant		6400imp/kWh, 400imp/kWh (corresponds to basic current)
Interface and communication		RS485: Modbus RTU
Communication address range		Modbus RTU: 1 ~ 247；
Baud rate		1200bps ~ 19200bps
Relative temperature		-25℃ ~ +55℃
Relative humidity		≤95℅(No condensation)
