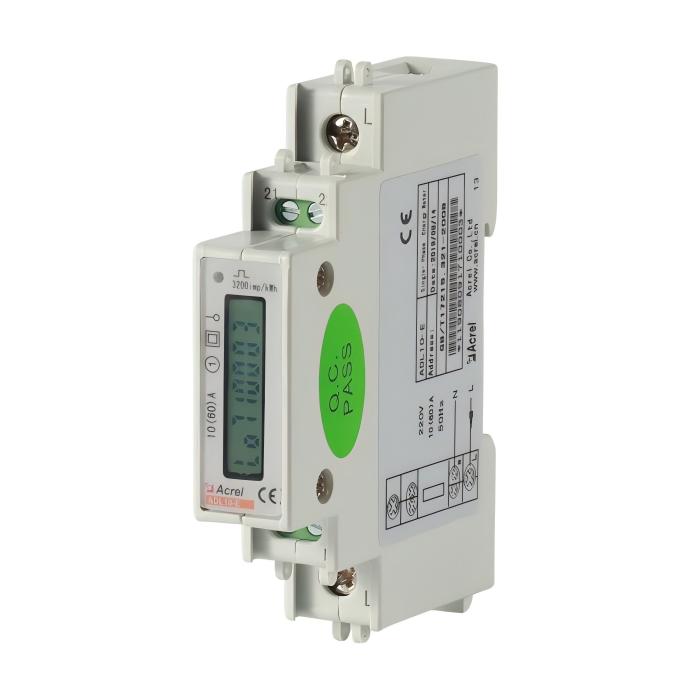

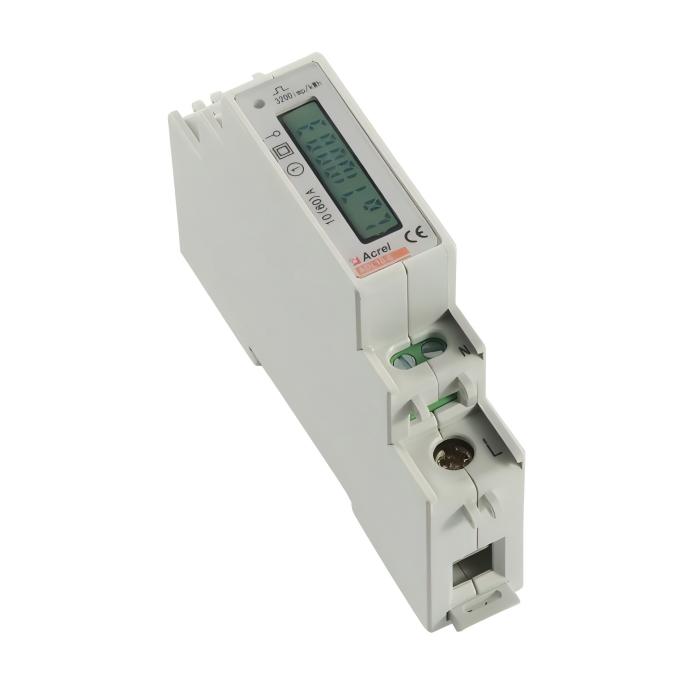

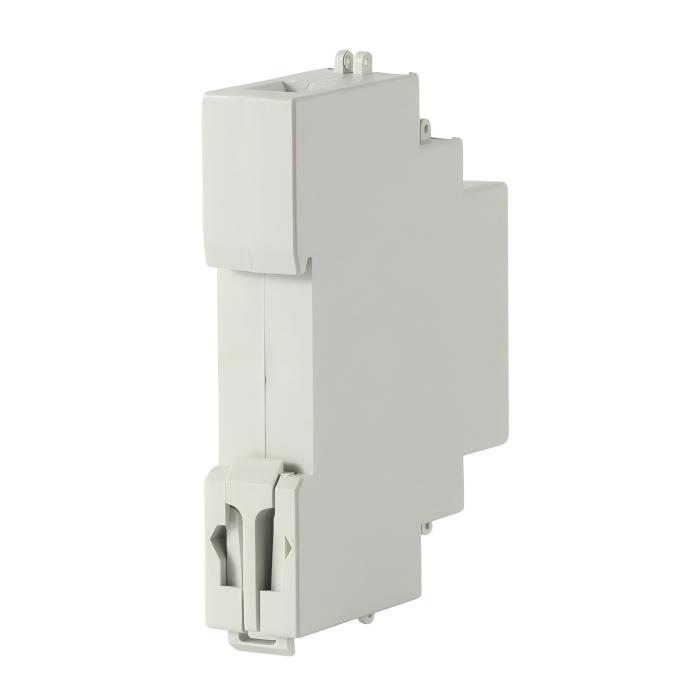

ADL10-E Single Phase Din Rail Energy Meter

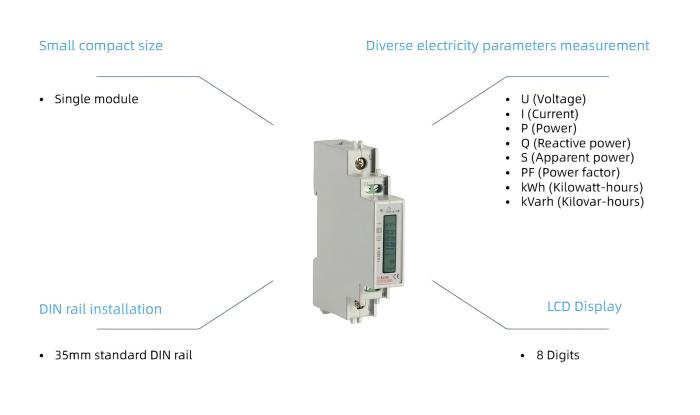

Main features：
• Rated current: 10 (60)A;
• Rated voltage: AC 220V;
• Small and compact size;
• Communication: RS485 (MODBUS-RTU);
• Display: LCD screen;
• Certificate: IEC; CE; EAC;
- Details
- Parameters
- Documents
1. General：
ADL10-E is single-phase electric din rail 1P energy meter. Measurement, statistics, communication and LCD display functions are integrated in this meter. It has advantages of high stability, low power consumption and data saving after power failure, etc.
2. Functions:

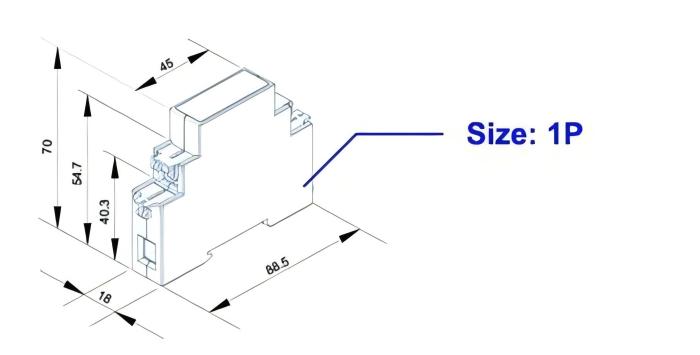

3. Dimension：

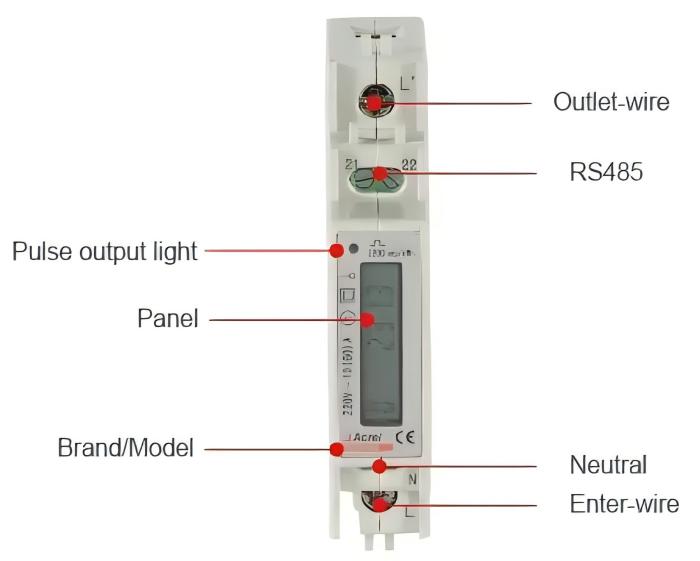

4. Front panel:

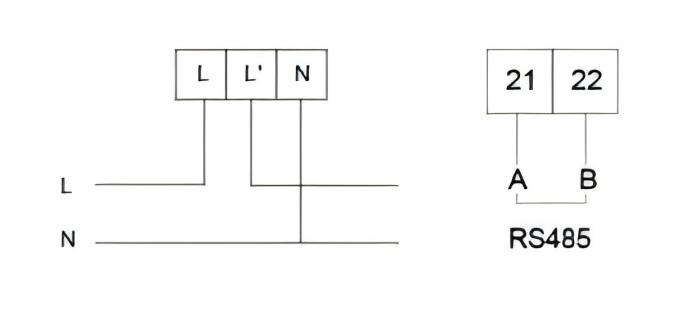

5. Wiring:

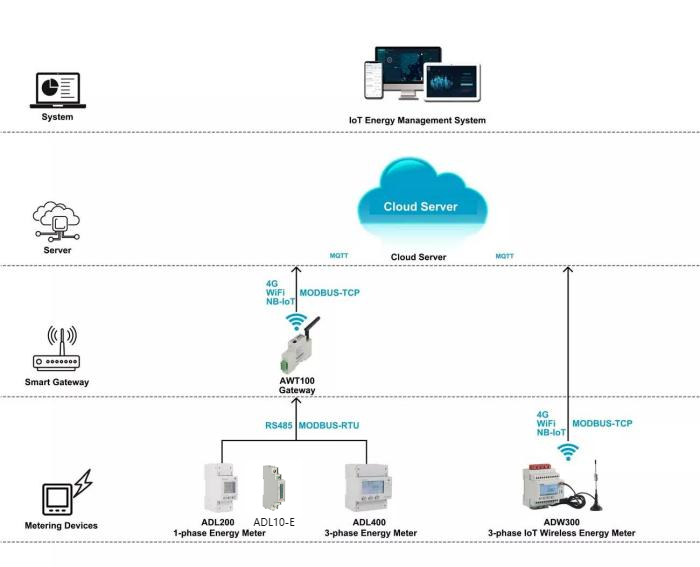

6. Network:
