ABAT100 Lead Acid Battery Monitoring Module
Main features：
• Monitoring: Monitor battery voltage, internal resistance and negative temperature;
• Monitoring capability: one S module monitors one battery;
• Monitoring scope: 2V, 6V, 12V battery with capacity less than 3000AH;
• Single internal resistance: 50～65535uΩ;
• Negative temperature: -5 ℃ ~ +105 ℃;
• Communication interface: UART port, compatible with MODBUS protocol;
• Insulation withstand voltage: 2000VAC;
• Battery type: lead acid battery;
- Details
- Parameters
- Documents
1.General：
Acrel ABAT100 series battery online monitoring system can provide battery performance information such as voltage, internal resistance and internal temperature including SOC and SOH, and can provide early warning and battery equalization for faulty batteries to Ensure the backup time of the battery pack and extend its service life. The system has monitoring functions and is easy to install, maintain and access. The system mainly consists of ABAT100-S single battery monitoring module, ABAT100-C group battery monitoring module, ABAT100-HS collector module and touch screen, etc. Alarm and real-time data can be queried and parameters can be set by touch button. Screen and monitoring platform can be selected to realize centralized network management.
2. Modules
|
Modules |
Descriptive function |
|

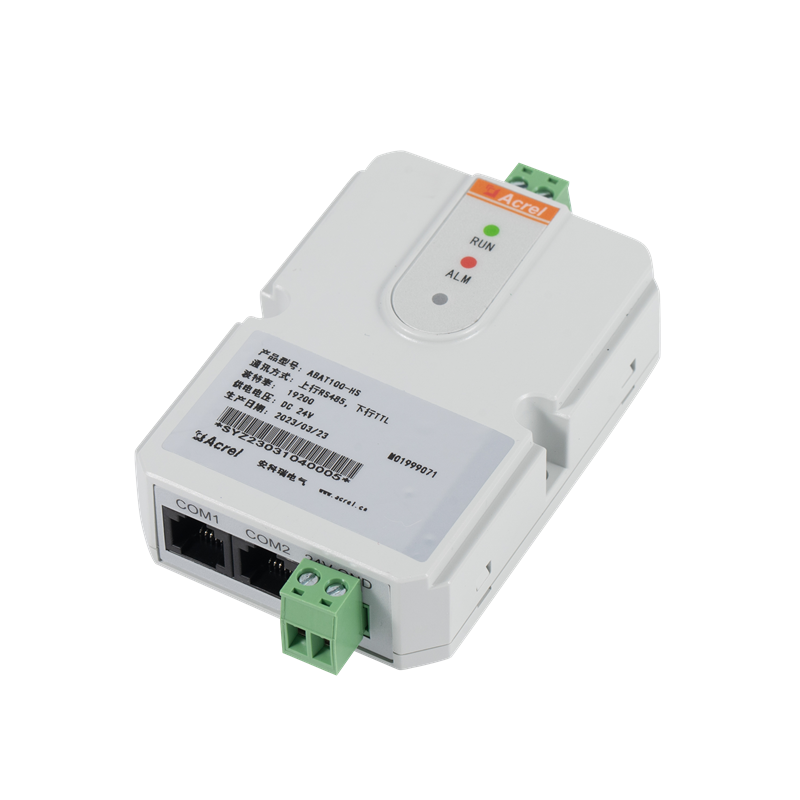

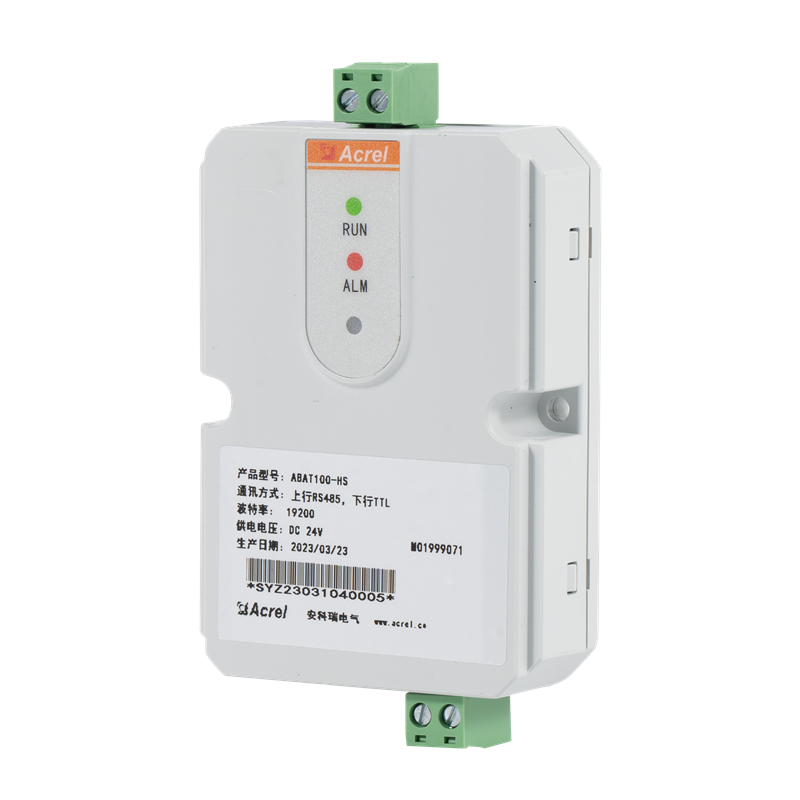

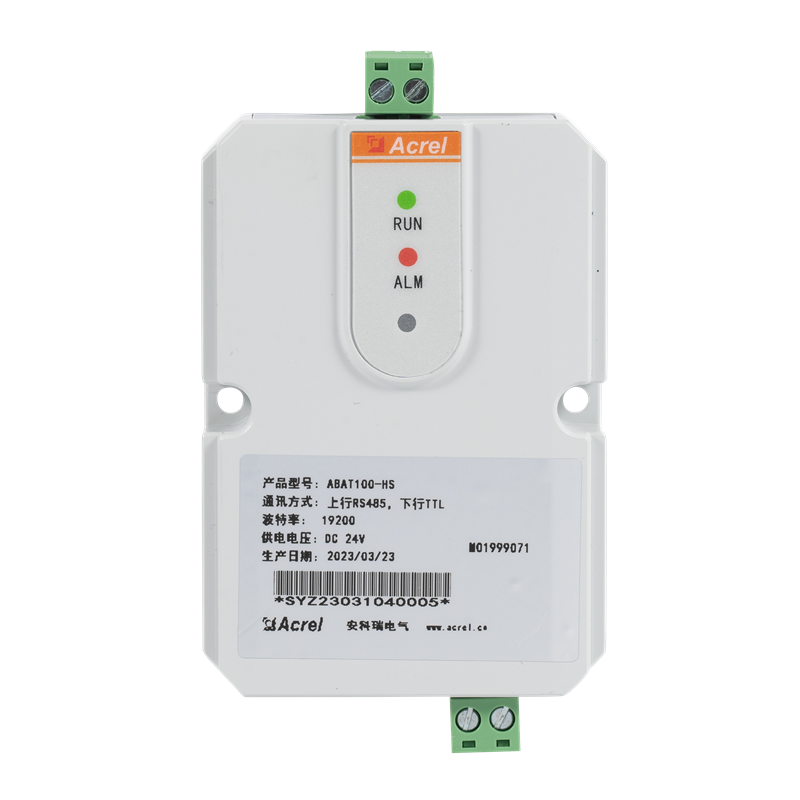

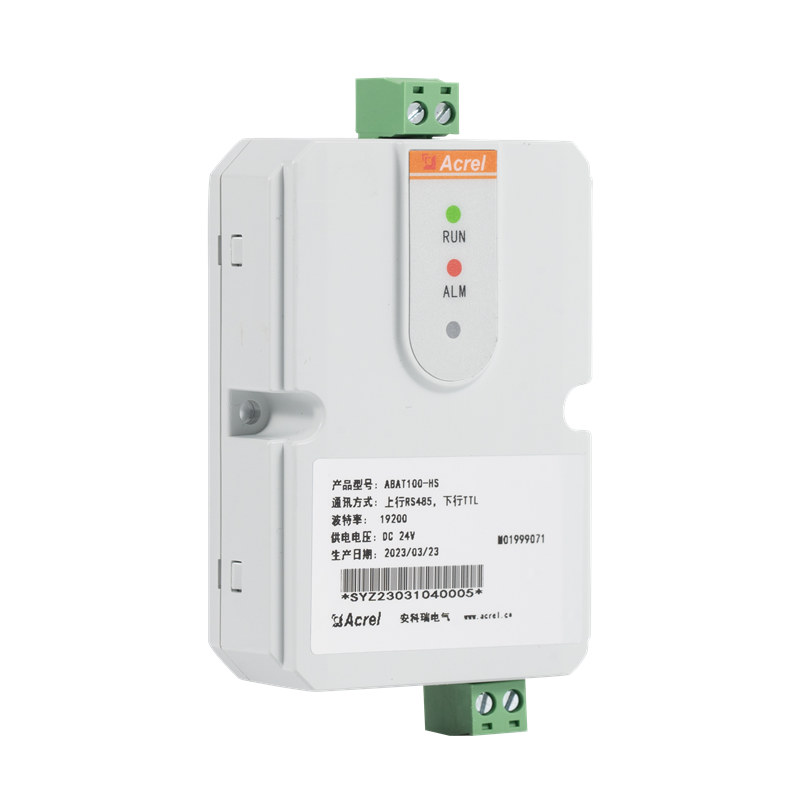

ABAT100-HS |
DC24V input, one to manage a group of batteries, up to 120 batteries in a group. |
|
ABAT100-S-02 |
Monitoring a 2V battery, monitoring battery voltage, internal resistance and negative terminal temperature. |
|
ABAT100-S-06 |
Monitoring a 6V battery, monitoring battery voltage, internal resistance and negative terminal temperature. |
|
ABAT100-S-12 |
Monitoring a 12V battery, monitoring battery voltage, internal resistance and negative terminal temperature. |
|
ABAT100-C |
Monitoring a charge/discharge current with an ambient temperature with a maximum current range of 1000A. |

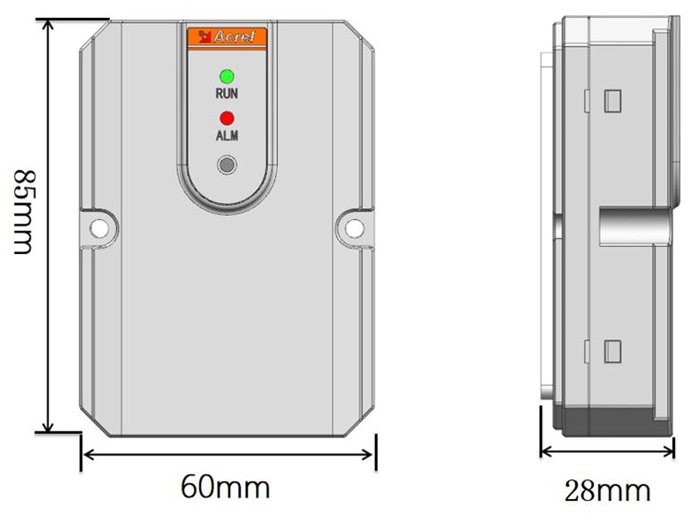

3. Dimension:
4. Network:

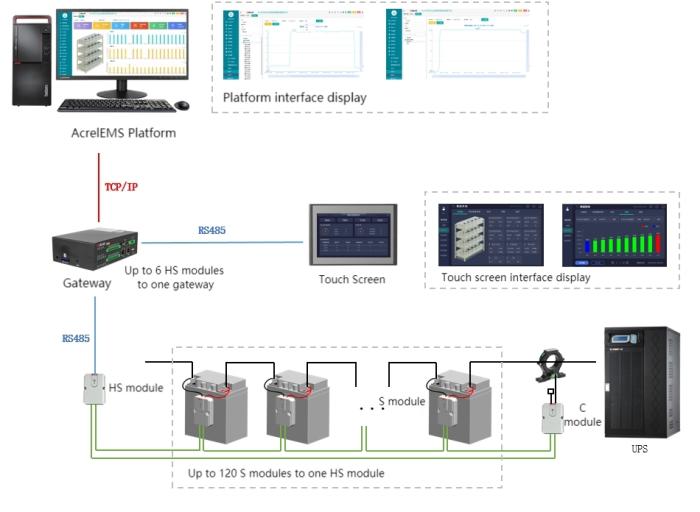

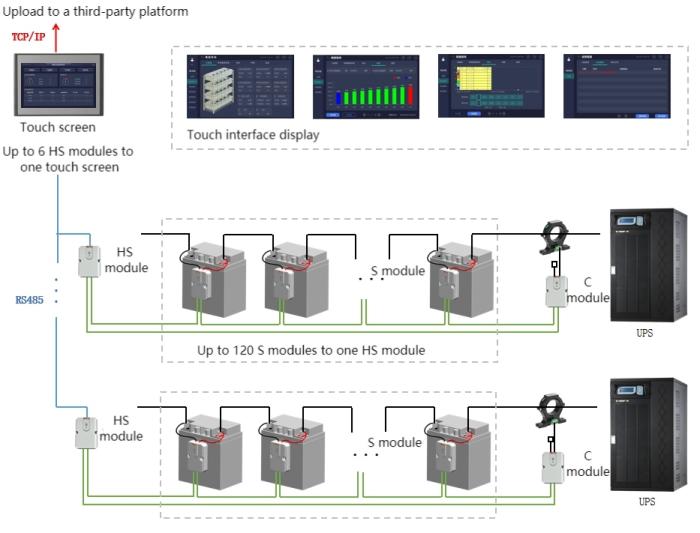

Network Solution 1: Touch Screen Serial Port Acquisition Network Solution
Network Solution 2: Acrel EMS, EIOT Platform Network Solution
ABAT100-HS: one manages 1 group of batteries, up to 120 batteries in one group;
ABAT100-S-02/6/12: Detects 2/6/12V battery, also detects battery voltage, internal resistance and negative temperature;
ABAT100-C: Detects 1 charge/discharge current and 1 ambient temperature, with a maximum current range of 1000A;

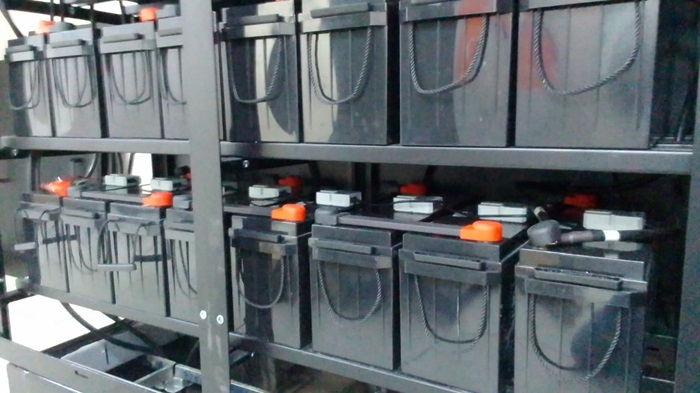

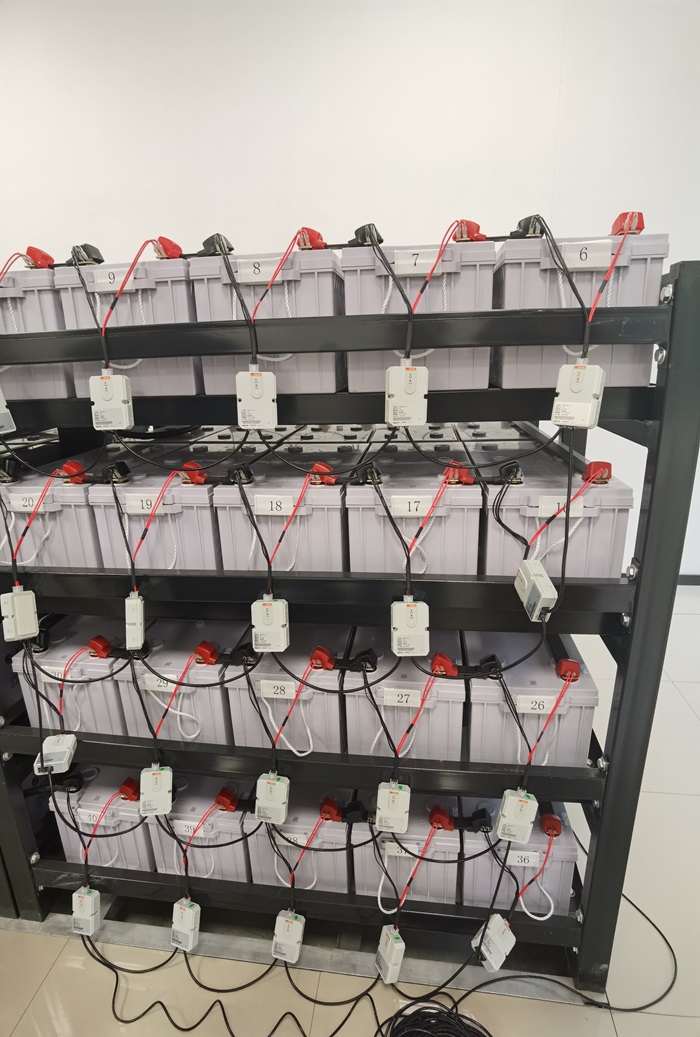

5. Photo on site:
