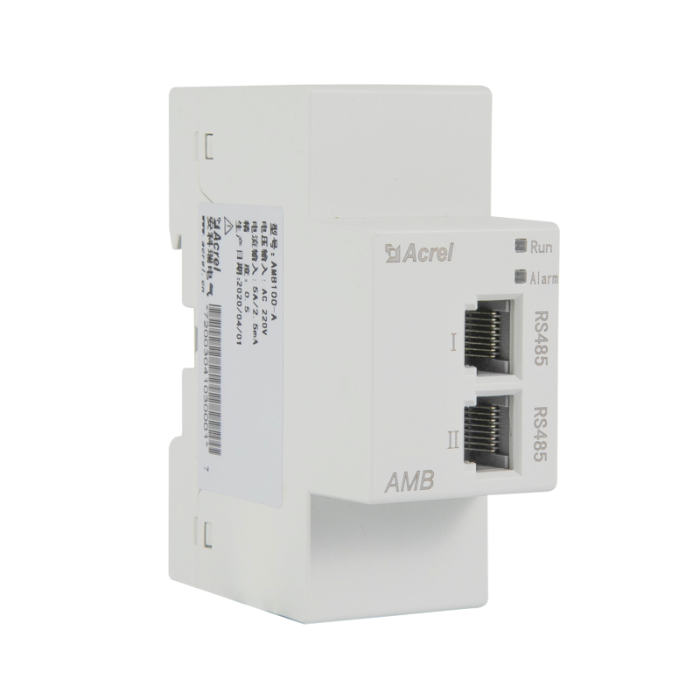

Measured parameters
|
Voltage, current, frequency, active power, inactive power, power factor, active energy, inactive energy, 2nd-63rd harmonic, temperature, leakage
|
|
Voltage
|
Rated value
|
3x220/380VAC
|
|
Range
|
±20%
|
|
Overloading
|
1.2 times than the rated voltage value continuously or 2 times than the rated voltage value instantaneously per second
|
|
Current
|
CT
|
AMB100-A：5A/2.5mA, 100A/20mA, 400A/100mA, 600A/100mA
AMB110-A：100A/20mA
|
|
Range
|
1%-120%
|
|
Overloading
|
1.2 times than the rated current value continuously or 10 times than the rated current value instantaneously per second
|
|
Input frequency
|
45-65Hz
|
|
Measurement accuracy
|
Voltage/current：class 0.2; active power/energy：class 0.5; inactive power/energy：class 1; temperature：±1℃
|
|
Auxiliary power supply
|
AMB100/110-A(/W)：triggered upon receipt of request signal

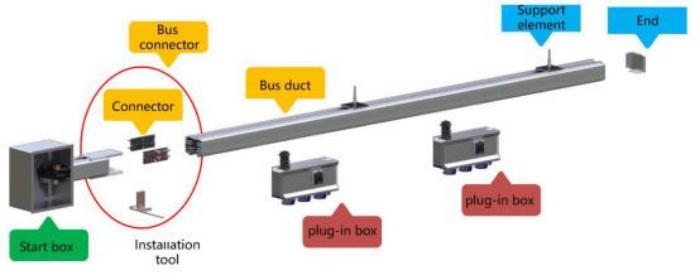

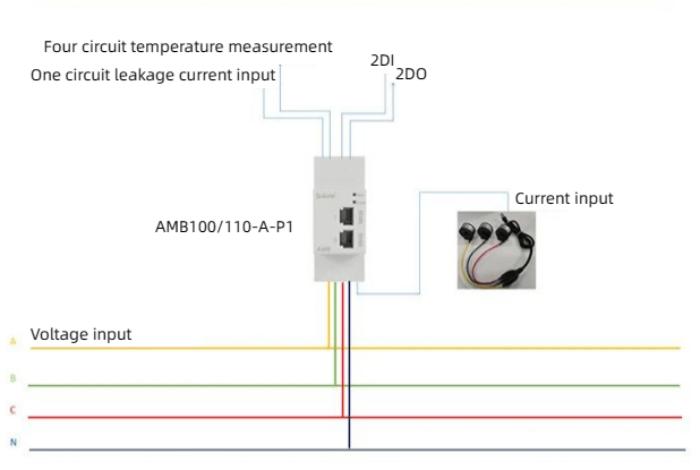

AMB100/110-A(/W)-P1：follow the bus bar voltage
|
|
functions
|
Temperature detection
|
-20-150℃
|
|
Leakage
|
0-1A
|
|

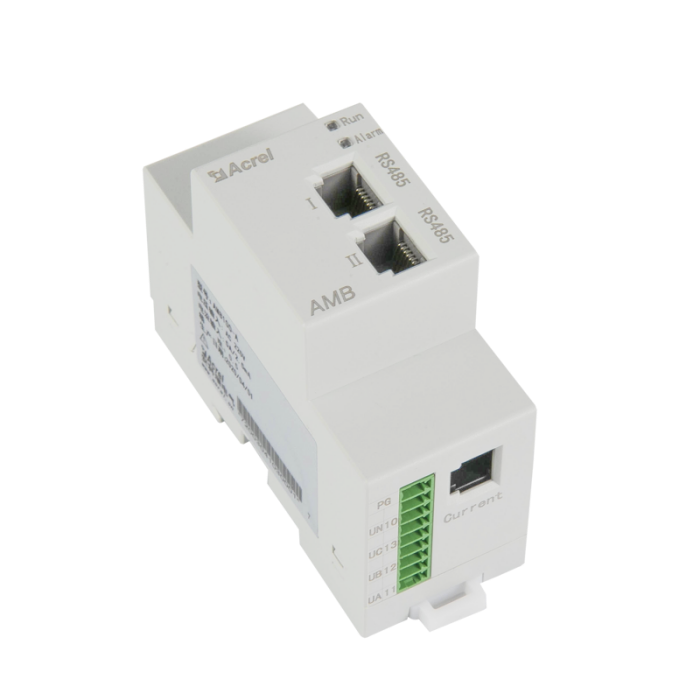

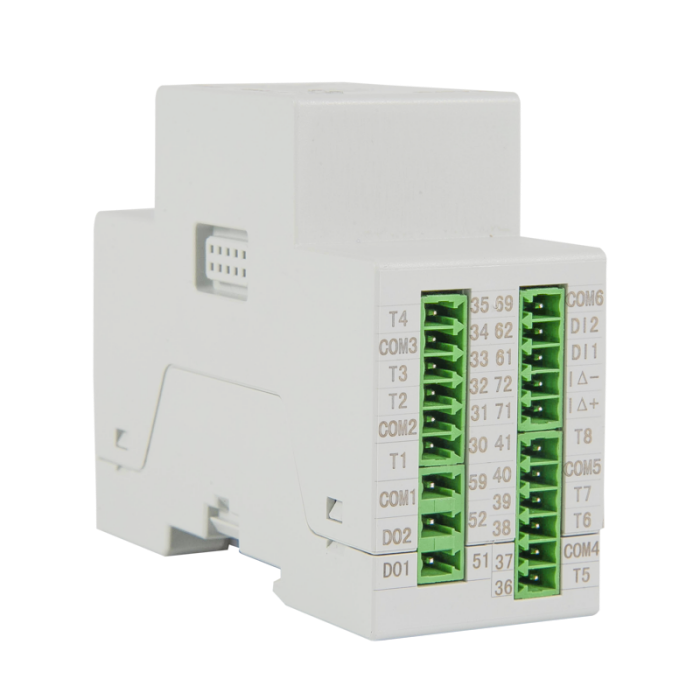

Digital input
|
2 dry-contact inputs
|
|
Digital output
|
2 relay outputs; contact capacity：3A/30VDC, 3A/250VAC
|
|

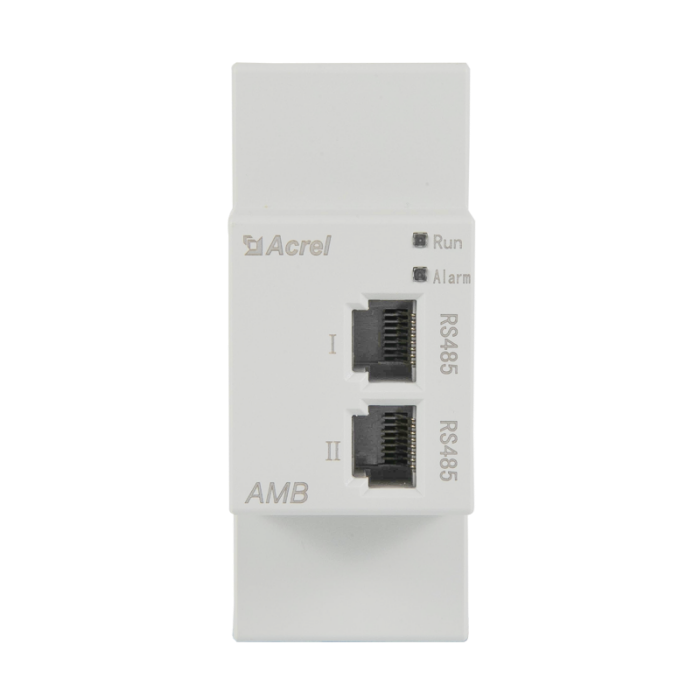

Communication
|
Via RS485/Modbus-RTU or LORA antenna
|
|

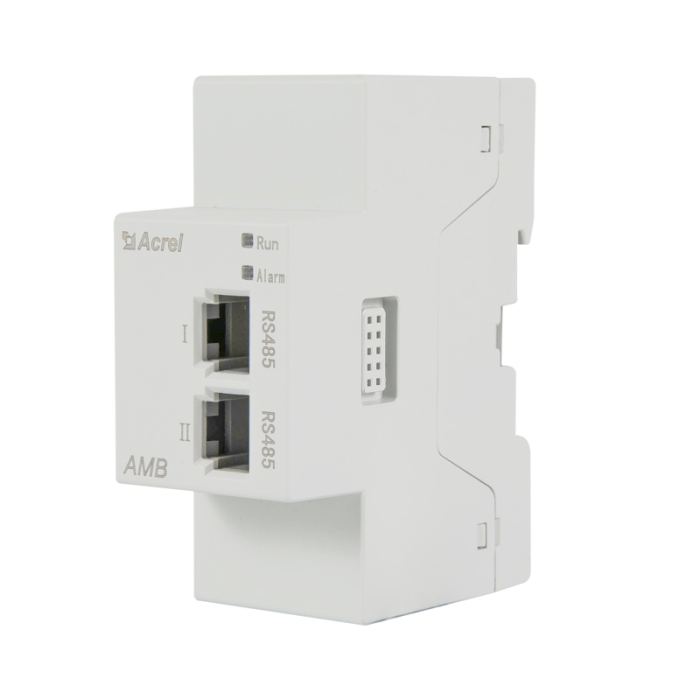

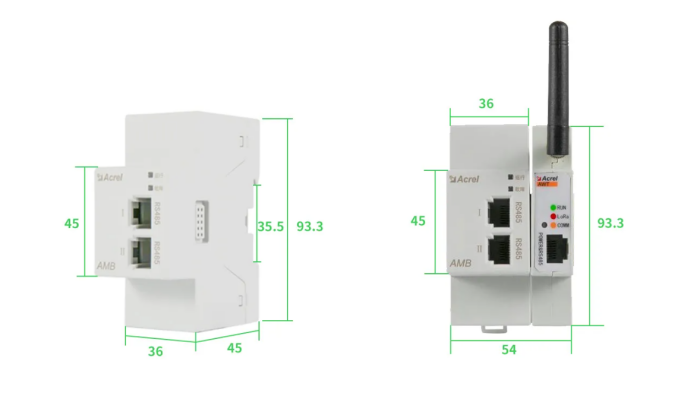

Installation
|
Use DIN35mm rail
|
|
Protection
|
IP20
|
|
Pollution level
|
2
|
|
Environment
|
Temperature/ humidity/ altitude
|
Working temperature：-20-60℃
Storage temperature：-25-70℃
Relative humidity：≤93%
Altitude：≤2500m
|
|
Safety
|
Insulation
|
The minimum insulation resistance between all terminals and conductive components of the shell is 100MΩ.
|
|
Withstanding voltage
|
When a voltage of 2kV AC is applied between the voltage/ current input, relay output, RS485 port, auxiliary power supply and digital inputs, the leakage shall be less than 2mA and no breakdown or flashover shall occur in 1min..
|
|
Electromagnetic immunity
|
Electrostatic discharge immunity
|
Class 4
|
|
Radio frequency electromagnetic immunity
|
Class 3
|
|
Transient burst immunity
|
Class 4
|
|
Surge immunity
|
Class 4
|
