AMC16Z-FAK48 Multi Circuit AC Energy Meter
Main features：
• Monitoring: AC Outgoing Branch Circuits Multi-metering (1-phase & 3-phase);
• Power quality: 2~31 harmonic and total;
• Communication: RS485 (MODBUS-RTU);
• Rated voltage: 220~264Vac L-N;
• Rated current: 50mA AC (via -/50mA CT);
• Standard and certificate: CE; IEC;
- Details
- Parameters
- Documents
1. General：
AMC16Z series AC precision power distribution monitoring device is specially designed for data center server power management. The device has exquisite design and can provide A+B 2 incoming and 96 outgoing electrical parameters, the input and output switch and the status of lightning protection device with real data. -Time tracking. All alarm thresholds of measurement channels can be configured separately. Excess output immediately activates the system's acoustic warning. A highly integrated monitoring circuit is realized in the volume of traditional instruments.

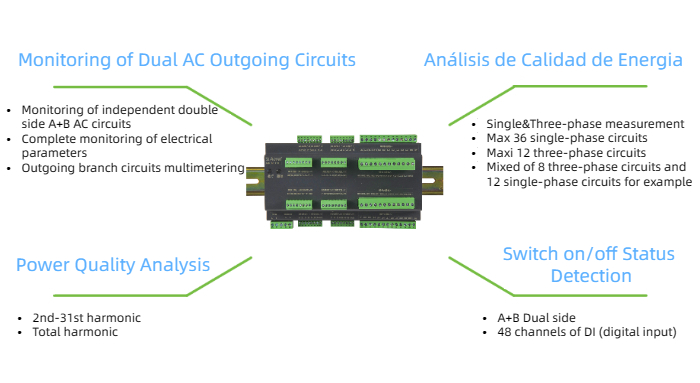

2. Functions:

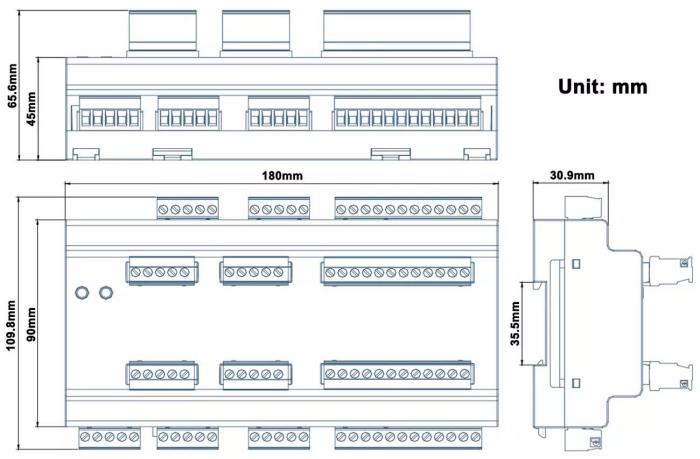

3. Dimension：

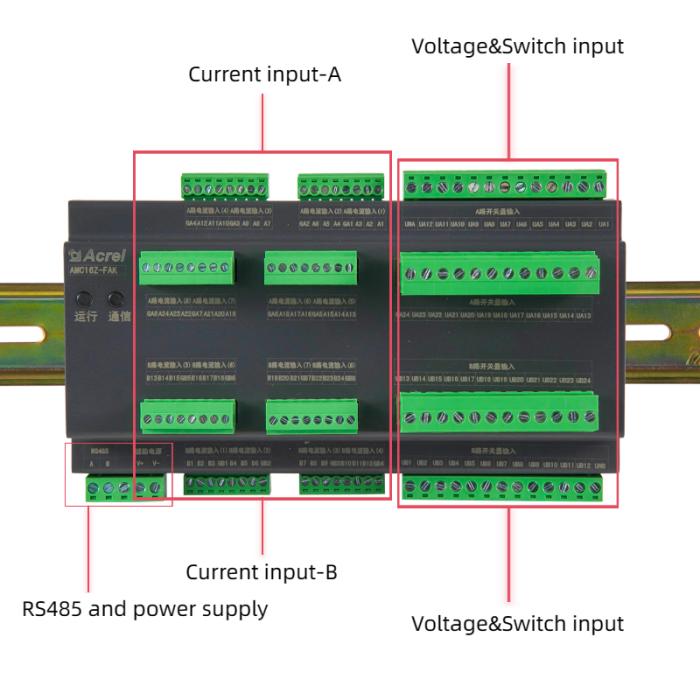

4. Terminals:

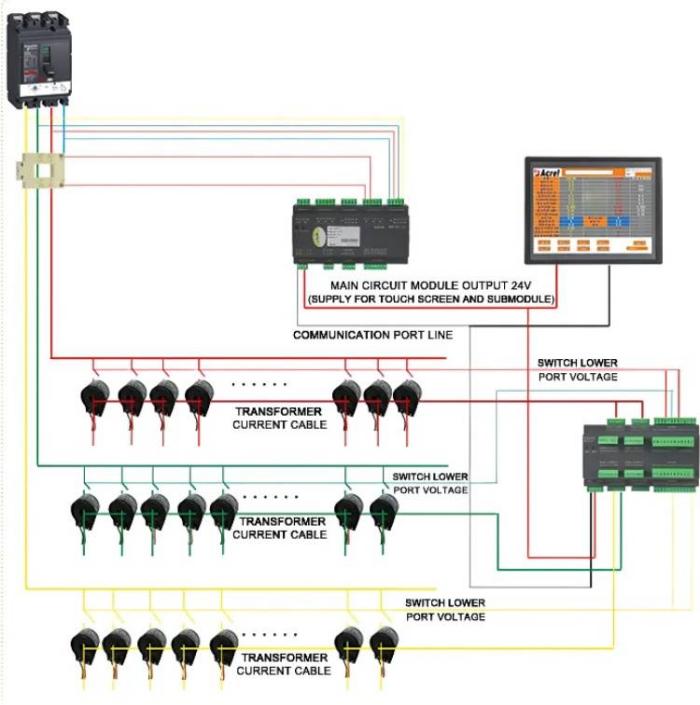

5. Wiring:
6. Network:
