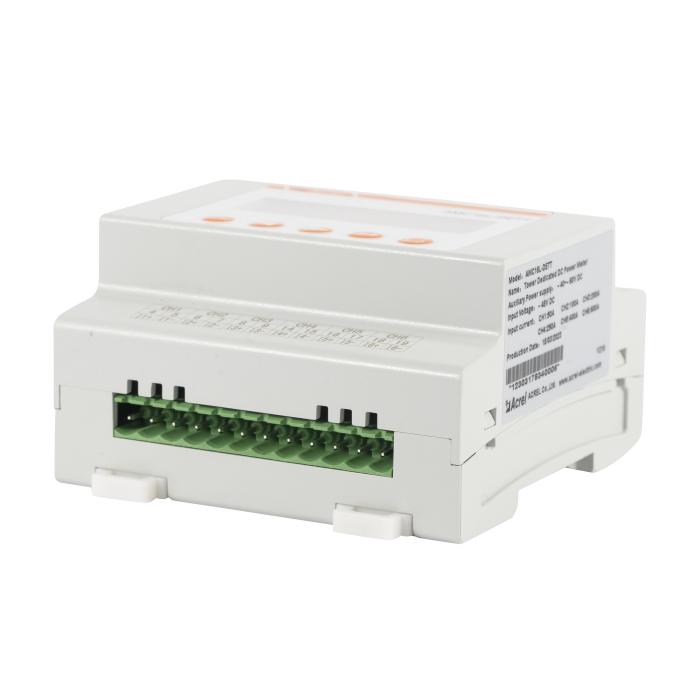

AMC16L-DETT Base Station DC Multi-Circuit Energy Meter
Main features：
• Measurement: Up to 6 DC circuits and 1 additional AC circuit;
• DC nominal voltage: 1 channel -48V DC;
• Rated DC current: 6-channel Hall sensors - total 200A/5V;
• Communication: RS485 (MODBUS-RTU);
• Auxiliary power supply: -40~-60Vdc;
• Accuracy: 1%ln≤I≤10%ln error±2.5%; I>10%ln error±2%;
• Standard and Certificate: CE; IEC;
- Details
- Parameters
- Documents
1.General：
AMC16(L)-DETT is specially designed for base stations that have sharing requirements and switching power supplies without user power metering functions. The meter could measure DC power from 6 circuits and supply working current to the corresponding Hall sensors. Meanwhile, you can perform zero drift calibration using the host computer software. It has the functions of telemetry, teleindication, teleadjustment, real-time energy measurement, power supply quality abnormal alarm, data storage and processing, data interaction. The module can measure the DC power consumption of multiple circuits separately, providing detailed data for the base station.

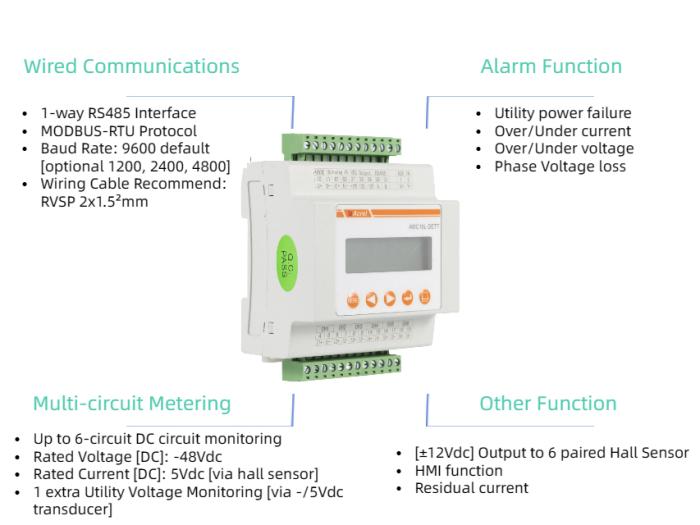

2. Functions:

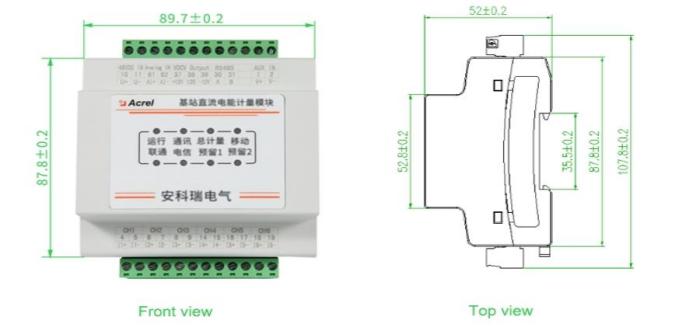

3. Dimension:

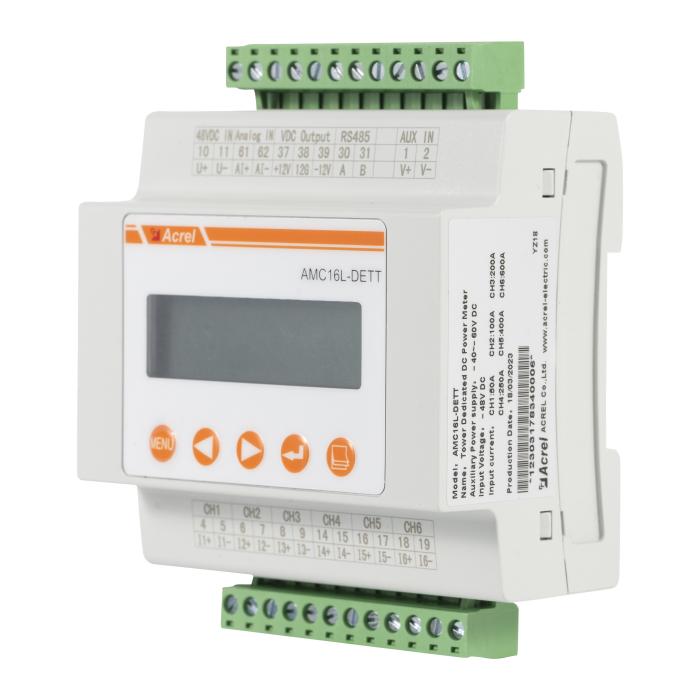

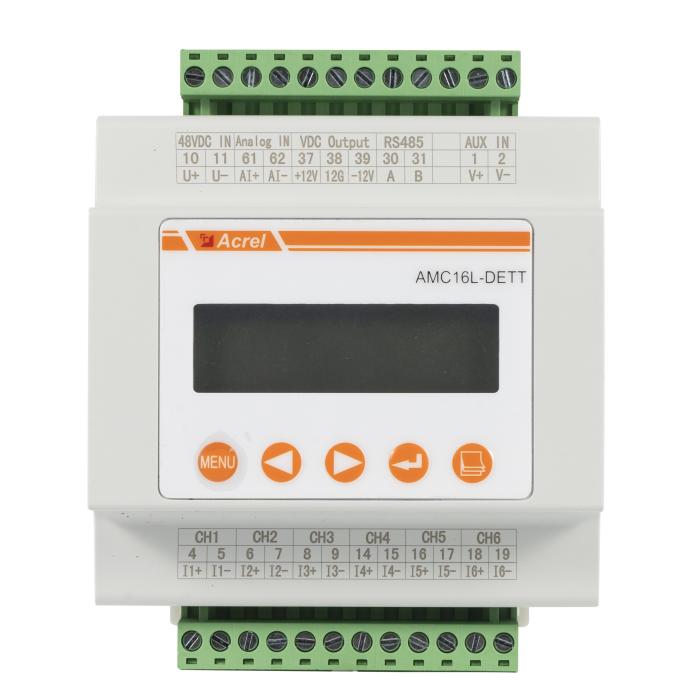

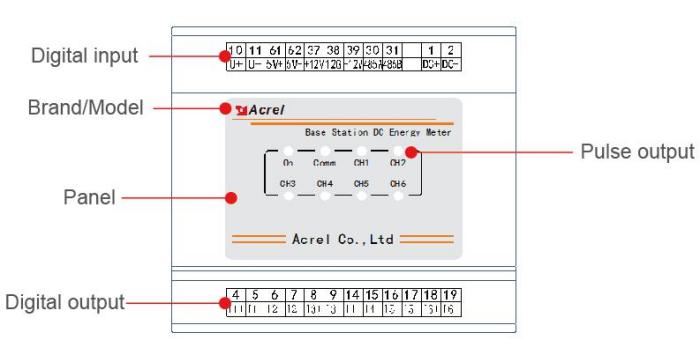

4. Front Panel:

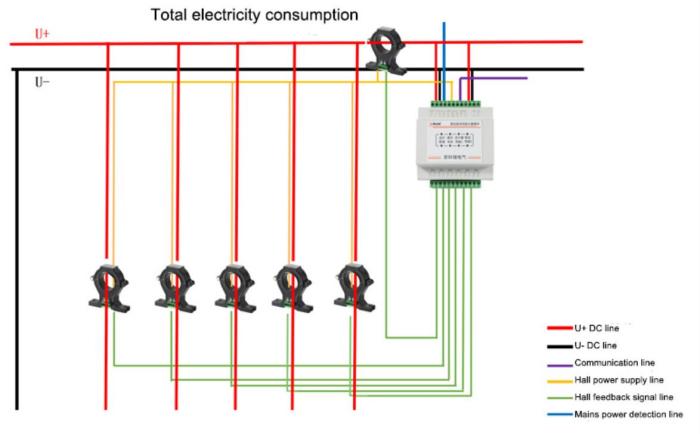

5. Wiring:

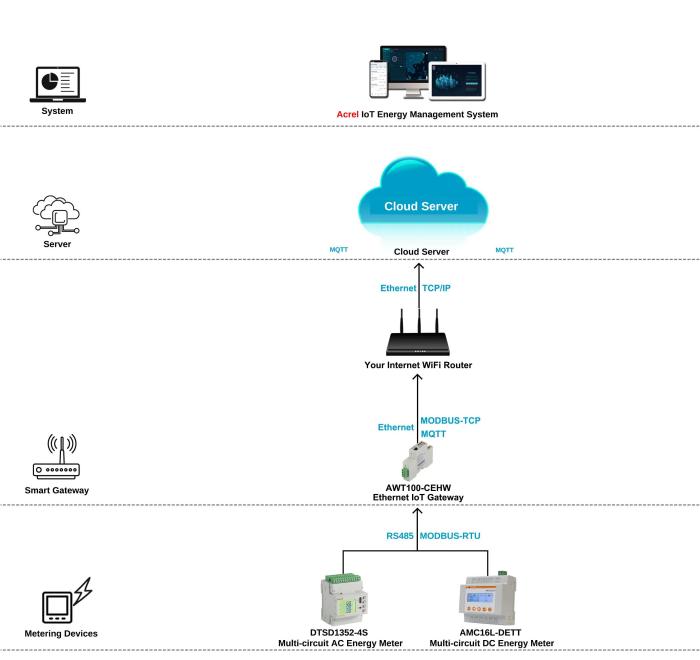

6. Network:
