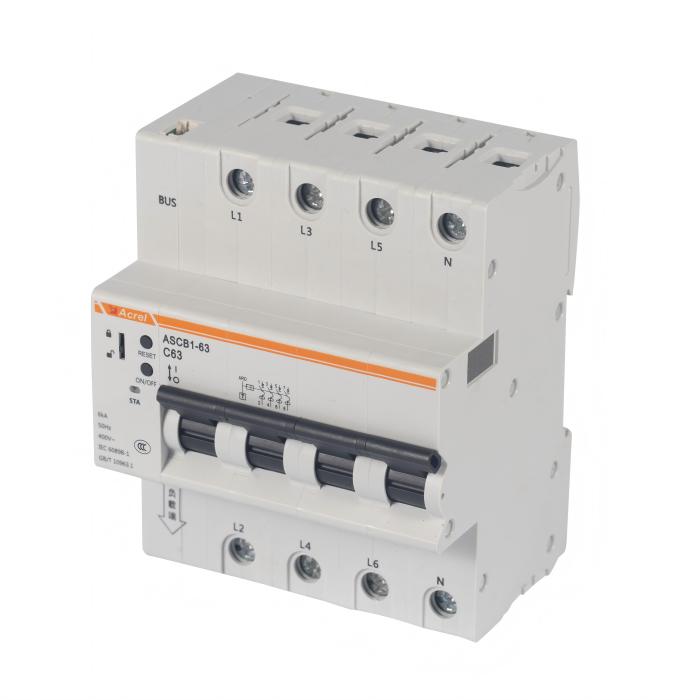

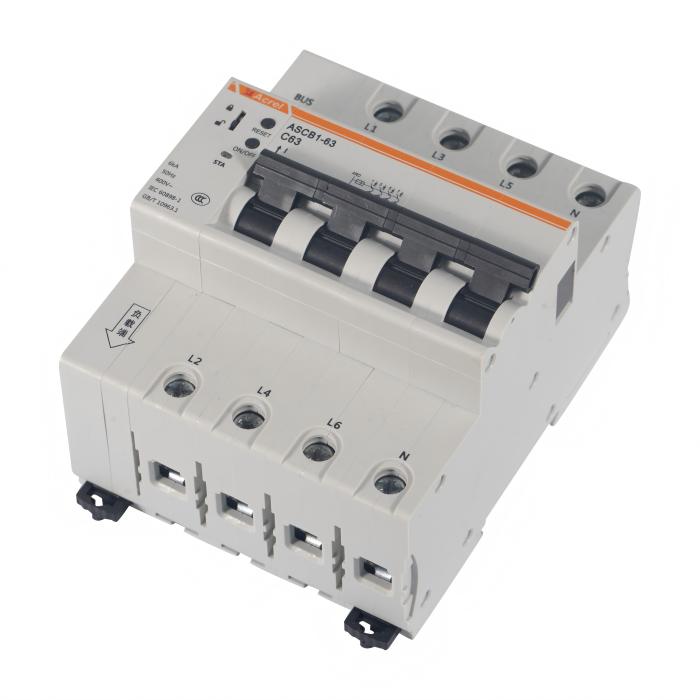

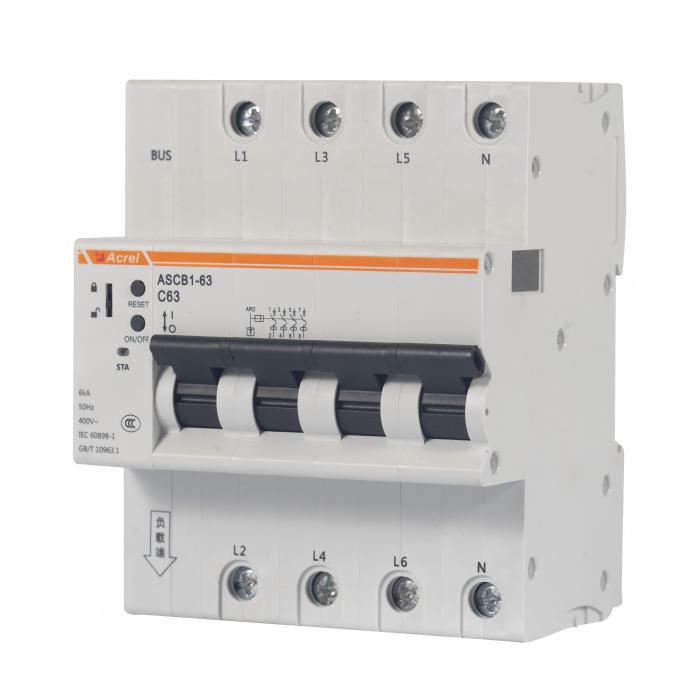

ASCB1 Smart Circuit Breaker with Remote On & Off by APP/PC

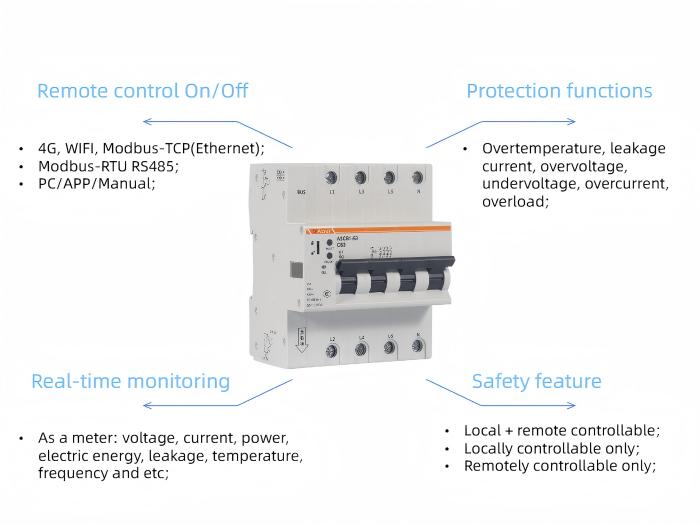

Main features:
• Real-time monitoring: voltage, current, power, temperature and others;
• Protection function: overvoltage, undervoltage, overload, short circuit, overcurrent, overtemperature, etc.;
• Control function: local handle on/off, local electrical control, local lock, remote control, timing control, etc.;
• Communication: RS485 (Modbus-rtu); can also work with gateway;
• Optional tripping curve: type C or type D;
• Optional poles: 1P/2P/3P/4P;
• Auxiliary power supply: DC12V;
- Details
- Parameters
- Documents
1. General：
ASCB1 series intelligent miniature circuit breaker is a new intelligent power product launched by Acrel Electric. The product consists of two parts: intelligent miniature circuit breaker and intelligent gateway, which can be used to monitor the key electrical factors of power lines such as voltage and current, power, temperature, leakage, energy consumption, etc. for real-time monitoring with functions of remote control, early warning protection, short circuit protection, energy measurement statistics, fault location and others. It can be applied to indoor buildings and similar places of industrial, commercial, civil buildings and low-voltage terminal power distribution networks in infrastructure and other field.
2. Functions:

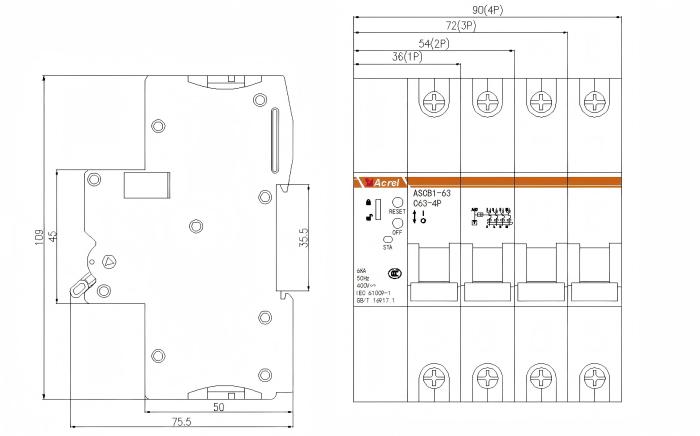

3. Dimension:

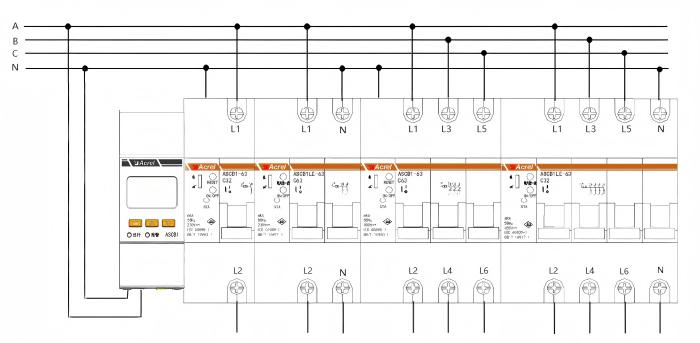

4. Wiring:

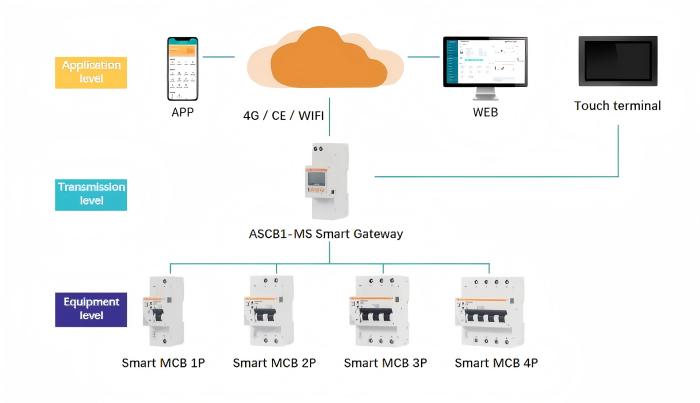

5. Network:

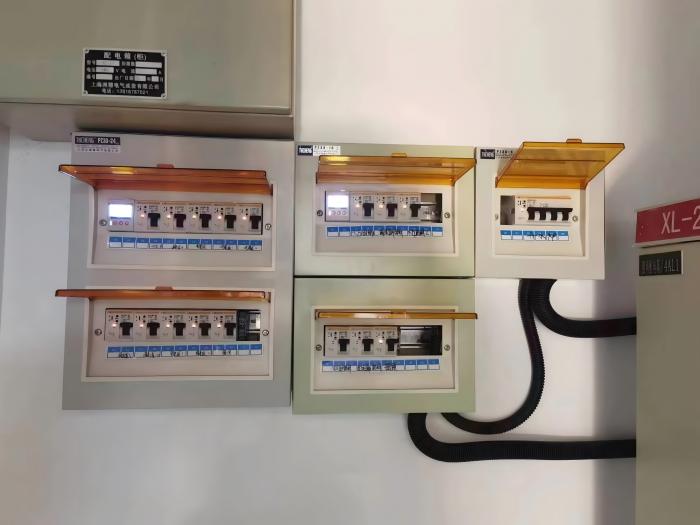

6. Foto on site:
