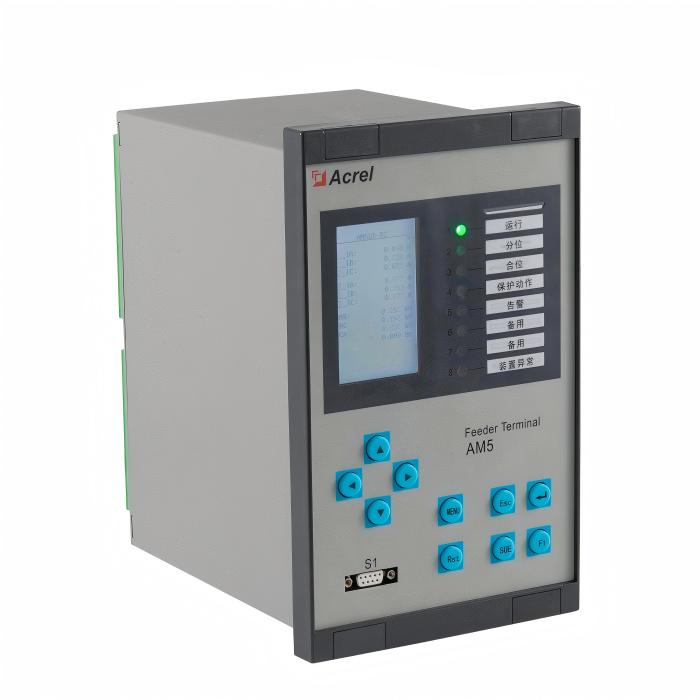

AM5SE Medium voltage protection relay
Main features：
• Applicable power systems: 35 kV or lower;
• Protection circuits: incoming lines, main transformer, distribution transformer, motors, capacitors, bus coupling, potential transformers, etc.;
• Ports: 2 RS485 ports, 2 Ethernet ports, 1 RS232 port, 1 USB port;
• Standards: IEC 60870-5-101, IEC 60870-5-103;
- Details
- Parameters
- Documents
1. General：
AM5SE microprocessor-based protection and control device (hereinafter referred to as the device) integrates protection, control, measurement, communication, and monitoring functions. This device boasts abundant resources, a comprehensive configuration, easy maintenance, and stable performance. Suitable for the protection and control of electrical systems with voltage levels of 35kV or lower, it provides protection for incoming lines, main transformers, distribution transformers, motors, capacitors, bus couplers, and potential transformers (PTs). Its application areas include sectors such as power, water, transportation, oil and gas, chemicals, coal, and metallurgy.

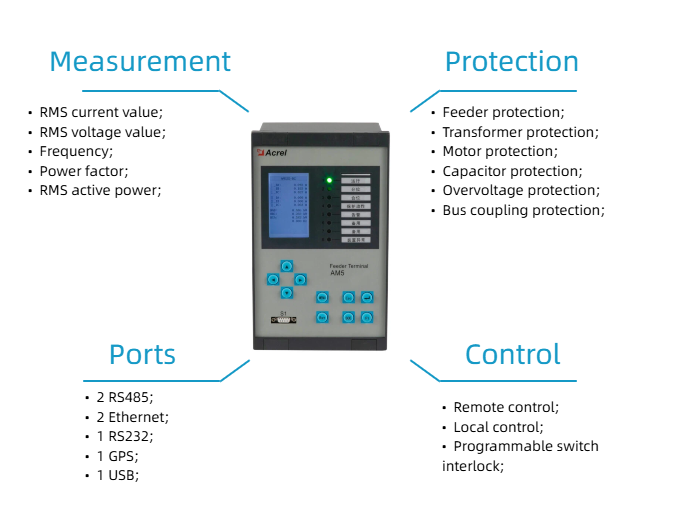

2. Functions:

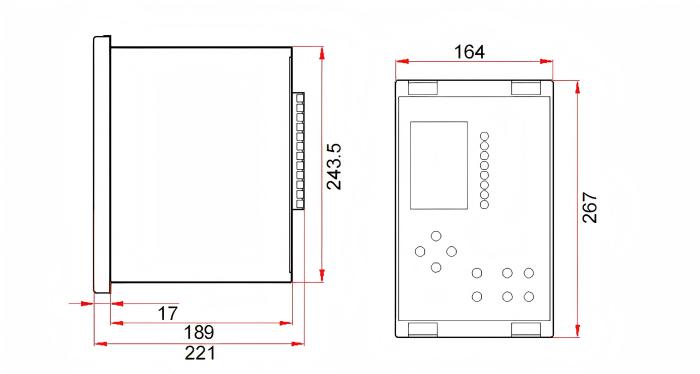

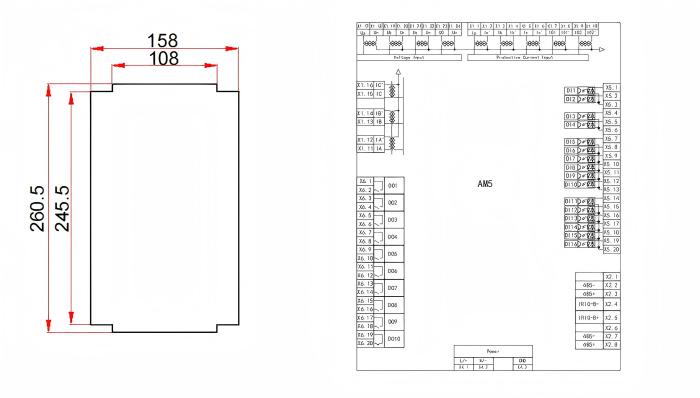

3. Dimension：

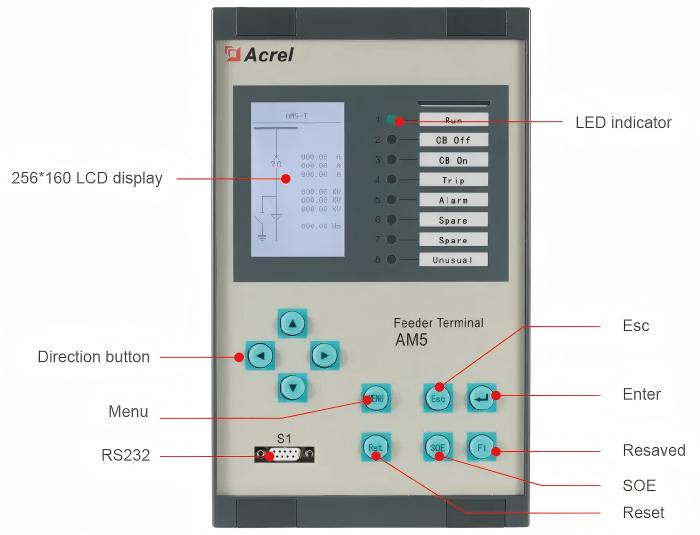

4.Front panel:

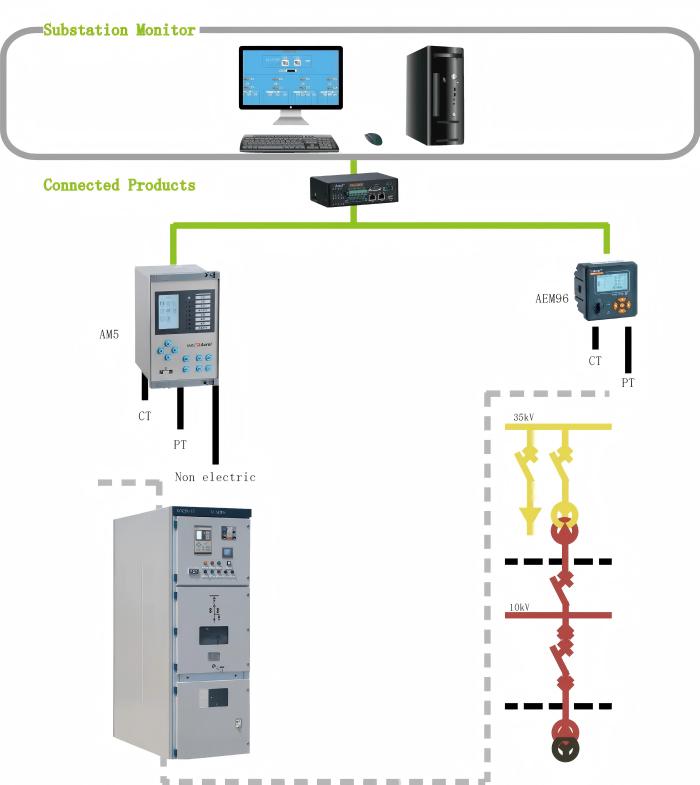

5.La Red:
