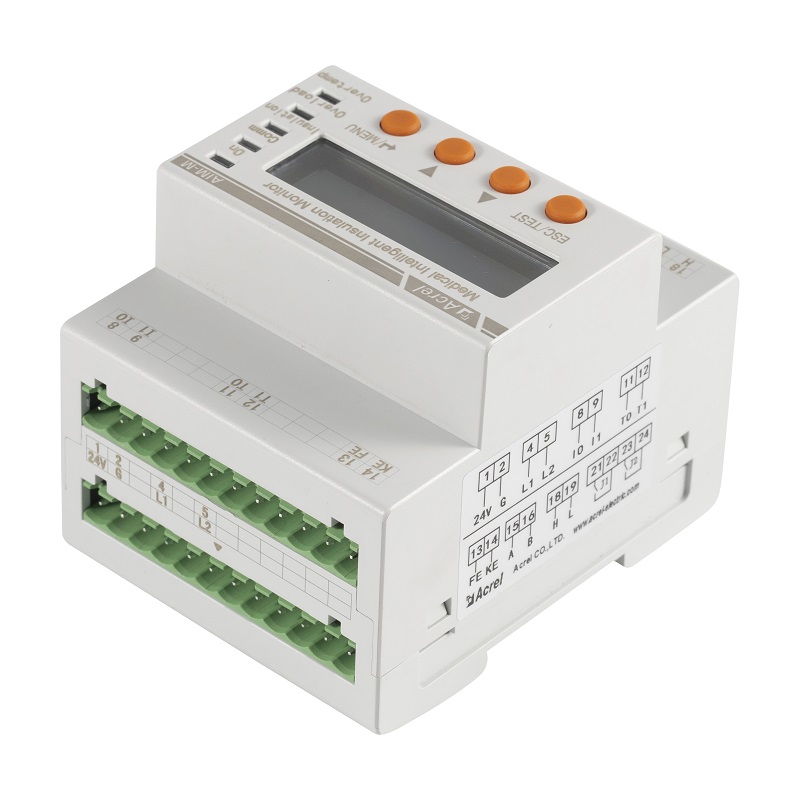

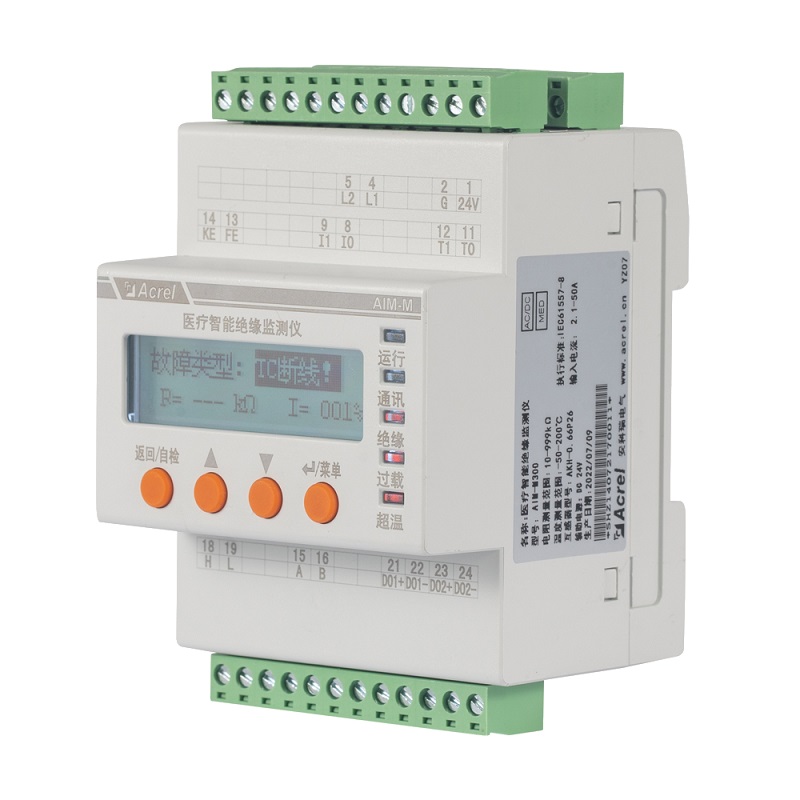

AIM-M300 Intelligent Isolation Monitor for Hospitals
Main features：
• Insulation monitoring for isolated electrical system;
• Isolation transformer load and temperature monitoring;
• Device disconnection monitoring;
• alarm relay output;
• LED indicators: power on, insulation, overload, over temperature.
• Communication: RS485 and CAN bus
• Standard and Certificate: CE; IEC
- Details
- Parameters
- Documents
1.General：
AIM-M300 Hospital Intelligent Isolation Monitor adopts advanced microcontroller technology, which has high integration, compact size, convenient installation, and integrates intelligence, digitalization and networking in one. It is suitable for isolation control of Isolation Power System in Class 2 medical locations such as operating rooms and intensive care units.
2. Functions:
• Real-time monitoring and fault alarm for the ground insulation resistance of the monitored IT system, transformer load current and transformer winding temperature;
• It can real-time monitor the disconnection fault of the connection line with the measured system, current transformer disconnection fault, temperature sensor disconnection fault and functional grounding line disconnection fault, and give indication alarm within 2 seconds after fault occurs;
• Fault indication functions such as relay alarm output, LED alarm indication and others;
• It can be used together with insulation fault locating device, which can generate fault locating signals to be injected into the system when insulation fault occurs, start fault locating and display the locating results;
• It adopts two fieldbus communication technologies, RS485 bus and CAN bus, for communication with centralized display and alarm device, insulation fault locator and upper computer management software, which can remotely monitor the IT system operation in real time;
• SOE (Sequence of Events) function, which records the time when the alarm occurred and the type of fault, which is convenient for operators to analyze the operating status of the system and eliminate faults in time.
3. Dimension:

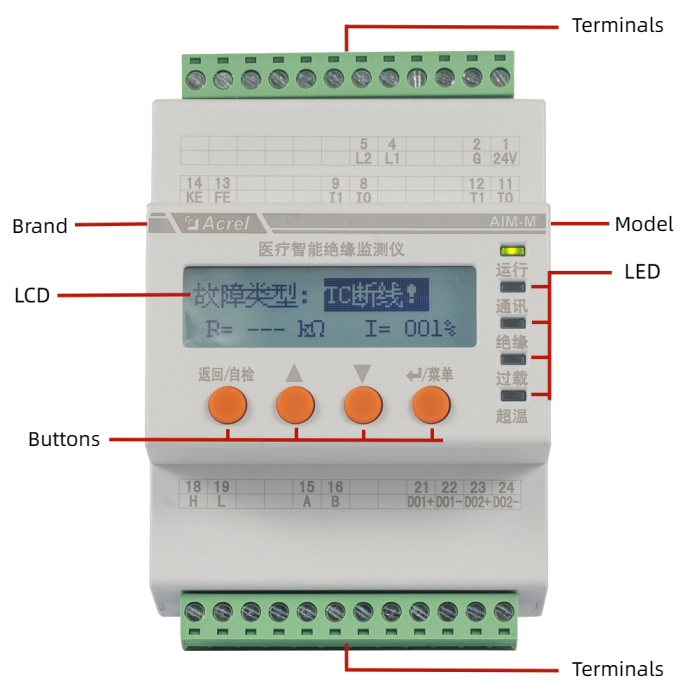

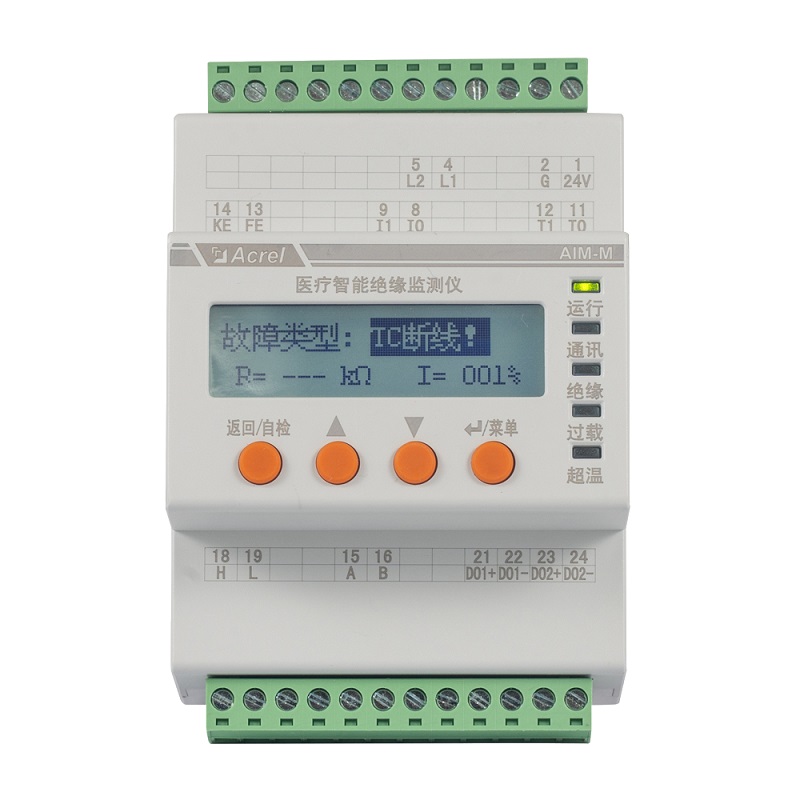

4. Panel Frontal:

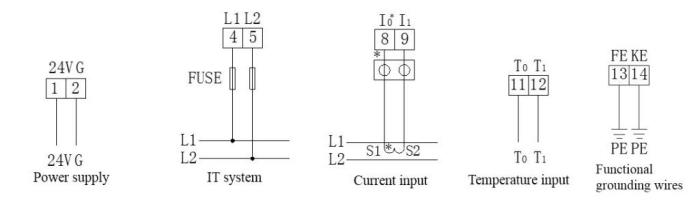

5. Alambrado:

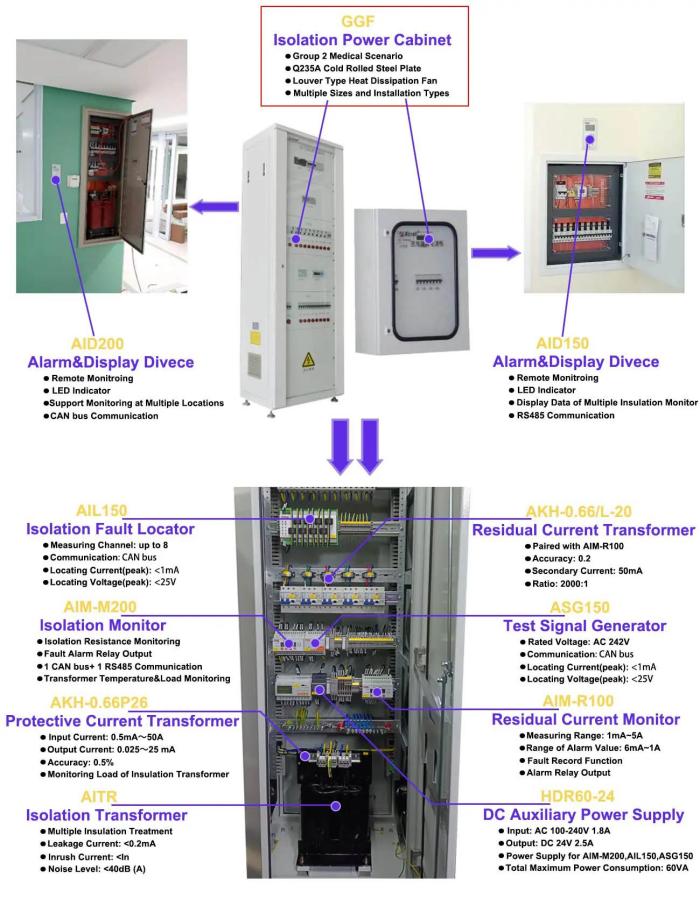

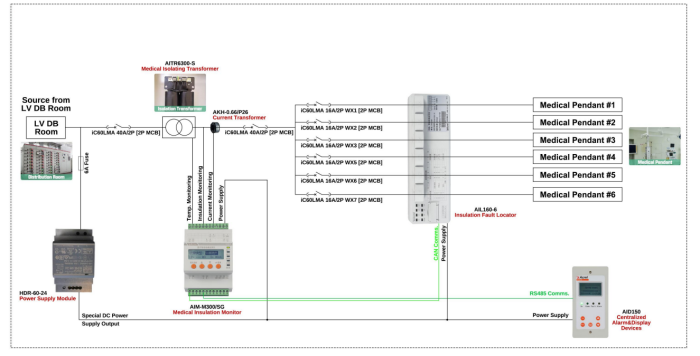

6.Solution sample:
