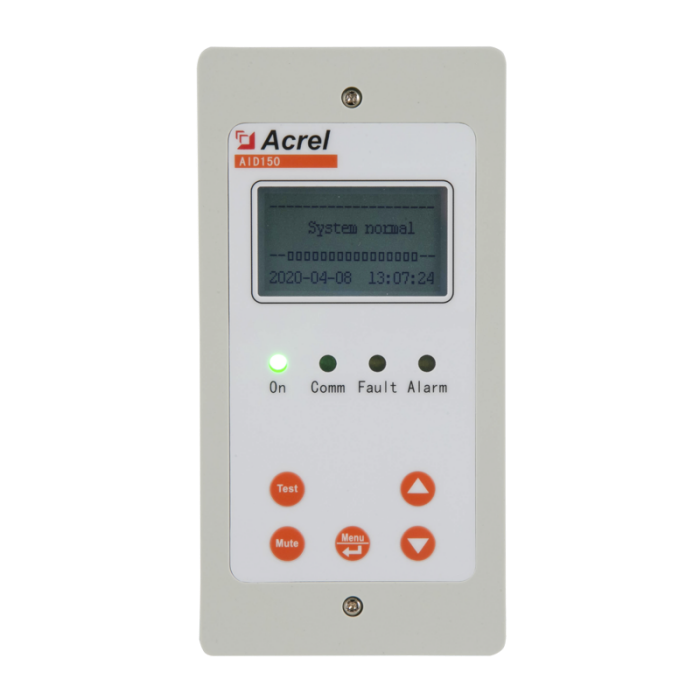

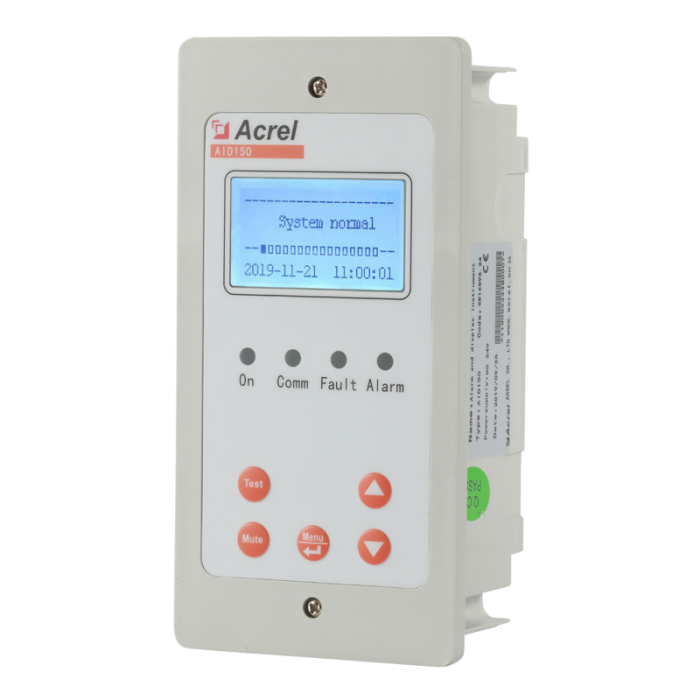

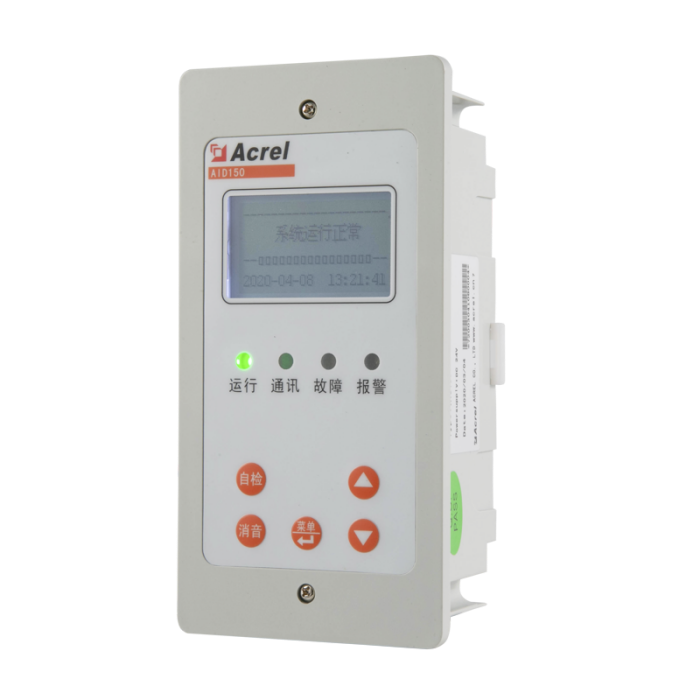

AID150 Alarm&Display Device
Main features：
• Function: Remote monitoring;
• Communication: Modbus RTU;
• Display: HMI interface for remote parameter configuration and alarm silence;
• Application: Hospital ICU, CCU;
- Details
- Parameters
- Documents
1. General：
AID series display and alarm devices are remote display devices and audible and visible alarms. The AID duplicates the fault, alarm and operation messages of the monitoring devices. When a fault occurs, the AID sends an audible and visible signal to medical and technical personnel. Additionally, the AID can remotely configure the response value of the AIM-M series monitoring device. The AID series alarm and display device has three types: AID10, AID120 and AID150, which will be located in the operating room or nursing station so that it can be permanently monitored by medical staff.

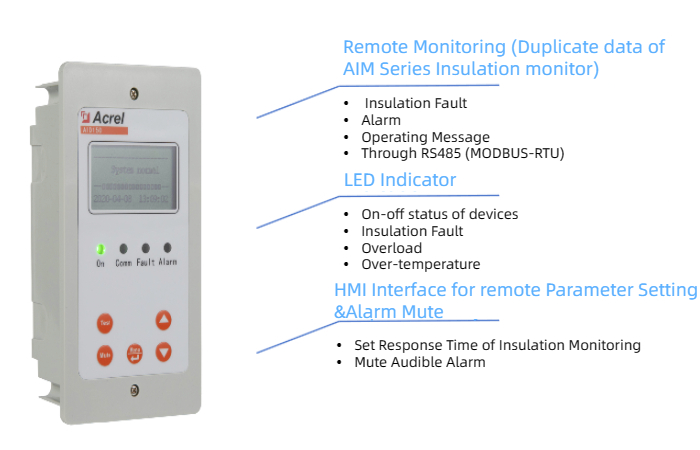

2. Functions:

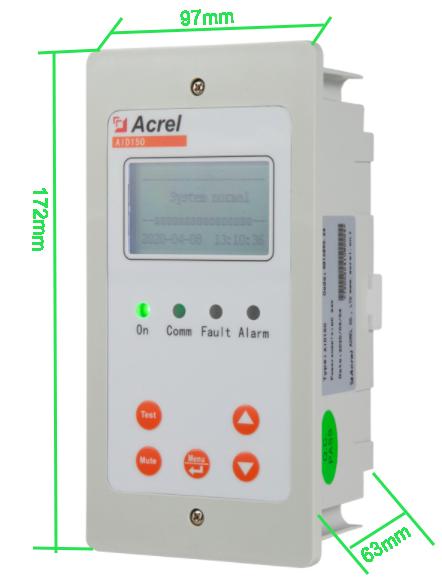

3.Dimension：

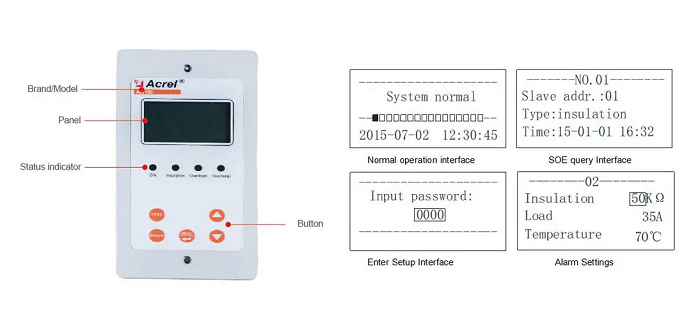

4.Front Panel:
5. Wiring:

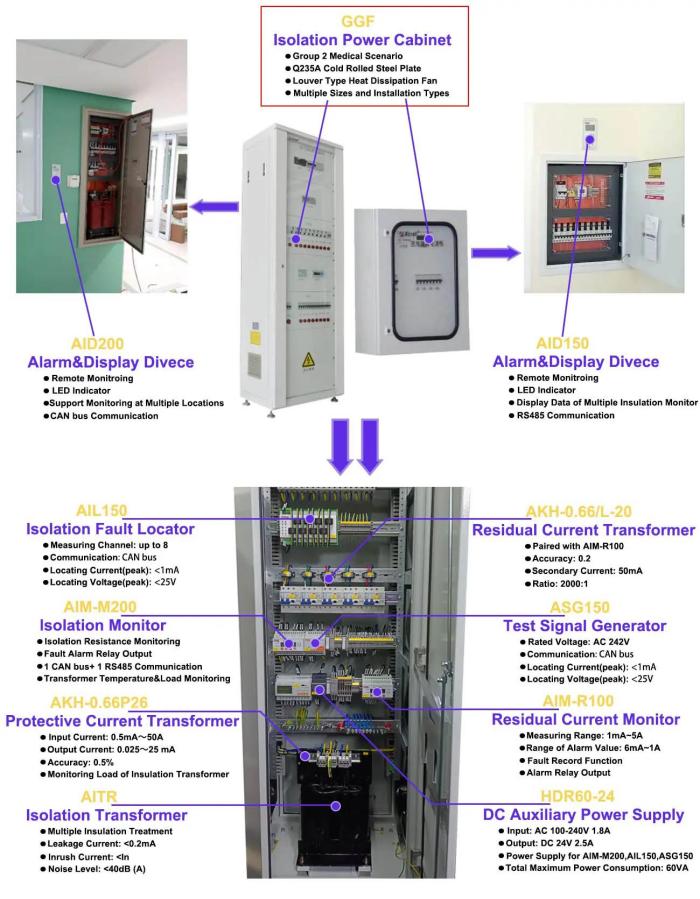

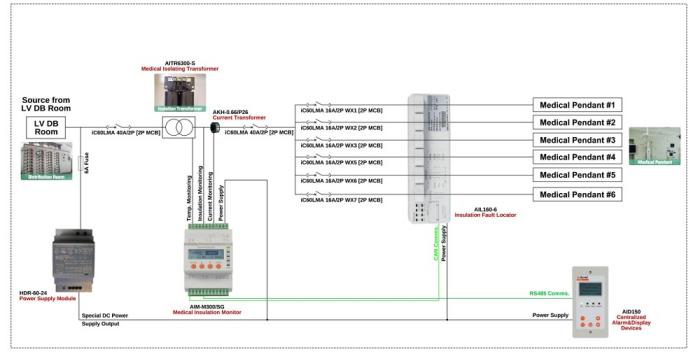

6.Solution sample:
