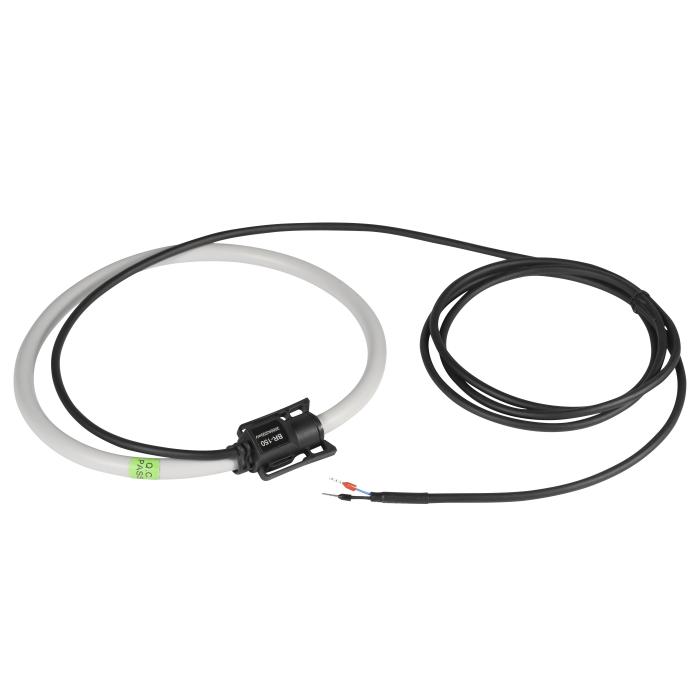

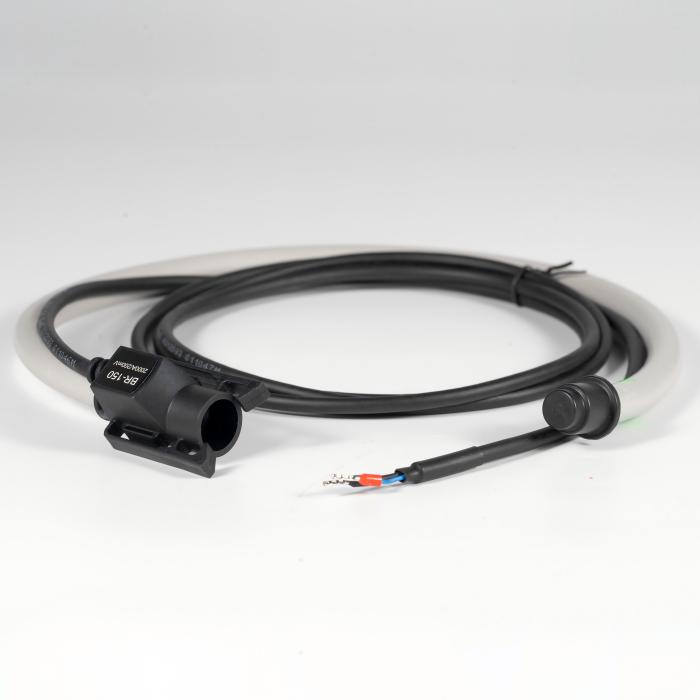

BR Rogowski Coil Flexible Current Transducer 1000-10000A
Main Features：
• Primary current input: AC 1000-10000A;
• Secondary current output: 200mV/333mV;
• Bore size: 90/150/200/300mm;
• Application: In metallurgy, electroplating, welding and other fields;
- Details
- Parameters
- Documents
1. General：
BR series realizes real-time measurement of alternating current in power grid according to electromagnetic induction theory. BR series flexible Rogowski coil is a high-sensitivity flexible current sensor which can be directly matched with portable equipment such as power analyzers. It is suitable for power consumption monitoring, high-frequency current monitoring, DC ripple measurement, etc. Different sizes can be customized according to requirements. They use the RMS and linear compensation technology to isolate and convert the measured current into the standard DC signal. It has features: 24VDC safety power supply, high precision, isolation and safety, and low power consumption. It is widely used in metallurgy, electroplating, welding and other fields.

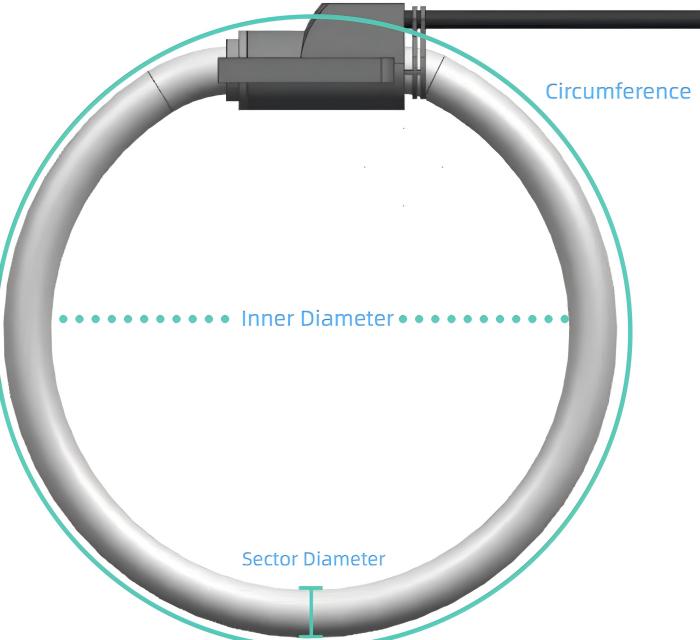

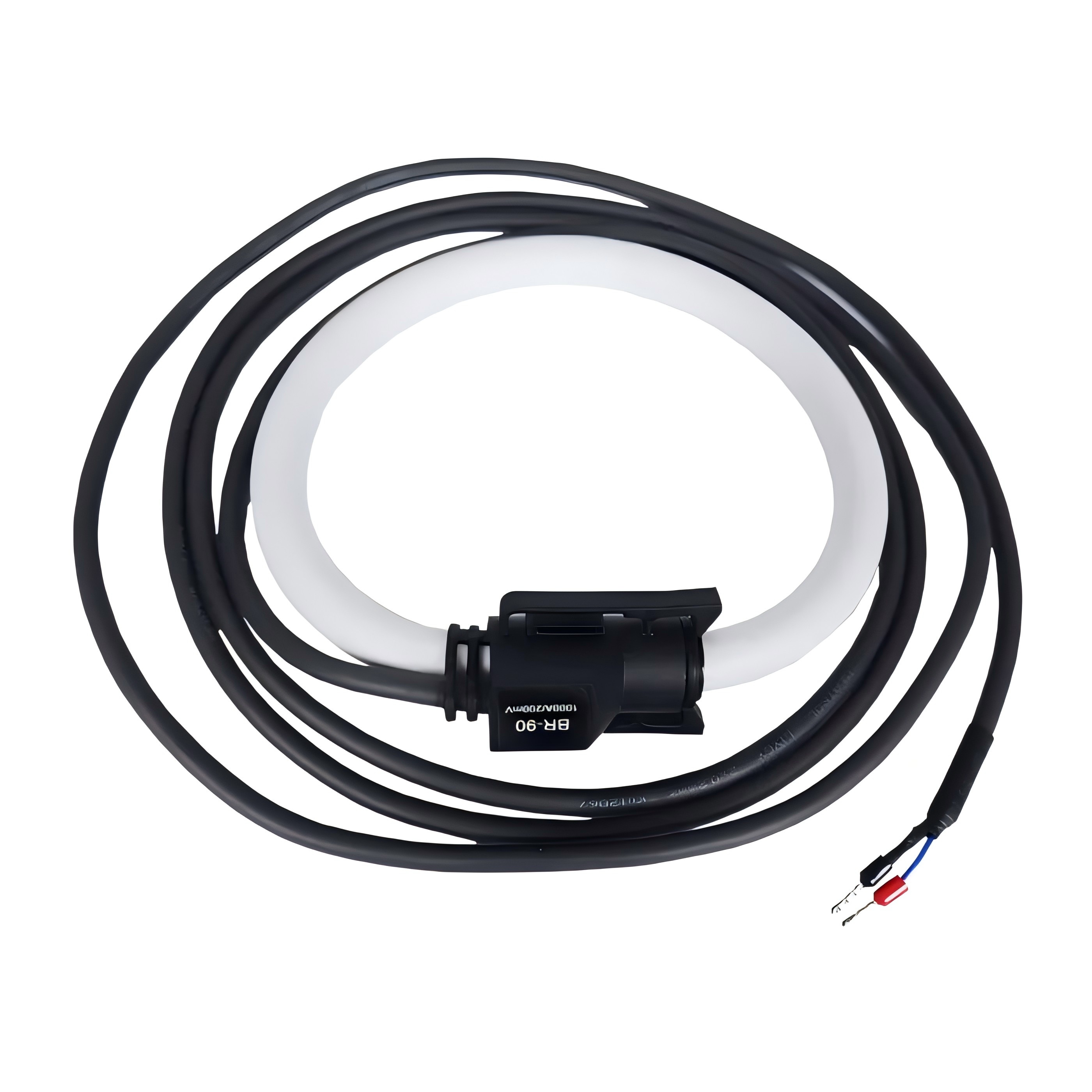

2. Dimensión:
|
Modules |
Input Current |
Output Voltage |
Inner diameter(mm) |
Sector Diameter(mm) |
Circumference(mm) |
|
BR-90 |
1000A |
200/333mV |
90 |
12 |
300 |
|
BR-150 |
2000-5000A |
333mV |
150 |
12 |
500 |
|
BR-200 |
4000-8000A |
333mV |
200 |
12 |
650 |
|
BR-300 |
5000-10000A |
333mV |
300 |
12 |
1000 |

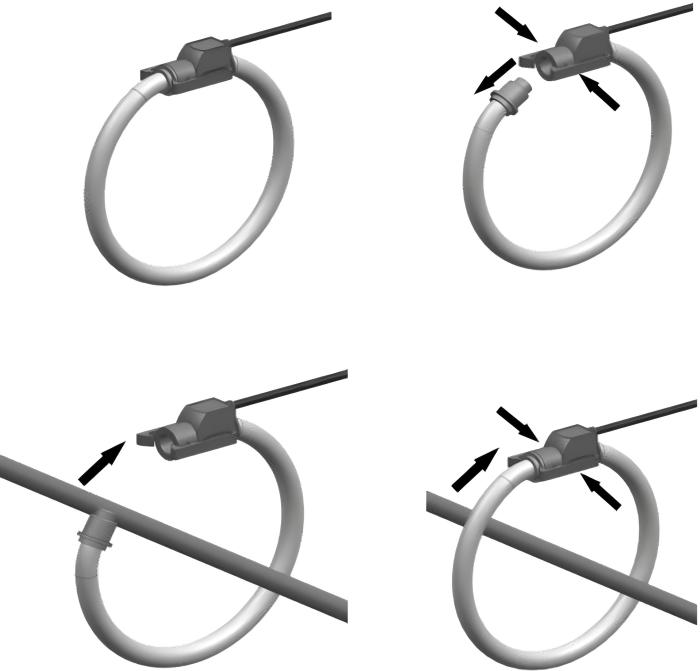

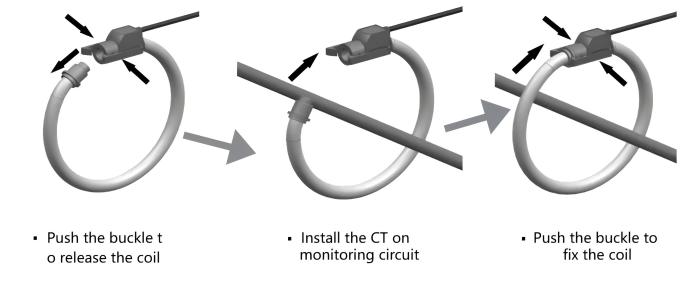

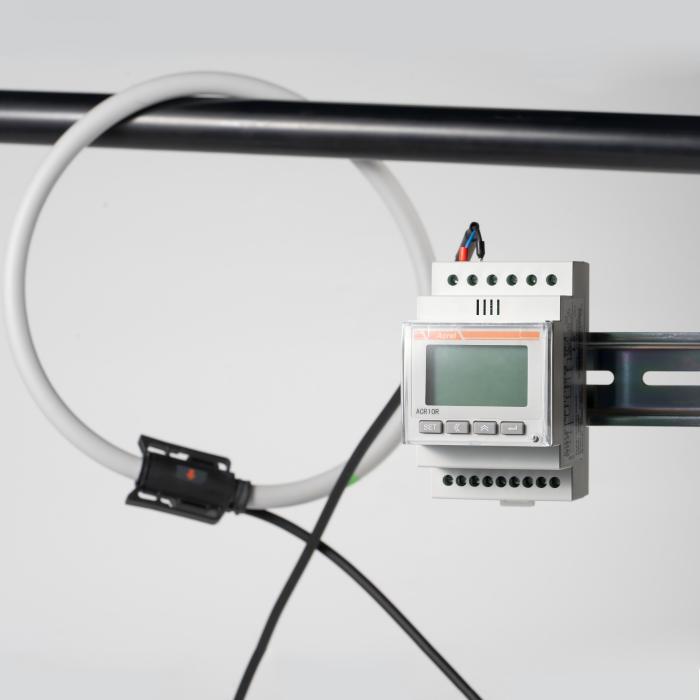

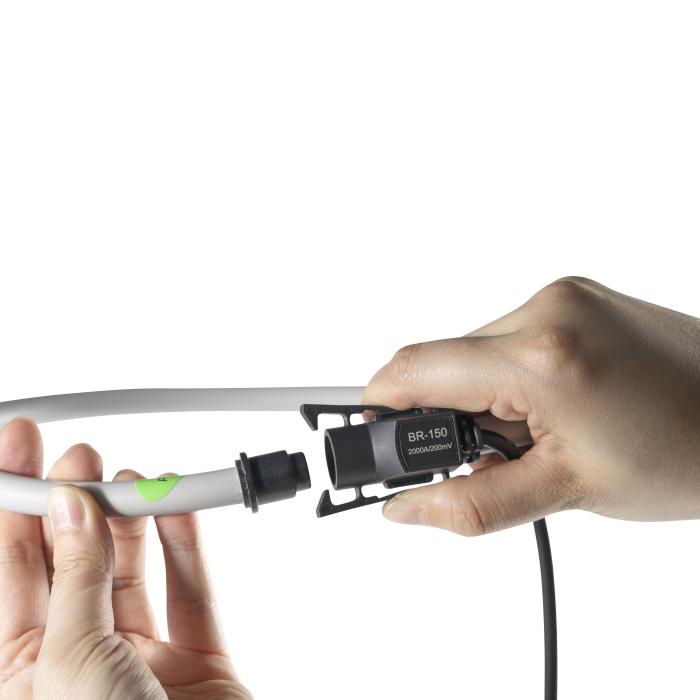

3. Installation:
Note: Before installing the Rogowski CT into monitoring circuits, youshould firstconnect the Rogowski CTwith the paired power meter.

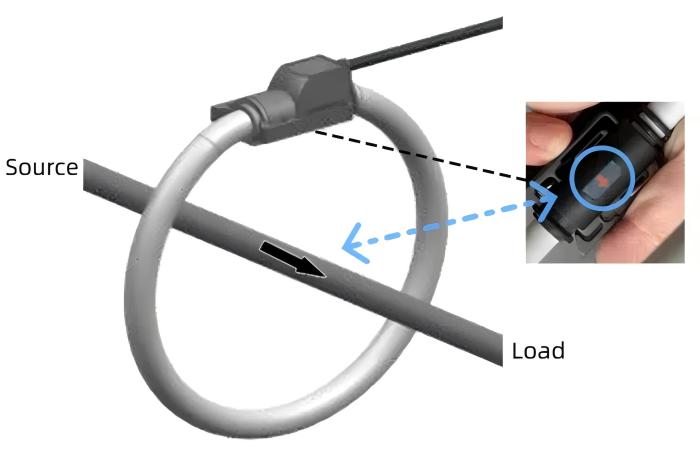

The direction the arrow points should be in accordance with the actual direct current direction.
