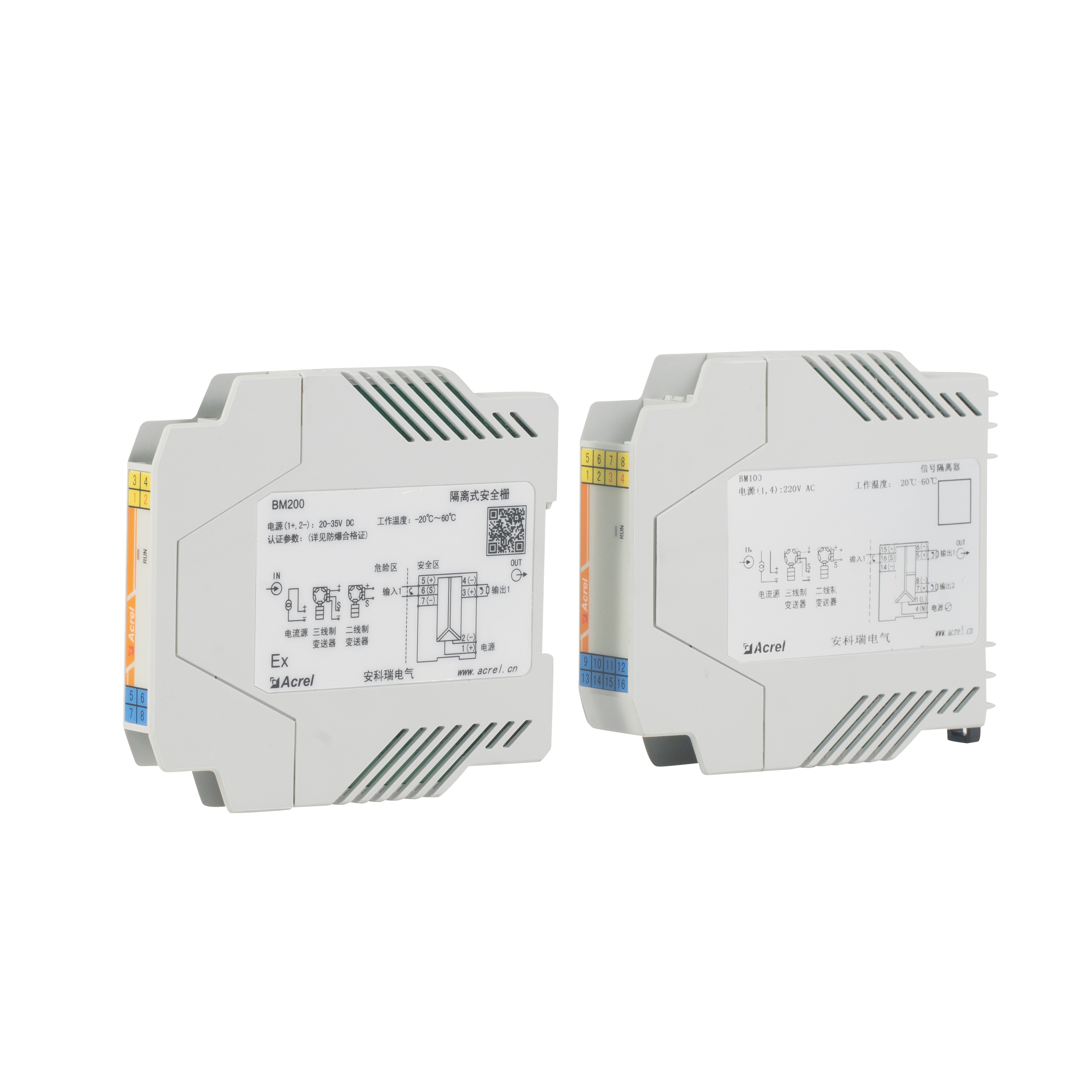

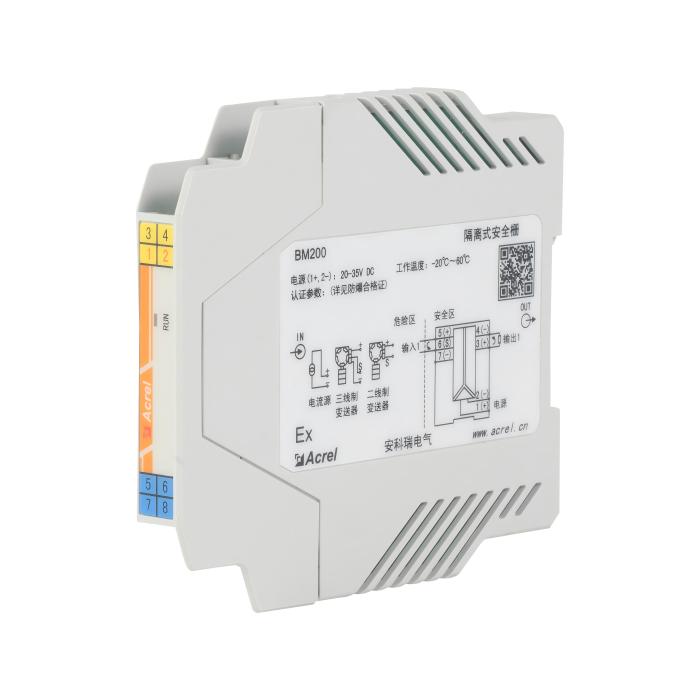

BM200-DI/I Current Analog Signal Isolator
Main Features：
• Rated input: DC 4-20mA/0-20mA; DC 0-5V/0-10V; DC 0-10V/2-10V;
• Rated output: DC 4-20mA/0-20mA; DC 0-5V/0-10V; DC 0-10V/2-10V;
• Power supply: DC 20-35V;
• Accuracy: Class 0.2;
• Application: Matched with PLC for Industrial Automation; Used for measurement;
• Standard and certificate: Explosion-proof certificate;
- Details
- Parameters
- Documents
1. General：
BM200 series isolation safety barrier provides power to the transmitter in the hazardous area. The current signal generated by the transmitter is isolated and converted into a corresponding linear current or voltage signal and sent to the safe area. This product requires an independent power supply, input/output/power supplyisolation. It can be used in two-wire and three-wire transmitter equipment with current source. BM200 improves the intrinsic safety and explosion-proof performance of the system, increases the anti-interference ability of the system, and improves the reliability of system operation.
2. Types:
|
Types |
Input signal |
Output signal |
|
BM200-DI/I-B11 BM200-DI/I-C12 BM200-DI/I-C22
|
DC 0-20mA/4-20mA(Distribution voltage≥14V/20mA) |
DC 0-20mA/4-20mA; |
|
BM200-DV/I-B11 BM200-DV/V-B11 BM200-DV/I-C22 BM200-DV/V-C22 |
DC 0-5V/1-5V; DC 0-10V/2-10V(Distribution voltage≥10V/20mA) |
DC 0-20mA/4-20mA; DC 0-5V/0-10V; DC 0-10V/2-10V |
|
BM200-TR/I-B11 BM200-TR/V-B11 BM200-TR/I-C12 BM200-TR/V-C12 BM200-TR/I-C22 BM200-TR/V-C22
|
PT100(Minimum measuring range 50℃, supports two-wire system and three-wire system) |
DC 0-20mA/4-20mA; DC 0-5V/0-10V; DC 0-10V/2-10V |
|
BM200-VR/I-B11 BM200-VR/V-B11 BM200-VR/I-C12 BM200-VR/V-C12 BM200-VR/I-C22 BM200-VR/V-C22 |
DC 0-20mA/4-20mA(Minimum range 1KΩ, supports two-wire system and three-wire system) |
DC 0-20mA/4-20mA; DC 0-5V/0-10V; DC 0-10V/2-10V |
3. Dimension:

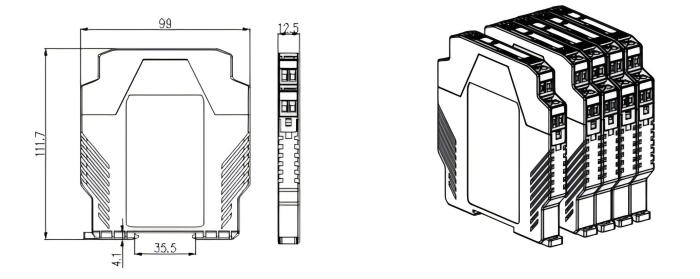

BM200-DI/I-B11 shell dimension:

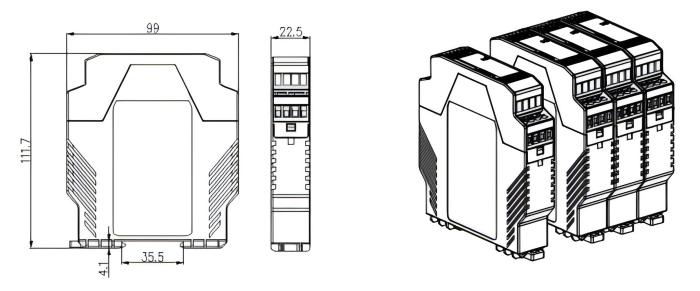

BM200-DI/I-B12, BM200-DI/I-C22 shell dimension:

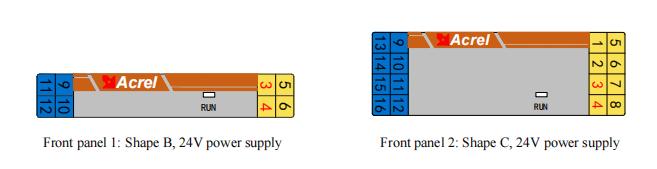

4. Front Panel:
5. Alambrado:

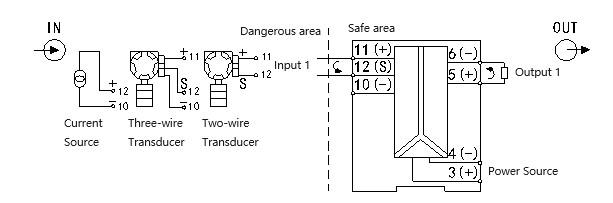

BM200-DI/I-B11:

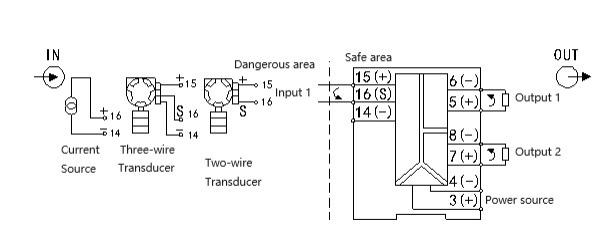

BM200-DI/I-C12:
