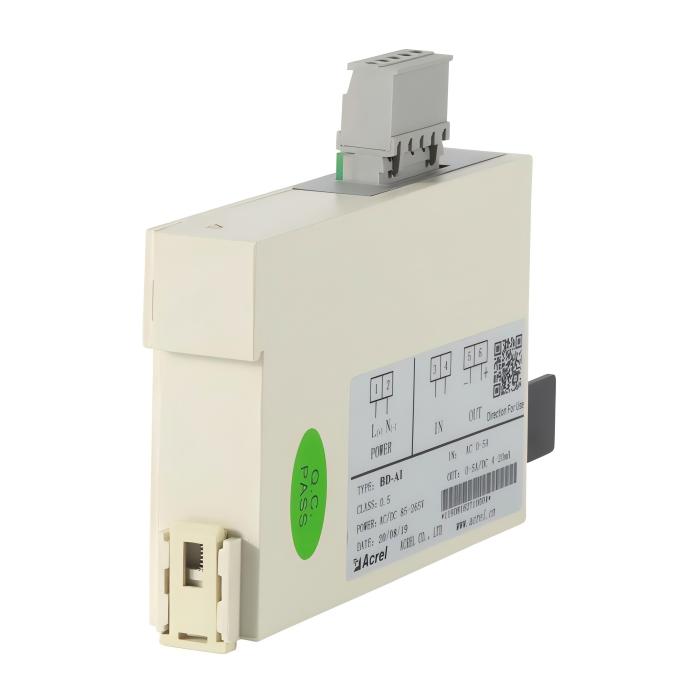

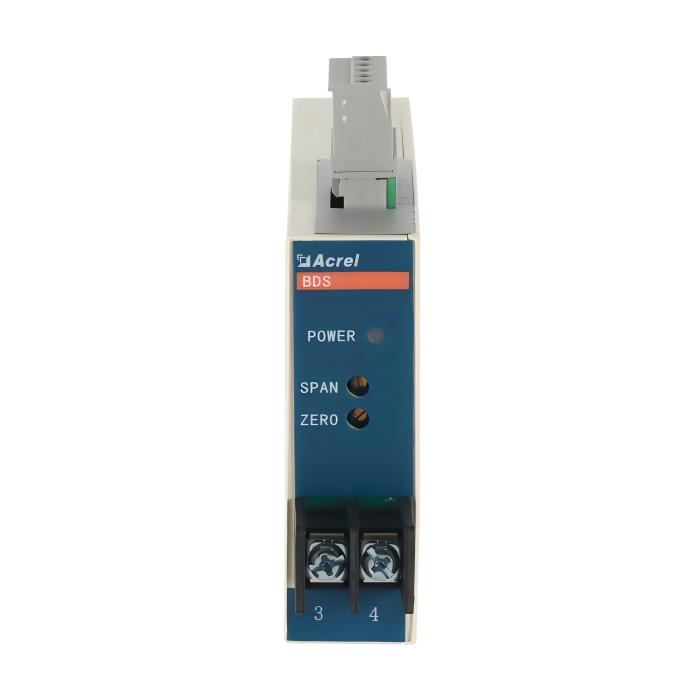

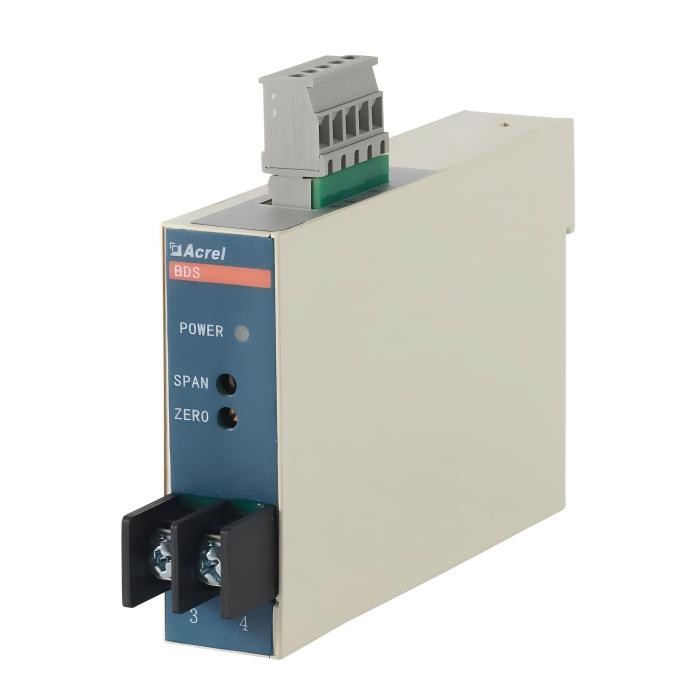

BD-AI Single&Three Phase Current Transducer
Características principales：
• Rated input: AC 0-1A, 0-5A;
• Rated output: DC 0-5V / 4-20mA;
• Power supply: DC 24V/48V, DC 100-350V, AC 85-265V;
• Accuracy: Class 0.5;
• Additional functions: C-RS485; T-True RMS;
• Application: Paired with PLC for industrial automation; used for measurement;
• Standard and certificate: CE;
- Details
- Parameters
- Documents
1. General：
BD Electrical Transducer can isolate and transmit electrical parameters, such as current, voltage, frequency, power, power factor, into a linear DC analog or digital signal, and can be connected with PLC, analog acquisition card, frequency converter, meter power meter and electric energy meter, and also supports all kinds of acquisition equipment and systems, such as electric quantity recorders and DCS, covering almost all industrial control equipment.
2. Types:
|
Type |
Measurement |
Input signal |
Output signal |
Power supply |
Wiring |
|
BD-AI |
AC Single phase current |
AC 0-1A/0-5A |
DC 0-20mA/4-20mA; DC 0-5V/0-10V; RS485 Modubus-rtu |
DC 24V/48V; DC 100-350V;AC 85-265V |
Single phase 2 wires |
|
BD-AI2 |
AC Single phase current |
AC 0-1A/0-5A |
DC 0-20mA/4-20mA; DC 0-5V/0-10V |
DC 24V/48V; DC 100-350V; AC 85-265V |
Single phase 2 wires |
|
BD-3I3 |
AC Three phase current |
AC 0-1A/0-5A |
DC 0-20mA/4-20mA; DC 0-5V/0-10V |
DC 24V/48V; DC 100-350V; AC 85-265V |
Three phase 4 wires |
|
BD-DI |
DC Current |
DC 0-20mA/4-20mA |
DC 0-20mA/4-20mA; DC 0-5V/0-10V |
DC 24V/48V; DC 100-350V; AC 85-265V |
Single phase 2 wires |
3. Dimension:
4. Wiring:

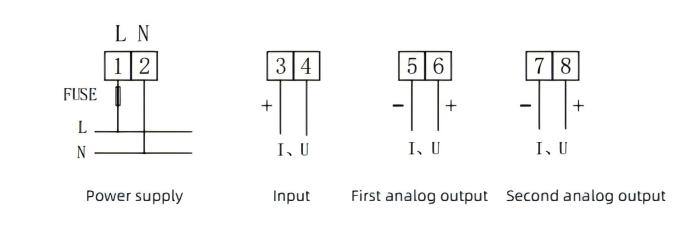

Terminals of BD-AI/AV:
Terminals of BD-AI2:
