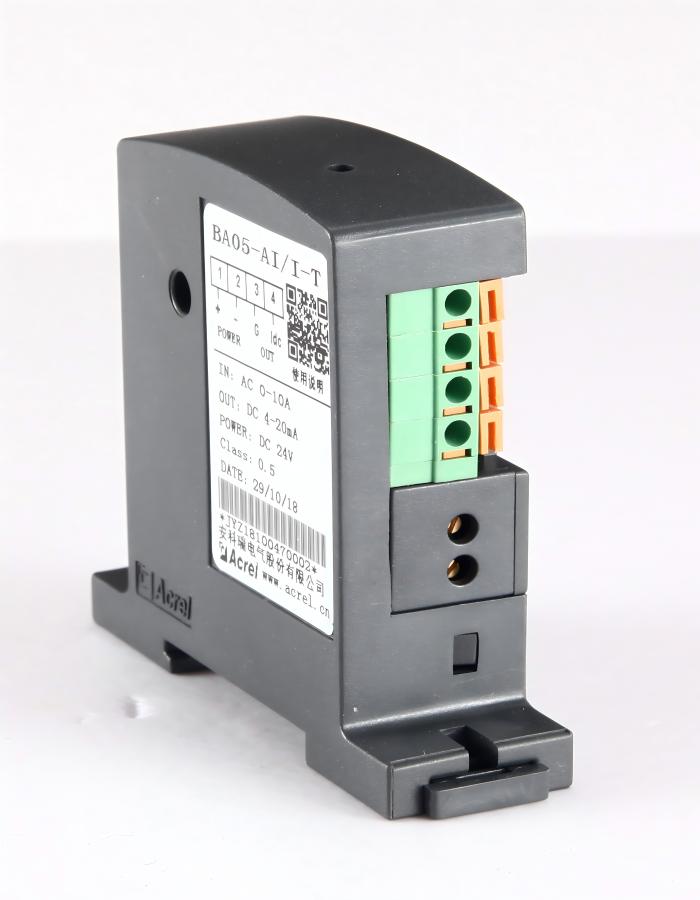

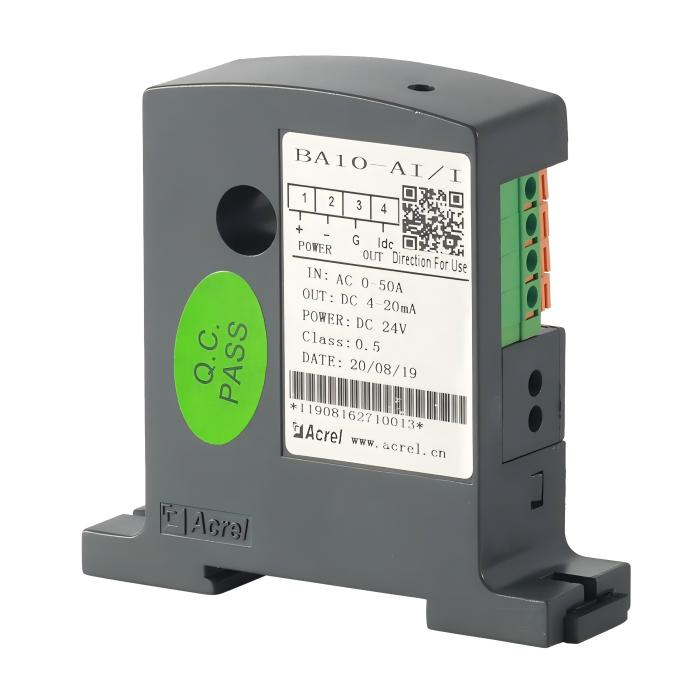

BA AC Current Transducer with DC Output 4-20mA/0-5V
Main Features：
• Rated input: AC 0-10A; AC 0-50A; AC 0-200A; AC 0-600A;
• Rated output: DC 0-20mA/4-20mA; DC 0-2V/1-5V;
• Power supply: DC 24V/12V; AC/DC 85-265V;
• Accuracy: Class 0.5;
• Communication: RS485;
• Additional functions: T-True RMS;
• Application: Industrial automation;
• Standard and certificate: CE;
- Details
- Parameters
- Documents
1. General：
BA series products use electromagnetic induction principle to real-time measure the alternating current in the grid, adopt precise linear compensation and constant current technology to convert its isolation into standard DC signal output. With features of 24V or 12V safe voltage, high overload capacity, high precision, high isolation, high safety, low power consumption, etc., so they are widely used in the field of industrial automation.
2. Types:
|
Type |
Input Current |
Output |
Diameter(mm) |
|
BA05-AI/I(V) |
AC 0~(0.5~10)A |
DC 0-20mA/4-20mA; DC 0-5V/0-10V; RS485 Modubus-rtu |
Φ5 |
|
BA10-AI/I(V) |
AC 0~(8~50)A |
Φ10 |
|
|
BA20-AI/I(V) |
AC 0~(40~200)A |
Φ20 |
|
|

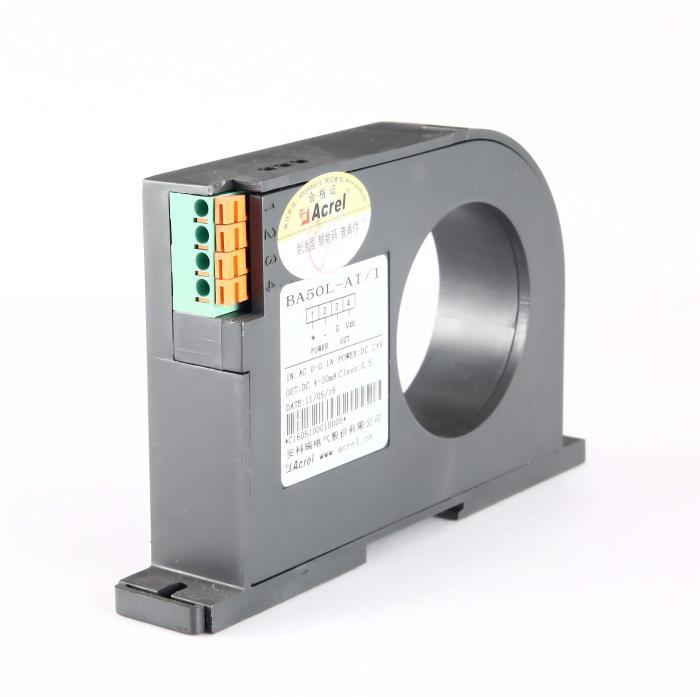

BA50-AI/I(V) |
AC 0~(60~600)A |
Φ50 |

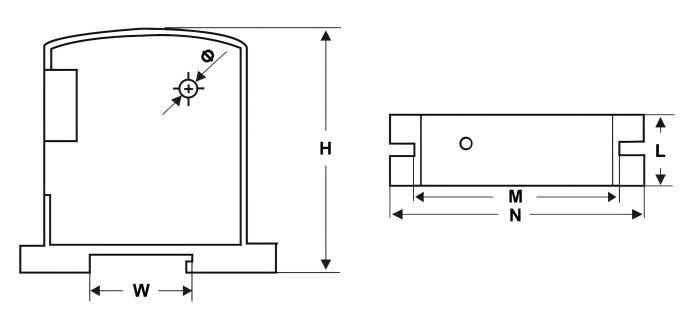

3. Dimension:
|
Type |
Outline size (mm) |
|||||
|
W |
H |
Φ |
M |
N |
L |
|
|
BA05-AI/I(V) |
35 |
69 |
5 |
62.5 |
76 |
22.5 |
|
BA10-AI/I(V) |
35 |
74 |
9.5 |
62.5 |
76 |
22.5 |
|
Type |
Outline sizeo (mm) |
|||||
|
W |
H |
Φ |
M |
N |
L |
|
|
BA20-AI/I(V) |
35 |
60 |
21 |
93 |
102 |
24 |
|
BA50-AI/I(V) |
35 |
84 |
50 |
125 |
135 |
24 |

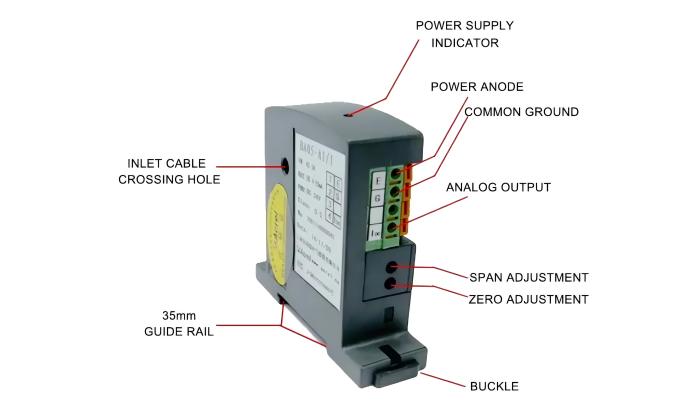

4. Terminals and Wiring:

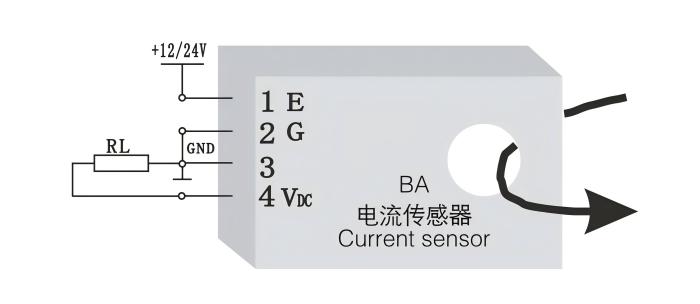

Wiring of Transducer with Current Output:
Wiring of Transducer with Voltage Output:
