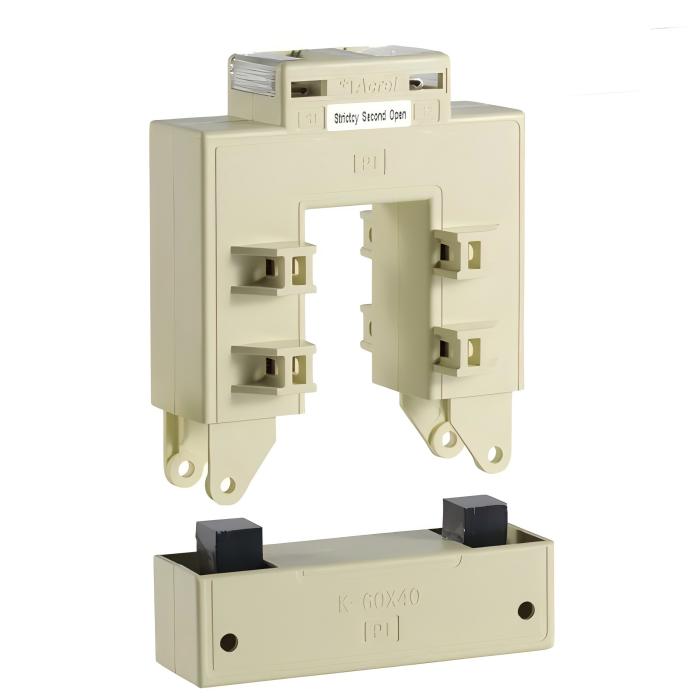

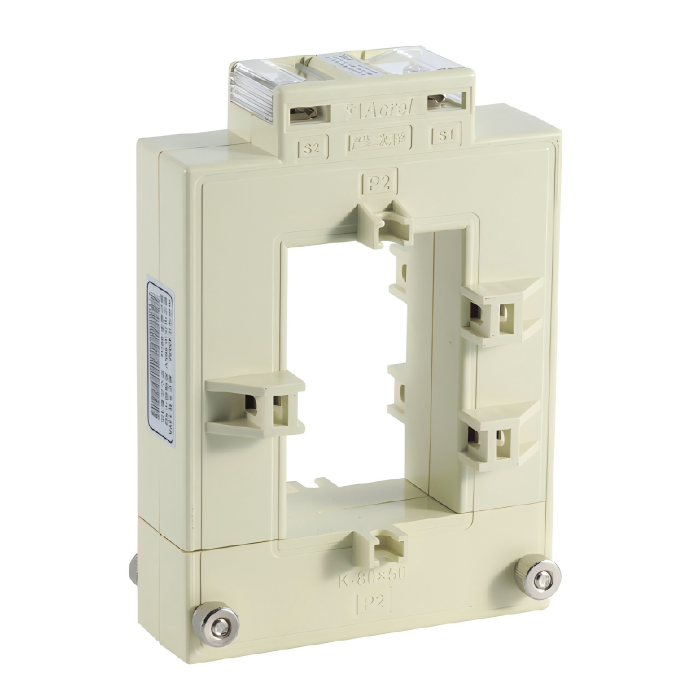

AKH-0.66/K Split Core Current Transformer Square Type
Main Features：
• Install without turning off the electricity;
• Rated voltage: 660V AC;
• Accuracy: Class 0.2/0.5;
• Suitable for electricity renovation project;
• Used in conjunction with metering, dosing and relay protection equipment
• Standard and Certificate: CE;
- Details
- Parameters
- Documents
1.General：
AKH-0.66/K series split current transformers are mainly used in urban and rural power grid renovation projects. They are easy to install. There is no need to remove the primary busbar and can be powered to avoid affecting normal power consumption. It saves manpower, material and financial resources for users and improves efficiency. This series of products is used in conjunction with metering, measurement and relay protection equipment..

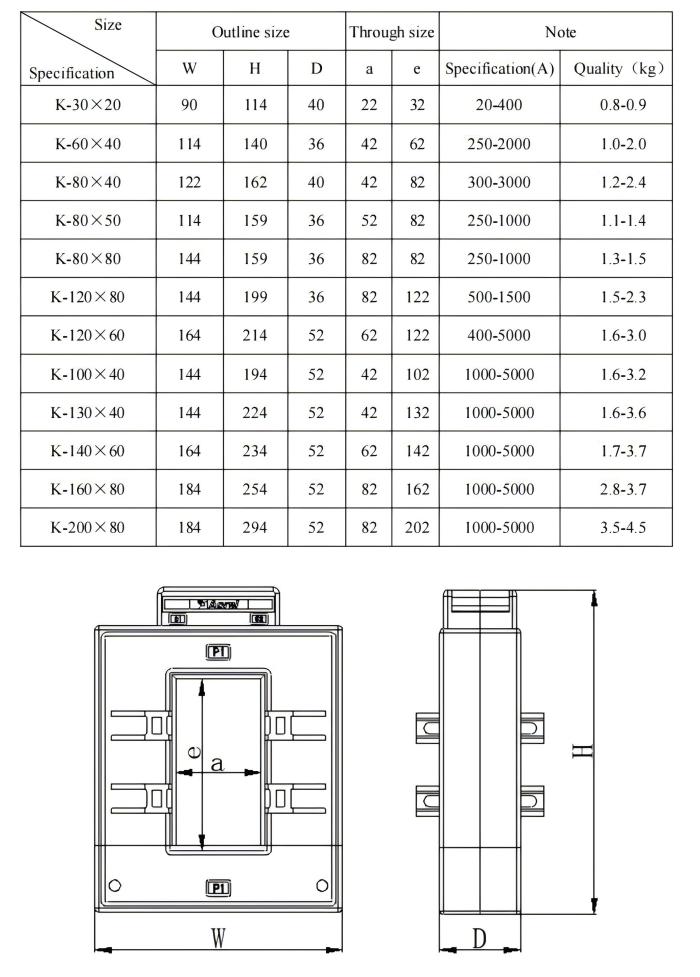

2. Dimensions:
3. Specification:
|
Type |
Current ratio (A) |
Precision class |
Rated load(VA) |
|
K-30×20 |
20-75/1A |
1 |
0.2 |
|
100-150/5(1)A |
1 |
1 |
|
|
200/5(1)A |
1 |
1.5 |
|
|
250-300/5(1)A |
0.5 |
1.5 |
|
|
350-400/5(1)A |
0.5 |
2.5 |
|
|
K-60×40 |
250-300/5(1)A |
1 |
1.5 |
|
350-450/5(1)A |
0.5 |
1.5 |
|
|
500-800/5(1)A |
0.5 |
2.5 |
|
|
1000-1250/5(1)A |
0.5 |
5 |
|
|
1500-2000/5(1)A |
0.5 |
10 |
|
|
K-80×40 |
300/5(1)A |
1 |
1.5 |
|
350-450/5(1)A |
0.5 |
2.5 |
|
|
500-800/5(1)A |
0.5 |
5.0 |
|
|
1000-2000/5(1)A |
0.5 |
10 |
|
|
2500/5(1)A |
0.2 |
10 |
|
|
K-80×50 |
250-300/5(1)A |
1 |
1.5 |
|
400-450/5(1)A |
0.5 |
1.5 |
|
|
500-800/5(1)A |
0.5 |
2.5 |
|
|
1000/5(1)A |
0.5 |
5 |
|
|
K-80×80 |
250-300/5(1)A |
1 |
1.5 |
|
400-450/5(1)A |
0.5 |
1.5 |
|
|
500-800/5(1)A |
0.5 |
2.5 |
|
|
1000/5(1)A |
0.5 |
5 |
|
|
K-100×40 |
1000-2000/5(1)A |
0.5 |
10 |
|
2500-3000/5(1)A |
0.2 |
10 |
|
|
4000A/5(1)A |
0.2 |
15 |
|
|
K-120×60 |
400-450/5(1)A |
0.5 |
2.5 |
|
500-800/5(1)A |
0.5 |
5.0 |
|
|
1000-2000/5(1)A |
0.5 |
10 |
|
|
2500-4000/5(1)A |
0.2 |
10 |
|
|
K-120×80 |
500-800/5(1)A |
0.5 |
2.5 |
|
1000-1200/5(1)A |
0.5 |
5 |
|
|
1250-1500/5(1)A |
0.5 |
7.5 |
|
|
K-130×40 |
1000-2000/5(1)A |
0.5 |
10 |
|
2500-4000/5(1)A |
0.2 |
10 |
|
|
K-130×50 |
1000-2000/5(1)A |
0.5 |
10 |
|
2500-3000/5(1)A |
0.2 |
10 |
|
|
4000-5000/5(1)A |
0.2 |
15 |
|
|
K-130×60 |
1000-2000/5(1)A |
0.5 |
10 |
|
2500-5000/5(1)A |
0.2 |
15 |
|
|
K-140×60 |
1000-2000/5(1)A |
0.5 |
10 |
|
2500-3000/5(1)A |
0.2 |
10 |
|
|
4000-5000/5(1)A |
0.2 |
15 |
|
|
K-160×80 |
1000-2000/5(1)A |
0.5 |
10 |
|
2500-3000/5(1)A |
0.2 |
10 |
|
|
4000-5000/5(1)A |
0.2 |
15 |
|
|
K-200×80 |
1000-2000/5(1)A |
0.5 |
10 |
|
2500-3000/5(1)A |
0.2 |
10 |
|
|
4000-5000/5(1)A |
0.2 |
15 |

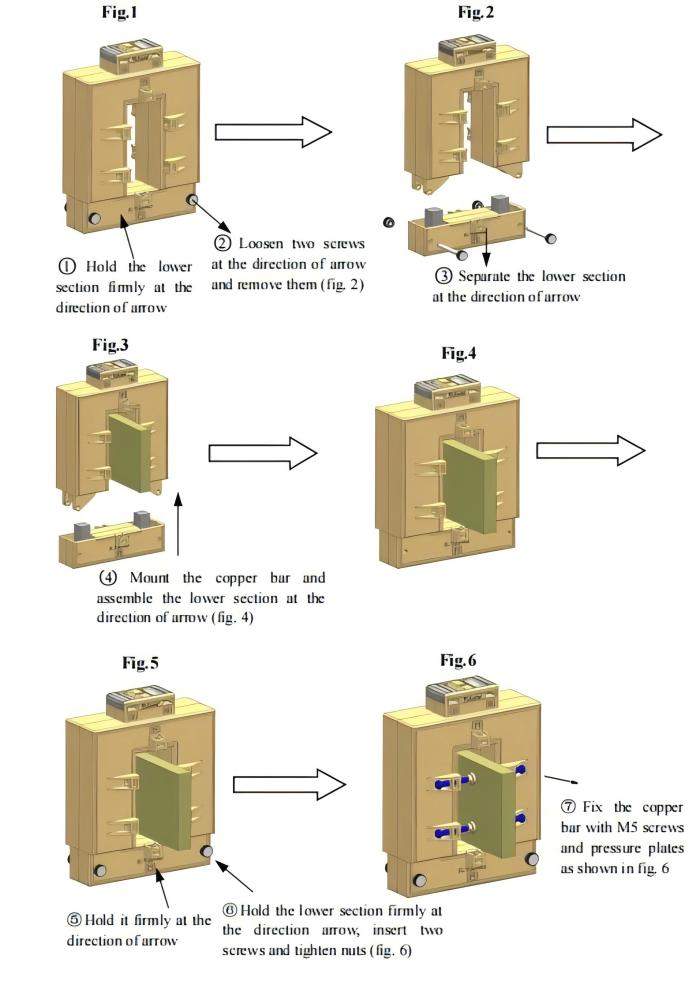

4. Installation:
