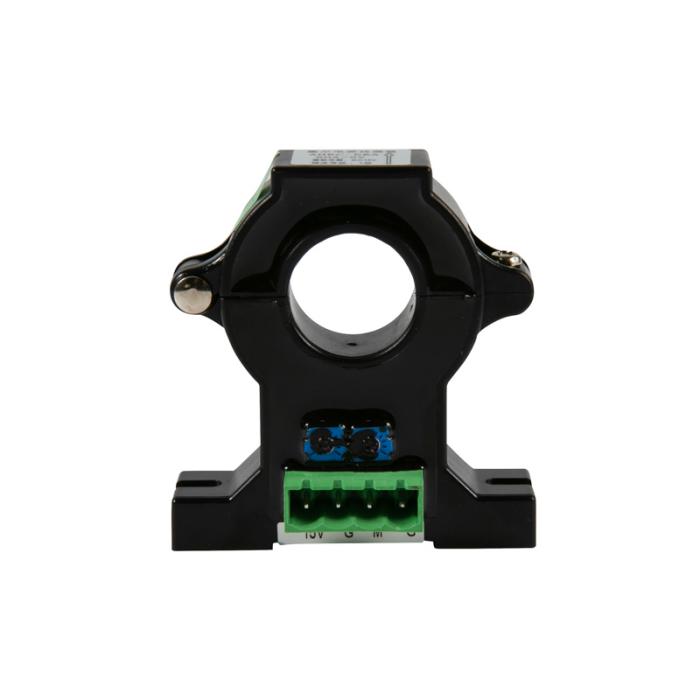

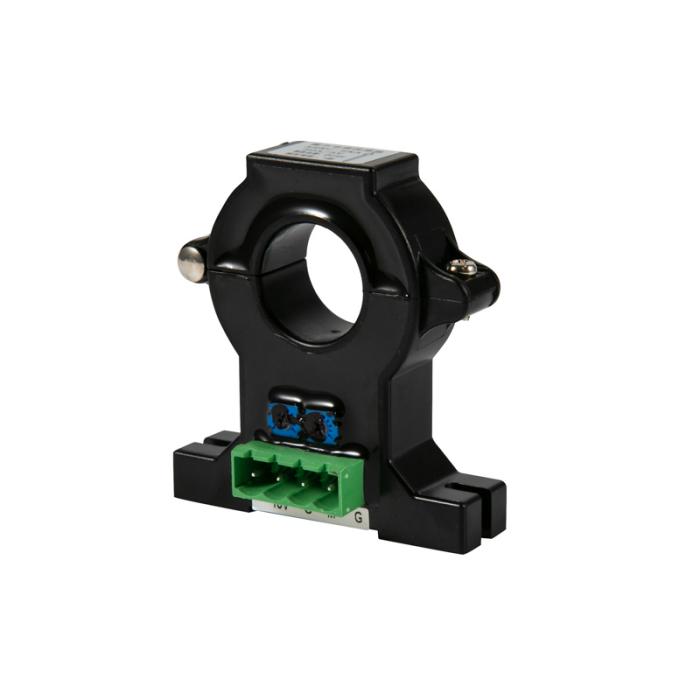

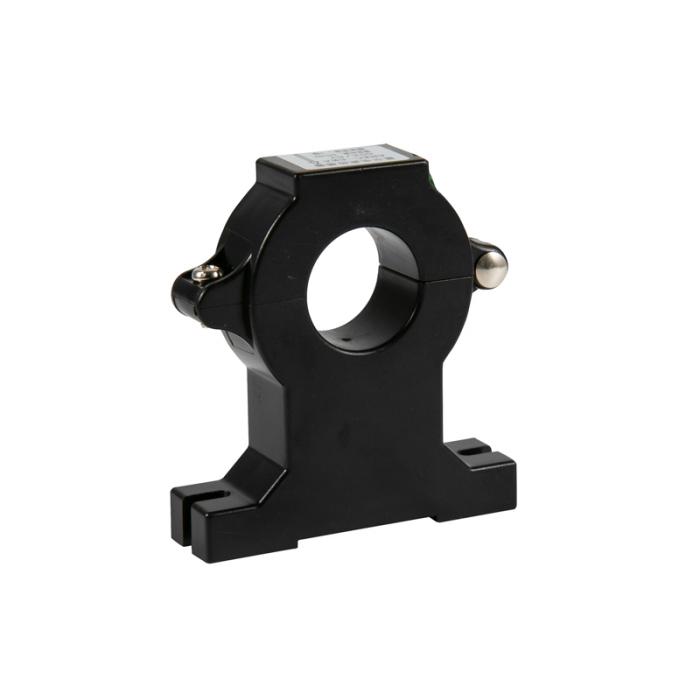

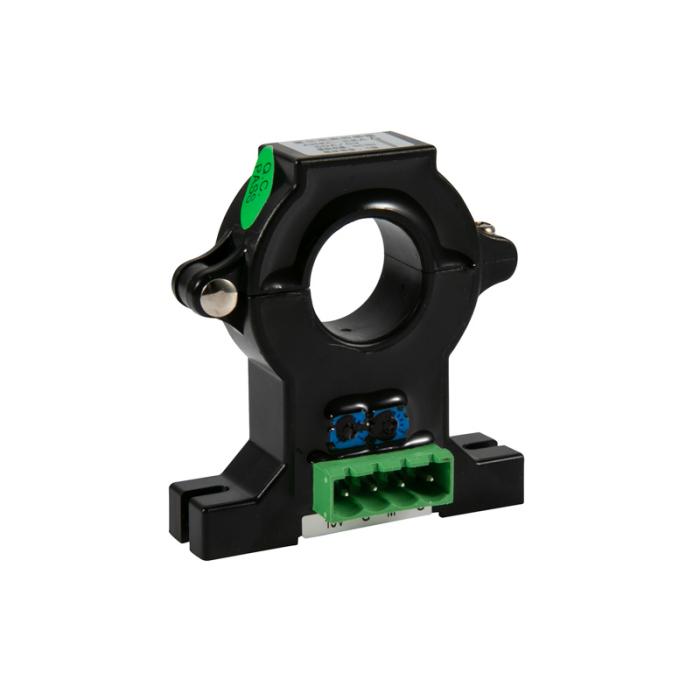

AHKC-EKA Open Loop Hall Effect Current Sensor
Main features：
• Rated input: DC/AC 0~(50~500)A;
• Rated output: DC ±5/±4V;
• Aperture: φ20mm;
• Power supply: DC ±12~±15V;
• Accuracy: Class 1.0;
• Application: Industrial controls; Energy and automation; Automotive; Railway;
• Standard and certificate: CE; IEC; LVD;
- Details
- Parameters
- Documents
1.General：
It is insulator between primary and secondary grade of AHKC-EKA series current sensor which can be used to measure direct current, alternating current and pulse current.

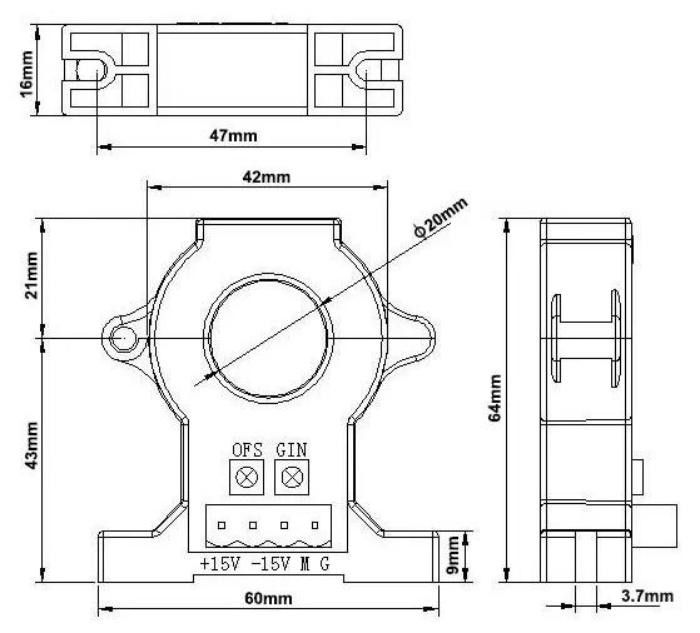

2. Dimension:
3. Terminals:

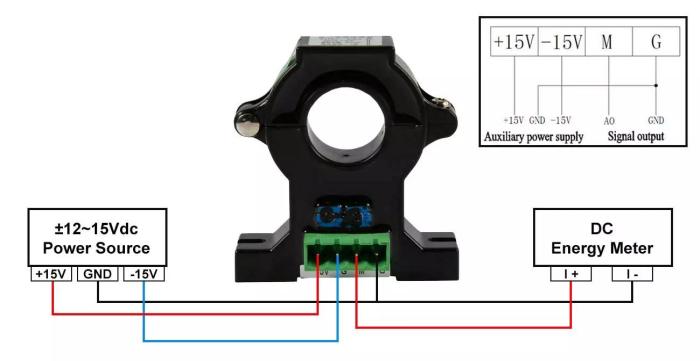

4. Alambrado:
