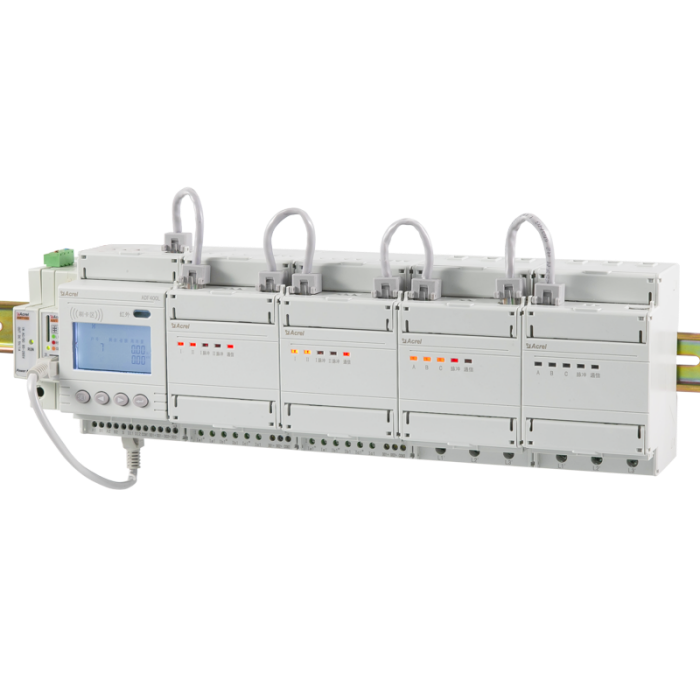

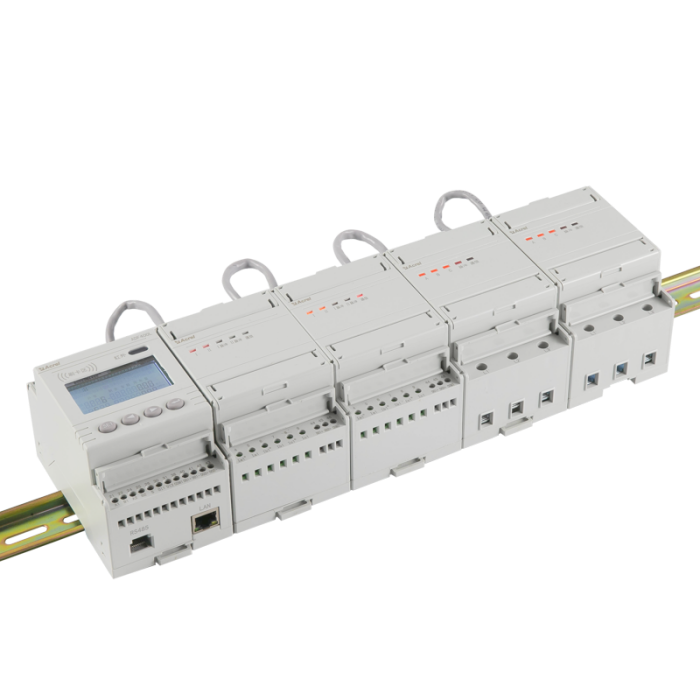

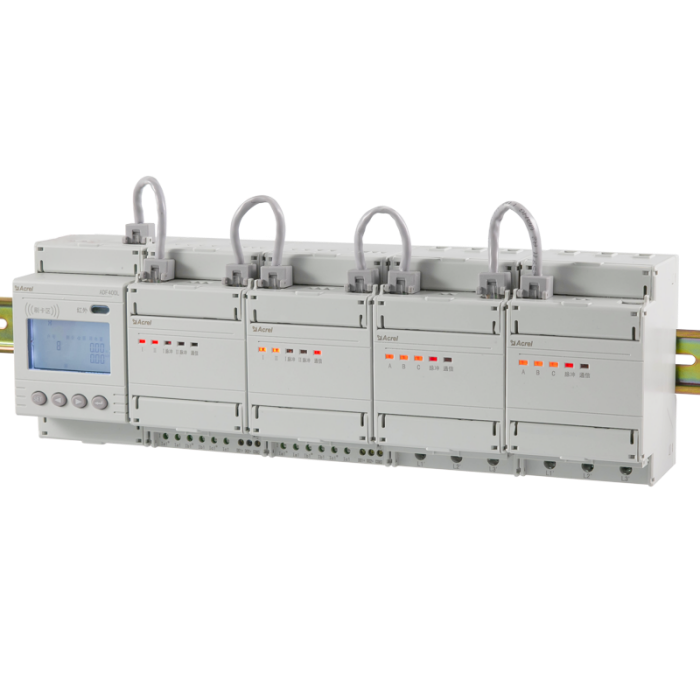

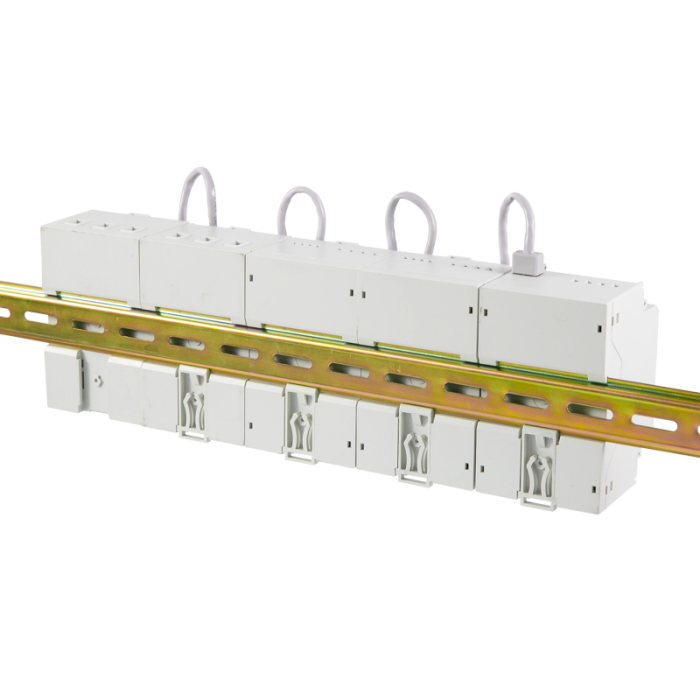

ADF400L Multi-circuit Prepaid Din Rail Energy Meter

< >

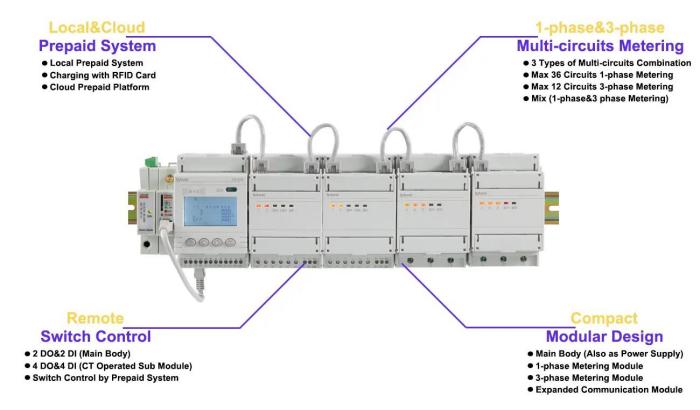

Main features：

• Application: Prepaid and Postpaid (See about Acrel Prepaid Solution);

• Monitoring: Up to 36 single-phase circuits or 12 three-phase or mixed circuits;

• Rated voltage: 3x220/380V(50Hz);

• Rated current: 80A AC(direct connection); 3x1(6)A AC (via CT);

• Communication (main Body): RS485 (MODBUS-RTU); Ethernet; Infrared;

• Communication (extended): 4G; Wifi; lora;

• Remote control: DO&DI;

• Standard and certificate: CE;

Get A Quote

Details
Parameters
Documents

1. General：

The ADF400L series multi-user energy meter can achieve up to 12 three-phase or 36 single-phase direct access measurements through a combination of modules, or 12 three-phase inductor access measurements, or a combination of direct access and transformer access. This series of electric energy meters is preferred by communities, schools, companies, etc. Due to its high precision, centralized installation, centralized management, high installation flexibility and non-interference. This series of meters supports prepaid functions.

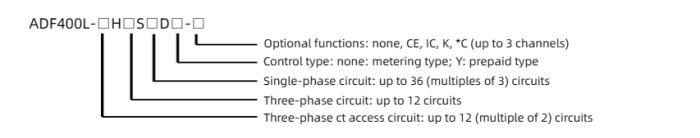

2. Model selection:

3. Functions:

4. Dimension：

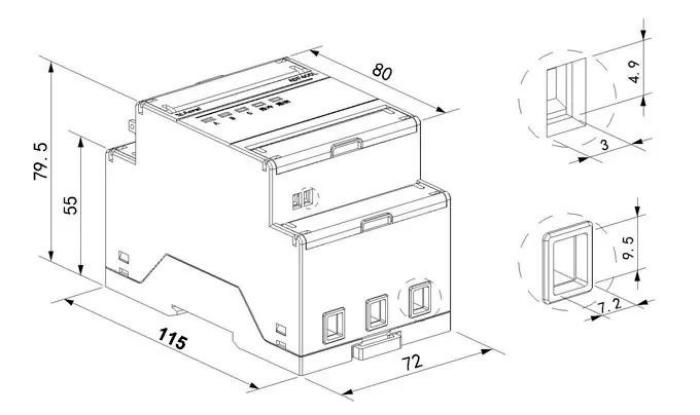

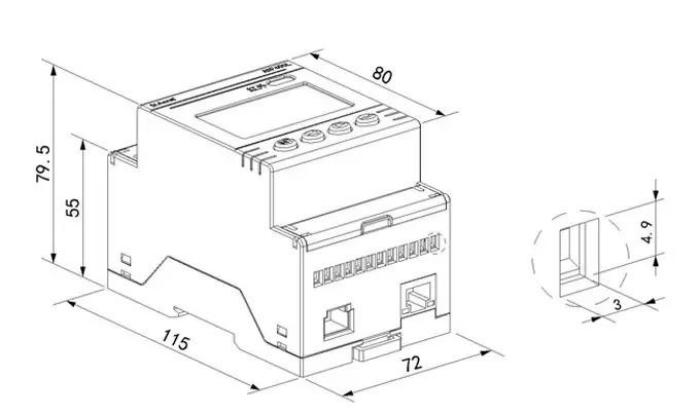

Main body dimension:

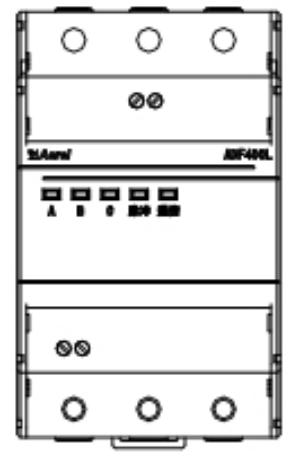

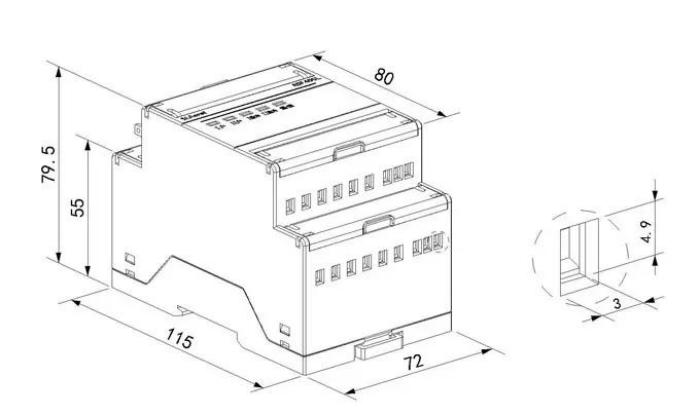

Direct access module dimension:

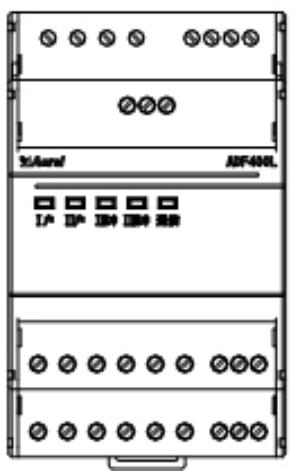

Secondary access module dimension:

5. Module functions:

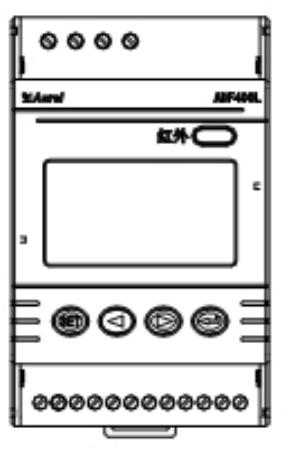

Main body：

1. Three-phase 3*220/380V power supply to provide working power for the back-end measurement module;

2. Man-machine interface: LCD and button programming;

3. Infrared communication;

4. RF card swiping (IC function);

5. 2 RS485 network communication (*C function);

6. RS485 communication for No.3 extended wireless module (RJ45 connection mode);

7. Up to 2DI/2DO (K function);

8. Up to 1 Ethernet communication (CE function);

Direct access measurement module:

1. Can realize 1-way three-phase 3*10(80)A measurement or 3-way single-phase 10(80)A measurement;

2. 1-way active energy pulse output;

3. Three-phase working status, pulse and communication status LED indication;

Secondary access metering module:

1. Able to realize 2-way three-phase 3*1 (6)A measurement;

2. 2-way active energy pulse output;

3. 2-way three-phase working status, pulse and communication status LED indication;

4. Maximum 2DI/4DO functions, active DI (K function);

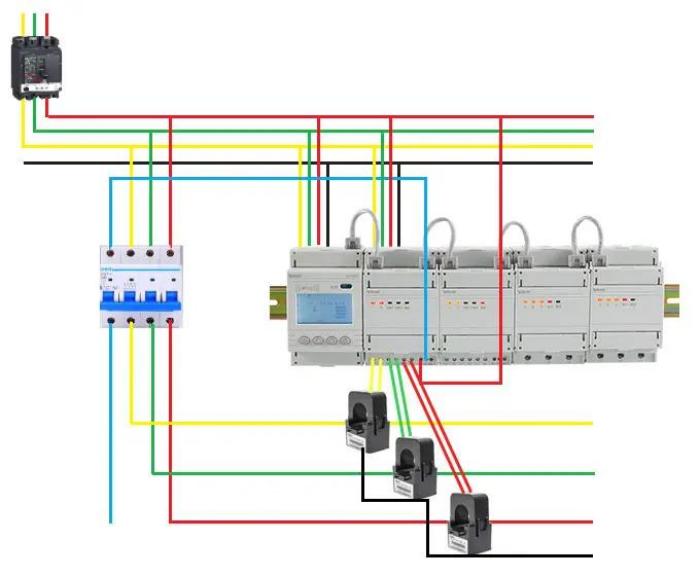

6. Wiring:

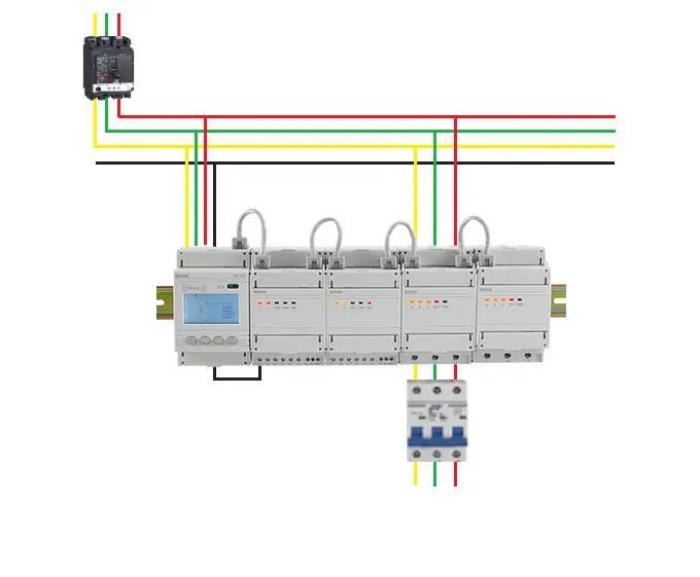

Connection with direct access modules:

Connection with secondary access modules:

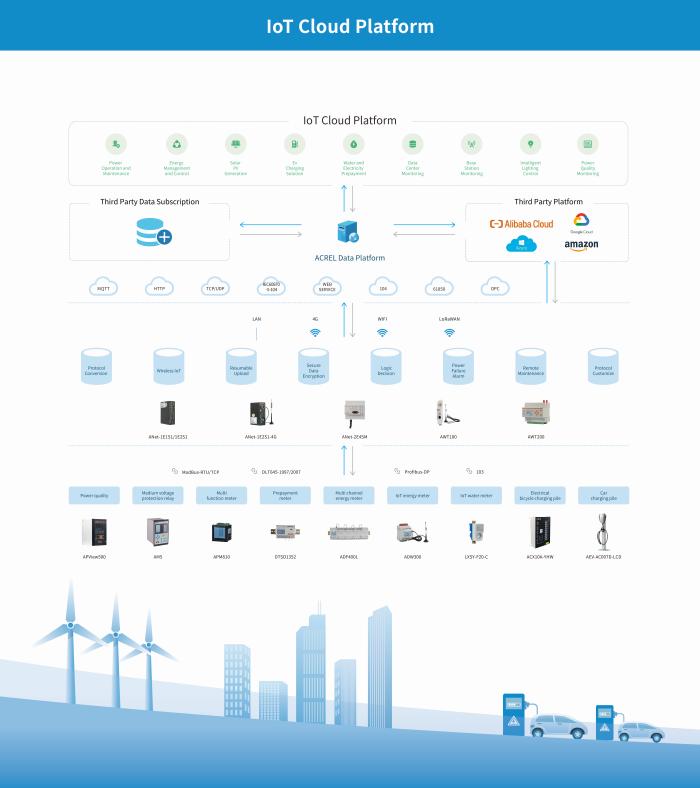

7. Network:

1. Prepaid type:

Features	Functiondescription
Energy metering	Total active energy, forward and reverse active energy, multi-rate active energy measurement
Electricity measurement	U, I
Electricity measurement	P, Q, S, F, PF
LCD display	8-digit segment LCD display, backlight display
Button programming	Key programmable communication, number of loops, single three-phase mode, external control mode and other parameters
Pulse output	Active pulse output
Multiple rate	Supports 4 time zones, 2 time periods, 14 daily time periods and 4 rates
Multiple rate	Date, time, day of the week
Main module communication	Infrared communication
Main module communication	Maximum 3 uplink communication channels: RS485 interface, support Modbus, DL/T645-07 at the same time
Prepaid agreement (remote, radio frequency card)	Cost control (including forward active power and reverse active power)
	Time control
	Negative control (identification of malignant load)
	Forced power off
Recharge registration	20

2. Measurement type:

Features	Functiondescription
Display method	LCD(Field)
Energy metering	Active energy metering(Forward and reverse), Reactive power measurement(Forward and reverse);
Electricity measurement	Voltage, current (zero sequence current), power factor, frequency, active power, reactive power, apparent power
Harmonic function	Total harmonic content, sub-harmonic content (2 ~31 times)
Three-phase unbalance	Voltage and current imbalance
DI/DO	2DI2DOMain module
DI/DO	The transformer is connected to the 2DI4DO slave module (directly connected to the slave module)
LED indication	Pulse light indication
Communication	Infrared communication
Communication	RS485 interface (main module) supports MODBUS protocol and DL/T645 protocol
Historic energy	Historic energyduaringlast12 months

3. Technical parameters:

Model Technical parameters		ADF400L-□H□S□D(Y)- □
Auxiliary power	Voltage	Fuente de alimentación trifásica 3*220V/380V (cuando se utiliza una fuente de alimentación monofásica, los terminales 1, 2 y 3 del medidor deben cortocircuitarse)
Auxiliary power	Power consumption	≤10W
Voltage input	Rated voltage	3×220/380V, 3×57.7/100V
Voltage input	Reference frequency	50Hz
Current input	Input Current	3×1(6)A(Instrument transformer access), 3×10 (80) (direct access)
Current input	Starting current	1‰Ib
Measuring performance	Measurement accuracy	0.5S class
Measuring performance	Clock accuracy	≤0.5s/d
Pulse	Pulse output	Each three-phase metering module has 1 active energy pulse
	Pulsewidth	80ms±20ms
	Pulse constant	3×1(6)A specification: 6400 imp/kWh
	Pulse constant	3×10(80)A specification: 400 imp/kWh
Switch value	Main module	Main module 2DI+2DO,Among them, DI is dry contact input
Switch value	Slave module	Transformer access slave module 4DI+4DO,Among them, DI is 220V wet contact input
Communication	Infrared interface	Infrared communication
	RS485 interface	MODBUS-RTU,DL/T 645-07
	Ethernet interface	Modbus-TCP,TCP/IP
Environment	Temperature	Operating temperature：-20℃ ~ +60℃; storage temperature：-30℃ ~ +70℃;
	Humidity	≤95%RH, No condensation, no corrosive gas place
	Altitude	≤2000m
